Package contents
The FortiGate-800 package contains the following items:
• FortiGate-800 Antivirus Firewall
• one orange crossover ethernet cable
• one grey regular ethernet cable
• one RJ-45 serial cable
• one RJ-45 to DB-9 convertor
• one power cable
• two 19-inch rack mount brackets
• FortiGate-800 QuickStart Guide
• CD containing Fortinet user documentation

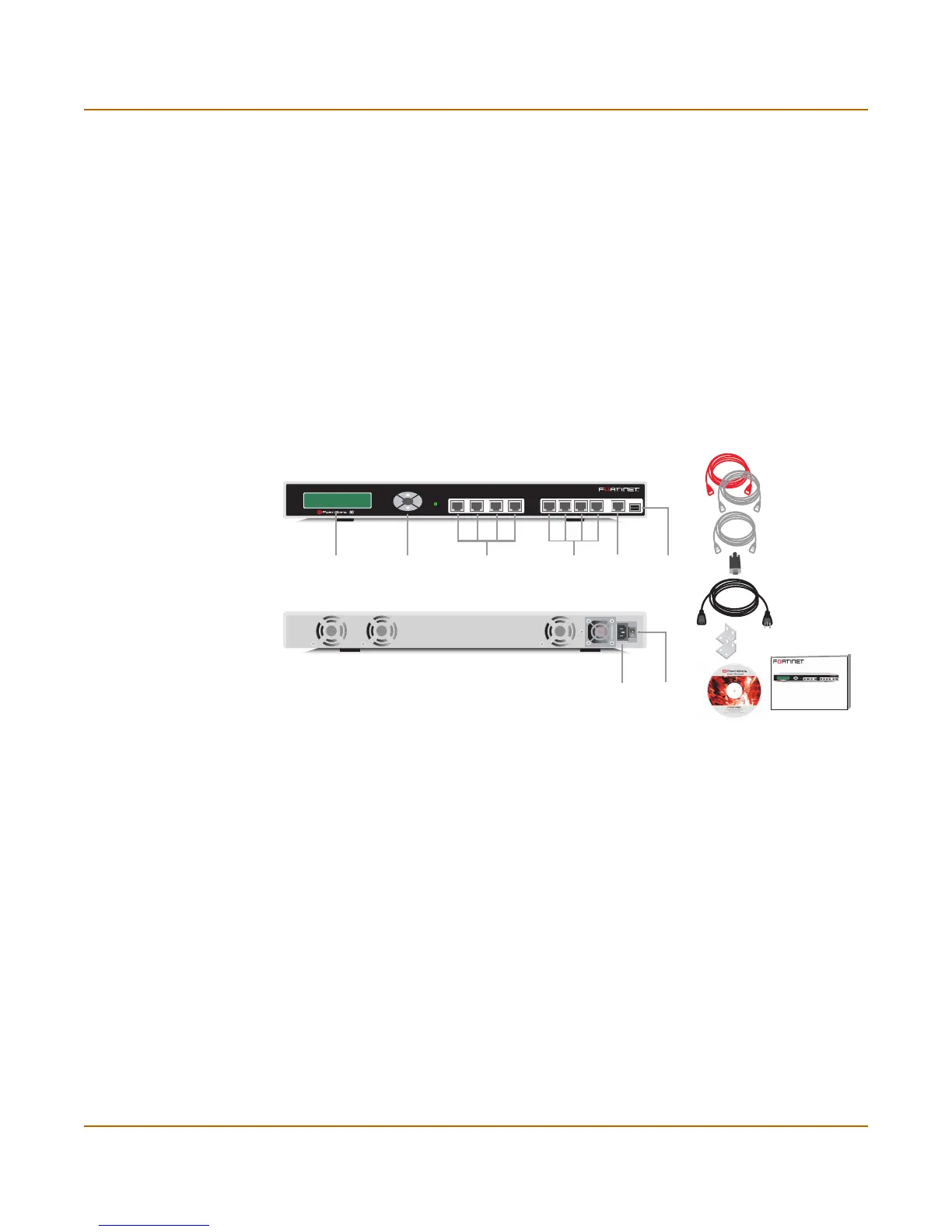

Figure 2: FortiGate-800 package contents
Mounting
The FortiGate-800 unit can be mounted in a standard 19-inch rack. It requires 1 U of
vertical space in the rack.
The FortiGate-800 unit can also be installed as a free-standing appliance on any
stable surface. For free-standing installation, make sure that the appliance has at least
1.5 in. (3.75 cm) of clearance on each side to allow for adequate air flow and cooling.
Dimensions
• 16.75 x 12 x 1.75 in. (42.7 x 30.5 x 4.5 cm)
Weight
• 10 lb. (4.5 kg)
Esc Enter
CONSOLE
INTERNAL EXTERNAL DMZ HA 123
4 USB
8
PWR
Front
1 to 4
Interface
LCD Control
Buttons
Internal,External,DMZ
HA Interface
Power
Connection
Serial
Port
Power
Switch
USB
(future)
Back
Power Cable
Rack-Mount Brackets
RJ-45 Serial Cable
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
Documentation
USER MANUAL
FortiGate-800
QuickStart Guide
