Step 5

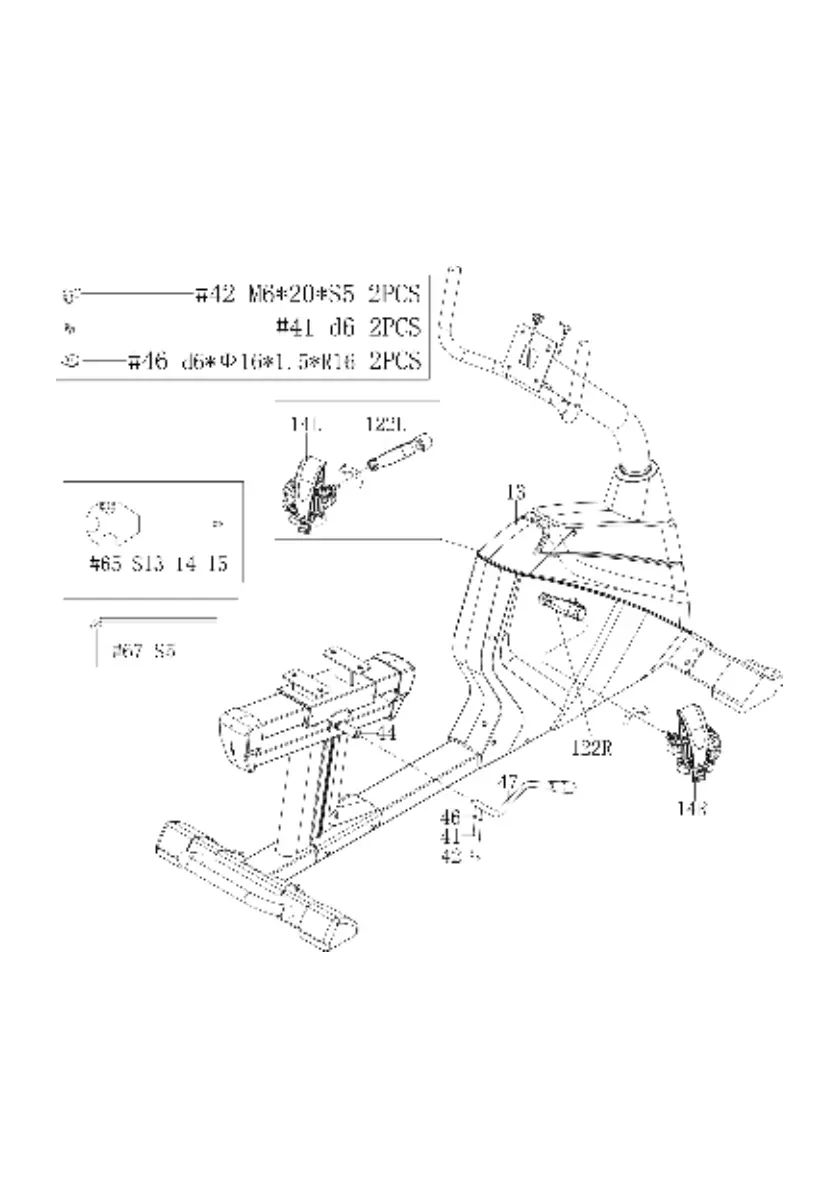

Use the Allen Wrench (67) to unscrew x2 Screws (42), x2 Washers (41) and x2 Arc Washers
(46) from the Adjustable Handle (47). Attach the Adjustable Handle (47) to the Adjustment
lever shaft (44) with the screws and washers you just took off the Adjustable Handle (47).
Use the Allen Wrench (67) to secure.
Attach the Pedal (14 L/R). First attach the left pedal (14L) and tightens counter-clockwise in
the Crank (122L), Then attach the right pedal (14R), it tightens clockwise in the Crank (122R).
Use the Wrench (65) to tighten the pedals.
