15

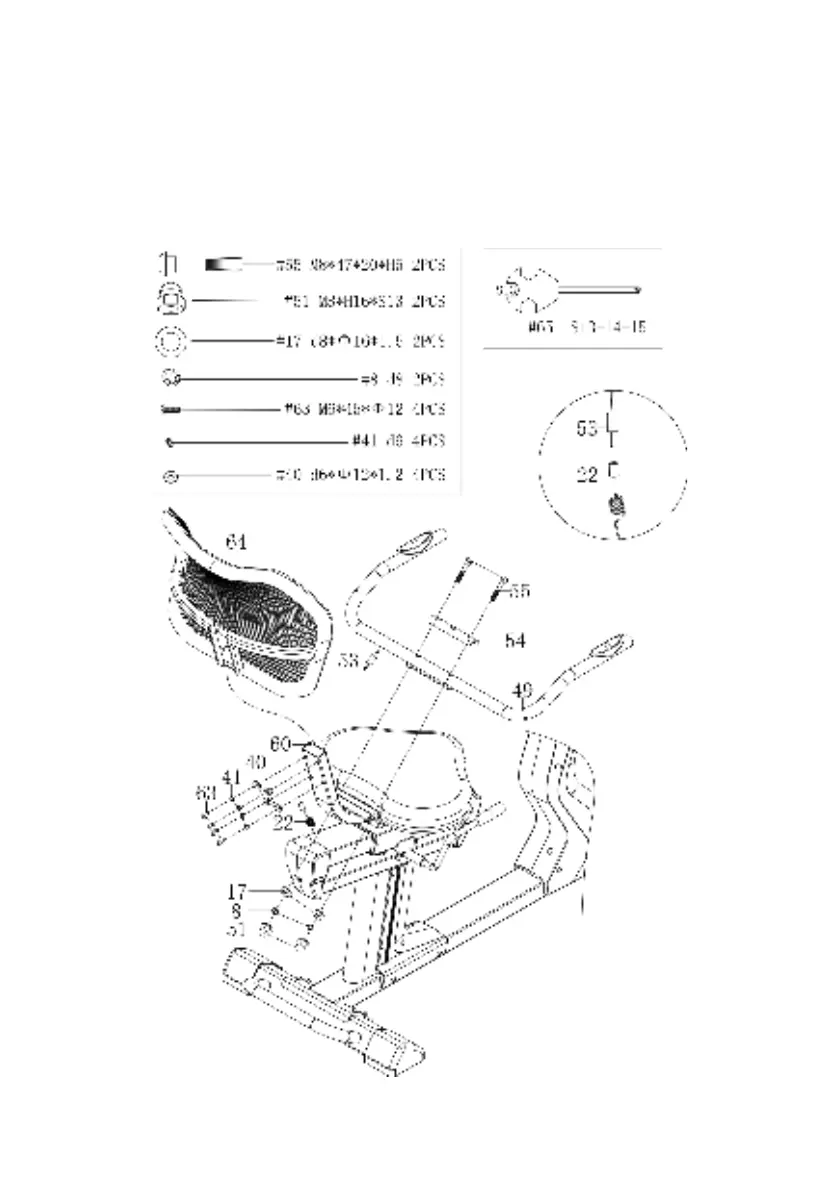

Step 7
Use the Wrench (65) to unscrew the x4 Screws (63), x4 Washers (41) and x4 Washers (40)
from the Back Pad (64). Attach the Back Pad (64) to the Seat Post (60) with 4 Screws (63),
x4 Washers (41) and x4 Washers (40). Secure with Wrench (65).
Attach the Handlebar (49) to the Seat Post (60) with x2 Bolts (55), x2 Washers (17), x2
Spring Washers (8), x2 Nuts (51) and Handlebar Cover (54). Then connect the Hand Pulse
Wire (53) to the Trunk Wire (22) coming out of the back of the Main Frame.
To Next Page
