TOTAL SHOCK TRAVEL

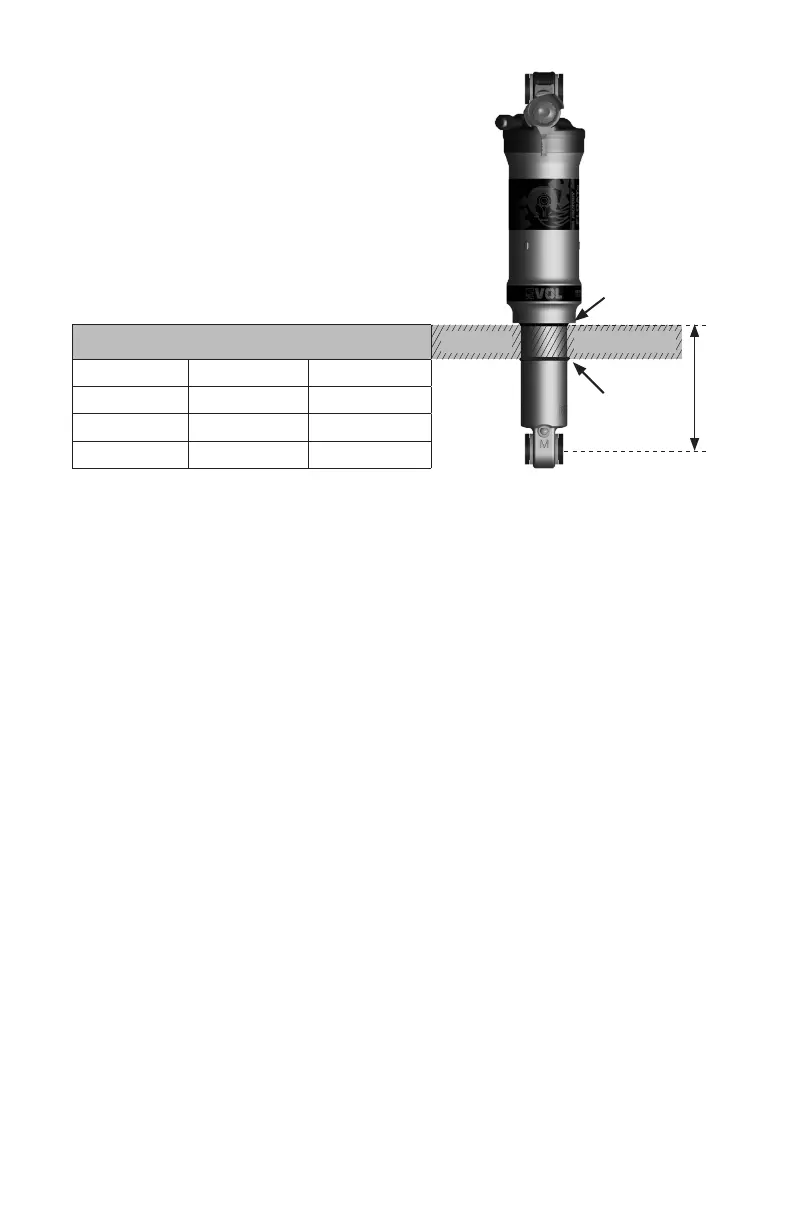

Suggested Sag Measurements
Travel 25% sag (Firm) 30% sag (Plush)
35 mm/1,38 in 8,75 mm/0,34 in 10,5 mm/0,41 in
45 mm/1,77 in 11,25 mm/0,44 in 13,5 mm/0,53 in
55 mm/2,16 in 13,75 mm/0.54 in 16,5 mm/0,65 in
RUBBER AIR
SLEEVE SEAL
INDICATOR
O-RING
25-30% SAG RANGE
EVOL AIR SLEEVE
EVOL comes factory installed on FLOAT SL shocks.
ADDING AIR PRESSURE
Equalize the positive and negative air chambers by slowly compressing the shock through 25% of its travel
10-20 times after every 50 psi addition.
Failure to equalize the chambers can result in greater pressure in the positive air chamber than the negative
chamber. If the shock feels very sti and is in the topout position, compress the shock until you hear or feel
air transfer. Hold the shock in this compressed position for a few seconds.
RELEASING AIR PRESSURE
Release air slowly so the air from the negative chamber can also be released through the Schrader valve.
Releasing the air pressure too quickly can cause the negative chamber to have more pressure than the
positive chamber. If the shock is compressed into its travel and does not fully extend, add air pressure until
the shock extends, then slowly compress the shock through 25% of its travel 10-20 times.
