Foxconn 45CMX - Page 22

15
2

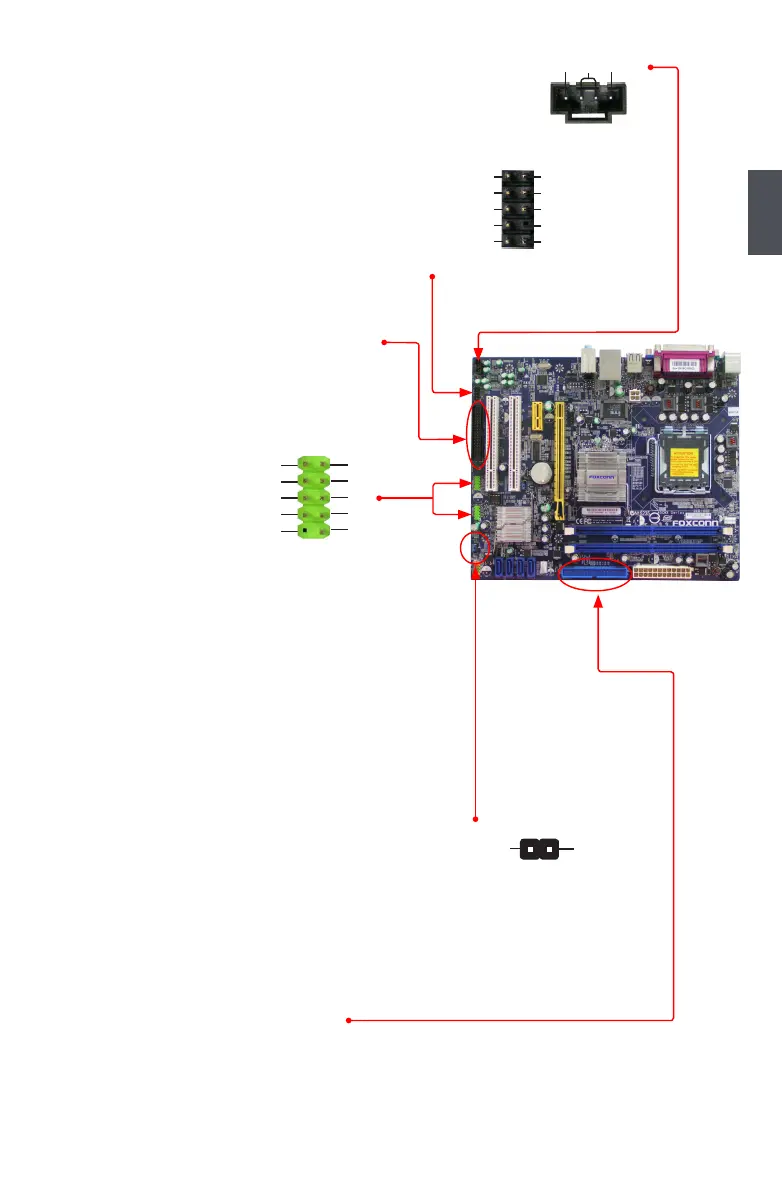

Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/DVD
audio cable.
Audio Connector : F_AUDIO
The audio connector supports HD Audio standard.
It provides the Front Audio output choice.
Floppy Disk Drive Connector : FLOPPY Disk Drive Connector : FLOPPY
     
  

USB Connectors : F_USB1/2
In addition to the four USB ports on the rear panel, this

motherboard. By connecting through USB cables with
them, user can quickly expand another four USB ports
on the front panel.
Chassis Intruder Connector : INTR
The connector can be connected to a security switch
on the chassis. The system can detect the chassis
intrusion through the function of this connector. If
eventually the chassis was closed, the system will
send a message out.
IDE Connector : PIDE

can connect to any IDE type of hard disk and CD/DVD
ROM/RW drive.
CD_IN
CD_L GND CD_R
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1
2

9
F_USB 1/2
INTR
GND
INTRUDERJ
1
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1
2
9
F_AUDIO
PORT2_R
