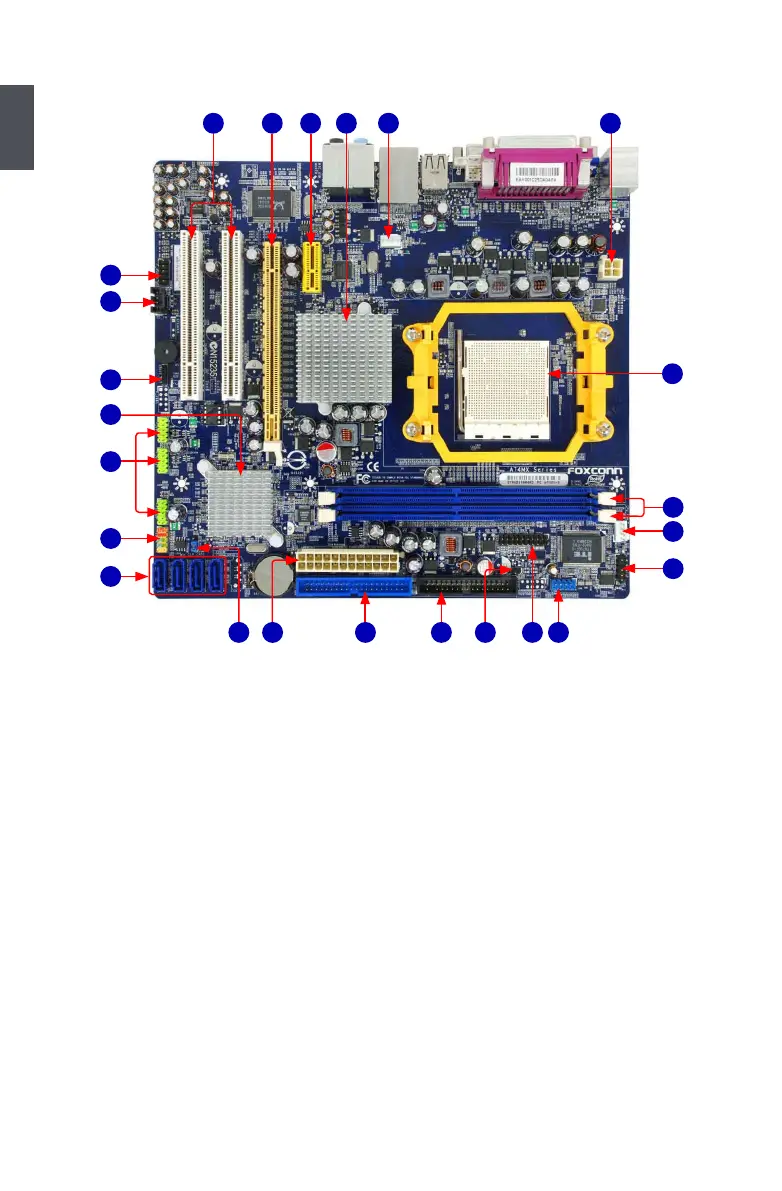

1-2 Layout
1. 4-pin ATX 12V Power Connector
2. SYS_FAN Header
3. North Bridge: AMD 740G
4. PCI Express x1 Slot
5. PCI Express x16 Slot
6. PCI Slots
7. Front Audio Connector
8. CD_IN Connector
9. S/PDIF Out Connector
10. South Bridge: AMD SB700
11. Front USB Connectors
12. Front Panel Connector
13. SATA Connectors
14. Clear CMOS Jumper
15. 24-pin ATX Power Connector
16. IDE Connector
17. Floppy Connector
18. Chassis Intrusion Alarm Header
19. TPM Connector
20. COM1 Connector
21. IR/CIR Header
22. CPU_FAN Header
23. DDR2 DIMM Slots
24. CPU Socket
Note : The above motherboard layout is for reference only, please refer to the physical mother-
board for detail.
