1-3 Back Panel Connectors
1. PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse.
2. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
3. Parallel Port
This connector provides printer port interface.
4. VGA Port
To connect with external display devices, such as monitor or LCD display.
5. DVI-D Port
The DVI-D port supports DVI-D specication. Connect a monitor that supports DVI-D connection
to this port.
6. USB Port
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.

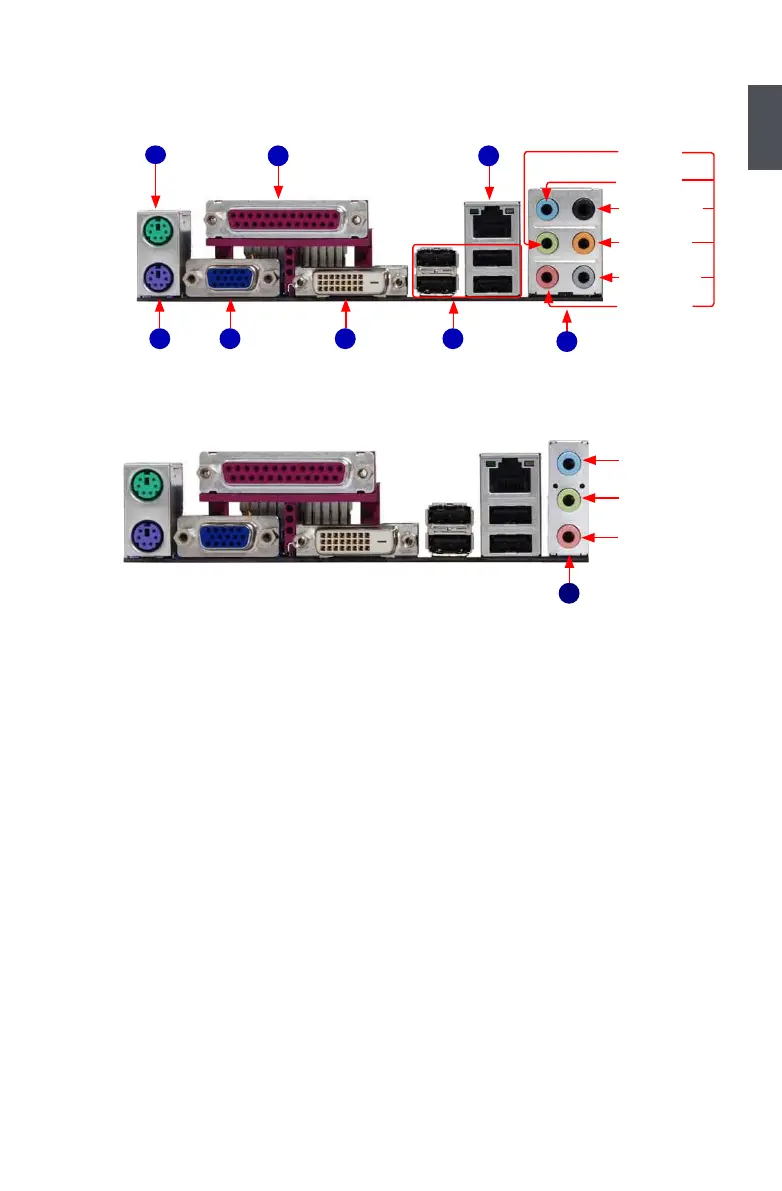

Back panel of A74MX-S :
Back panel of A74MX-K :
USB Ports
LAN PortParallel Port Port
PS/2 Keyboard Port
PS/2 Mouse Port
6
1
DVI-D Port Audio Ports
Line Out
Microphone
Subwoofer
Rear Speaker
Side Speaker
Line In
8
VGA Port
5
4
2
3
7
Line Out
Microphone
Line In
Audio Ports
7
