1
4
1. 4-pin ATX 12V Power Connector
2. PCI Express x1 Slot
3. PCI Express x16 Slot
4. PCI Slots
5. Front Audio Connector
6. CD_IN Connector
7. SPDIF_OUT Connector
8. Speaker Connector
9. South Bridge: AMD SB750
10. Front USB Connectors
11. Clear CMOS Jumper
12. Front Panel Connector
13. SATA Connectors
14. System Fan Header
15. COM1 Connector
16. ESATA Connector
17. IDE Connector
18. 24-pin ATX Power Connector
19. Floppy Connector
20. TPM Connector (Optional)
21. IrDA Connector
22. DDR2 DIMM Slots
23. North Bridge: AMD 785G
24. CPU Socket
25. CPU_FAN Header
Note : The above motherboard layout is for reference only, please refer to the physical mother-
board for detail.

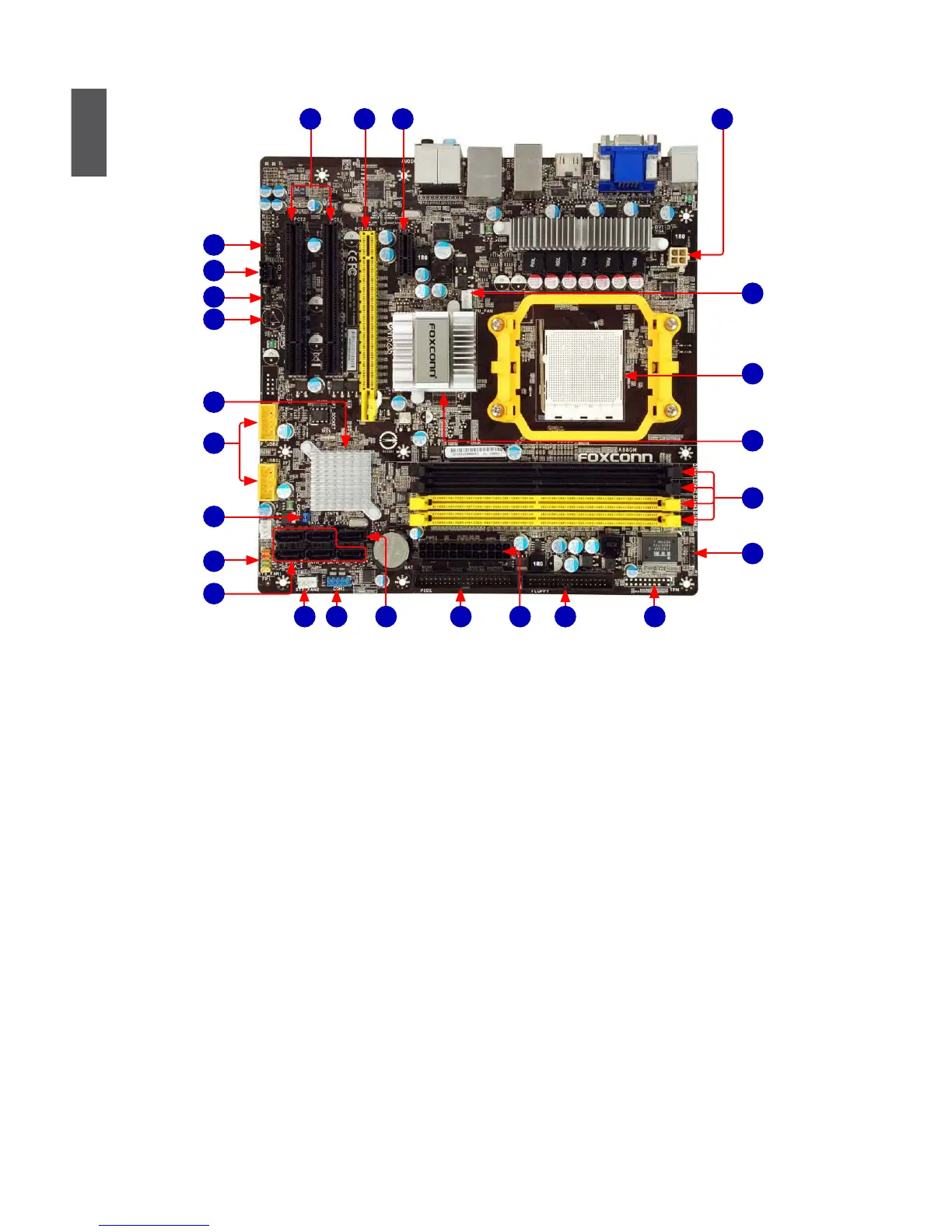

1-2 Layout
4
6
7
22
5
12
11
17 18
1
8
14
24
25
15 16
21
23
3 2
9
10
13
2019
