Foxconn A85GM Series User Manual

1
5

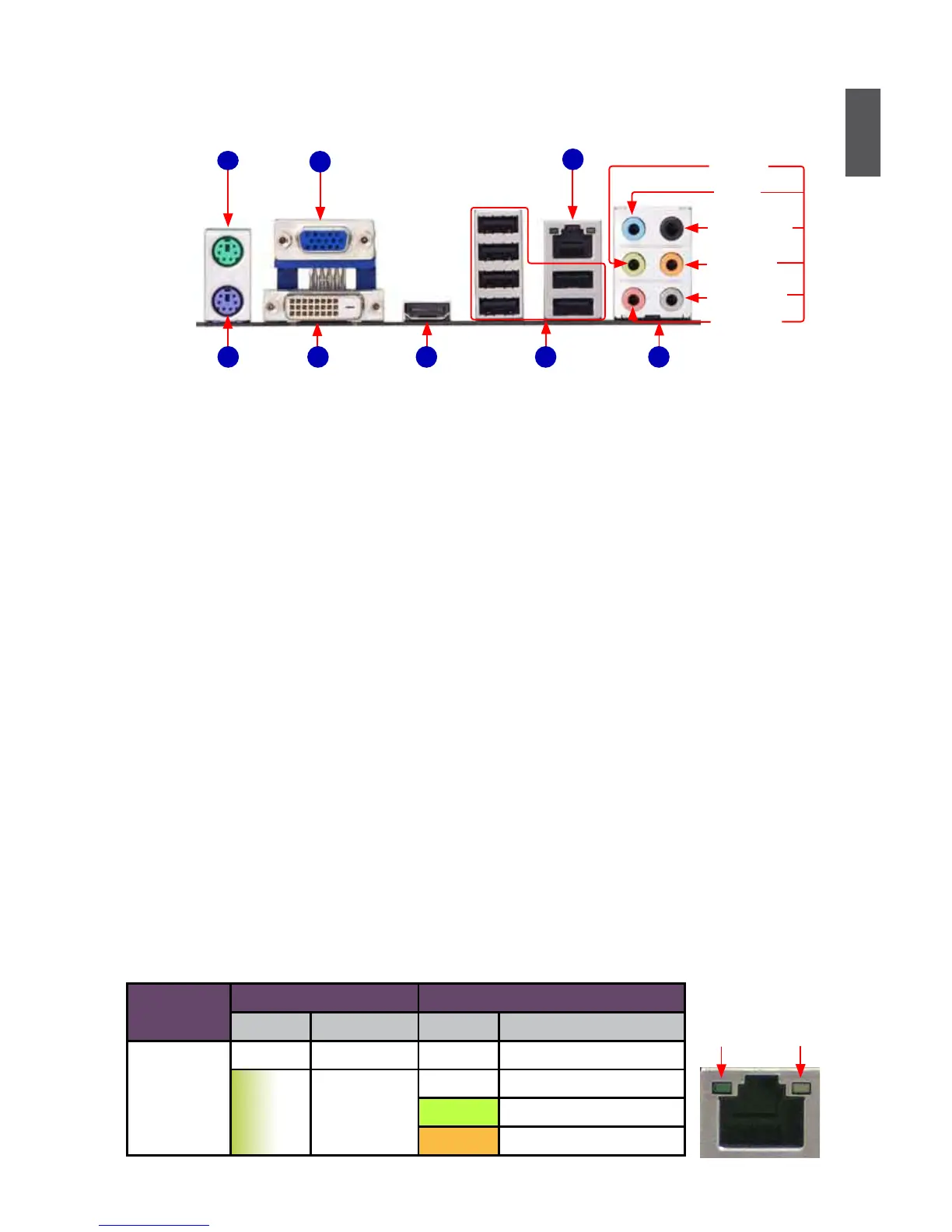

1-3 Back Panel Connectors
1. PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse.
2. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
3. VGA Port
To connect with external display devices, such as monitor or LCD display.
4. DVI-D Port
The DVI-D port supports DVI-D specication. Connect a monitor that supports DVI-D connection
to this port.
5. HDMI Port
The HDMI (High-Denition Multimedia Interface) provides an all-digital audio/video interface to
transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI au-
dio/video to this port. The HDMI Technology can support a maximum resolution of 1920x1080p,
but the actual resolutions supported depend on the monitor being used.
6. USB Ports
The USB ports support the USB 2.0/1.1 specication. Use these ports for USB devices such as
an USB keyboard/mouse, USB printer, USB ash drive and etc.
7. RJ-45 LAN Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
LAN Type
Left: Active Right: Link
Status Description Status Description
1000M
Off No Link Off No Link
Green
Blinking
Data Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection
Link
LED
Active
LED
USB Ports
LAN Port
VGA PortPS/2 Mouse Port
Audio Ports
Line Out
Microphone
Subwoofer
Rear Speaker
Side Speaker
Line In
8
DVI-D Port
3
4
PS/2 Keyboard Port HDMI Port
6
7
2
5
1
