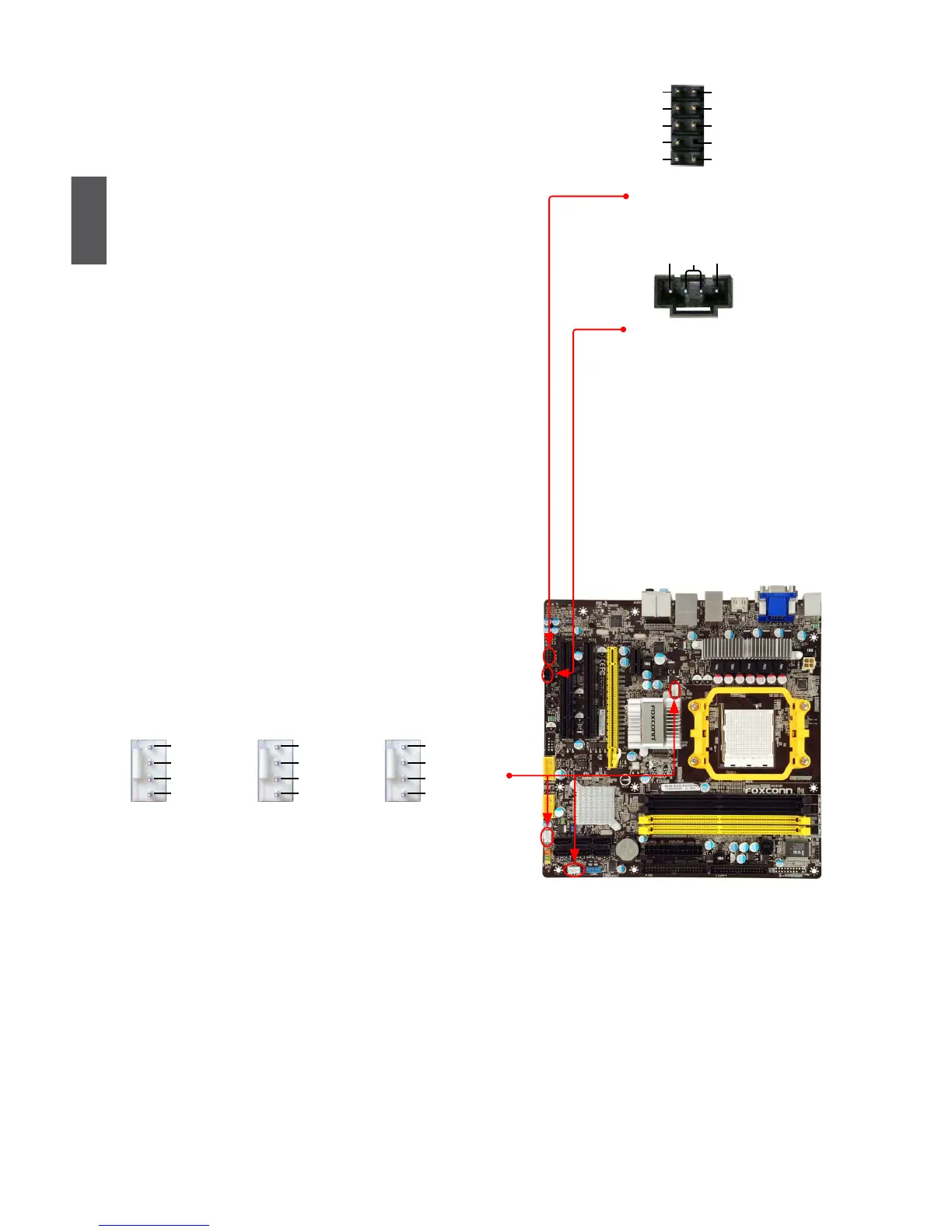

Audio Connector : F_AUDIO
The audio connector supports HD Audio standard.
It provides the Front Audio output choice.
Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/DVD
audio cable.
Fan Headers : CPU_FAN, SYS_FAN1, SYS_
FAN2
There are ve main fan headers on this motherboard.
The fan speed can be controlled and monitored in “PC
Health Status” section of the BIOS Setup. These fans
can be automatically turned off after the system enters
S3, S4 and S5 sleeping states.
CD_IN
CD_L GND CD_R
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCE_J
EMPTY
SENSE2_RETURN
AUD_GND
1 2
109
F_AUDIO
PORT2_R
CPU_FAN
GND
POWER
SENSE
CONTROL
1
SYS_FAN1
GND
POWER
SENSE
CONTROL
1
SYS_FAN2
GND
POWER
SENSE
CONTROL
1
