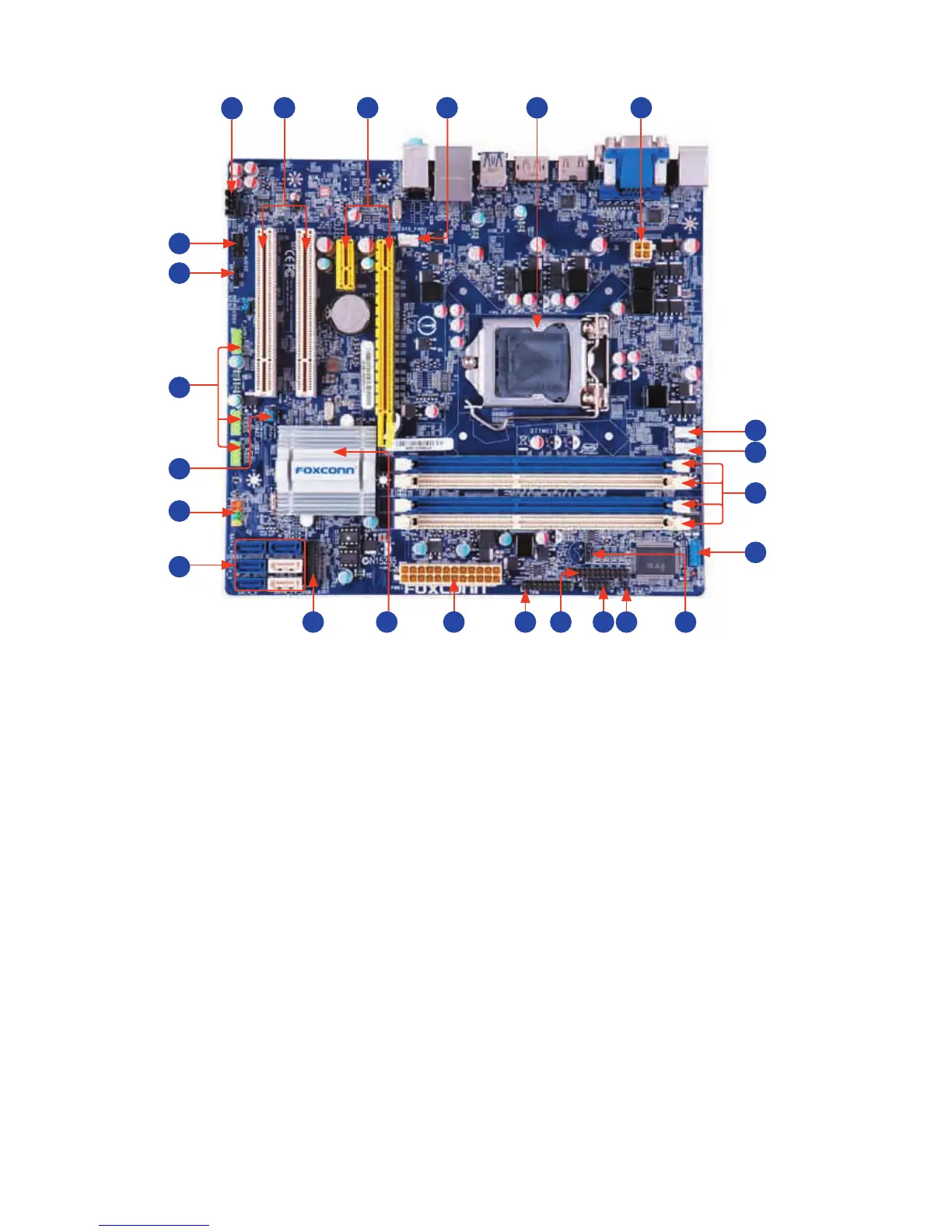

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the
physical motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. LGA1155 CPU Socket
3. SYS_FAN1 Header
4. PCI Express x 16 Slot
PCI Express x 1 Slot
5. PCI Slot
6. CD_IN Header
7. Front Audio Header
8. SPDIF_OUT Header
9. Front USB Header
10.Clear CMOS Header
11. Front Panel Header
12. SATA Connectors
13. Front USB 3.0 Connectors
14. Chipset: Intel
®
Q77/B75
15. 24-pin ATX main Power Connector
16. TPM Header
17. LPT Header
18. CIR Header
19. INTR Header
20. Speaker Connector
21. COM1 Header
22. DDR3 DIMM Slots
23. CPU_FAN Header
24. SYS_FAN 2 Header
3
9
18
21
8
15
6
1
7
45 2
19
1614
12
24
22
13
17
20
23
10
11
