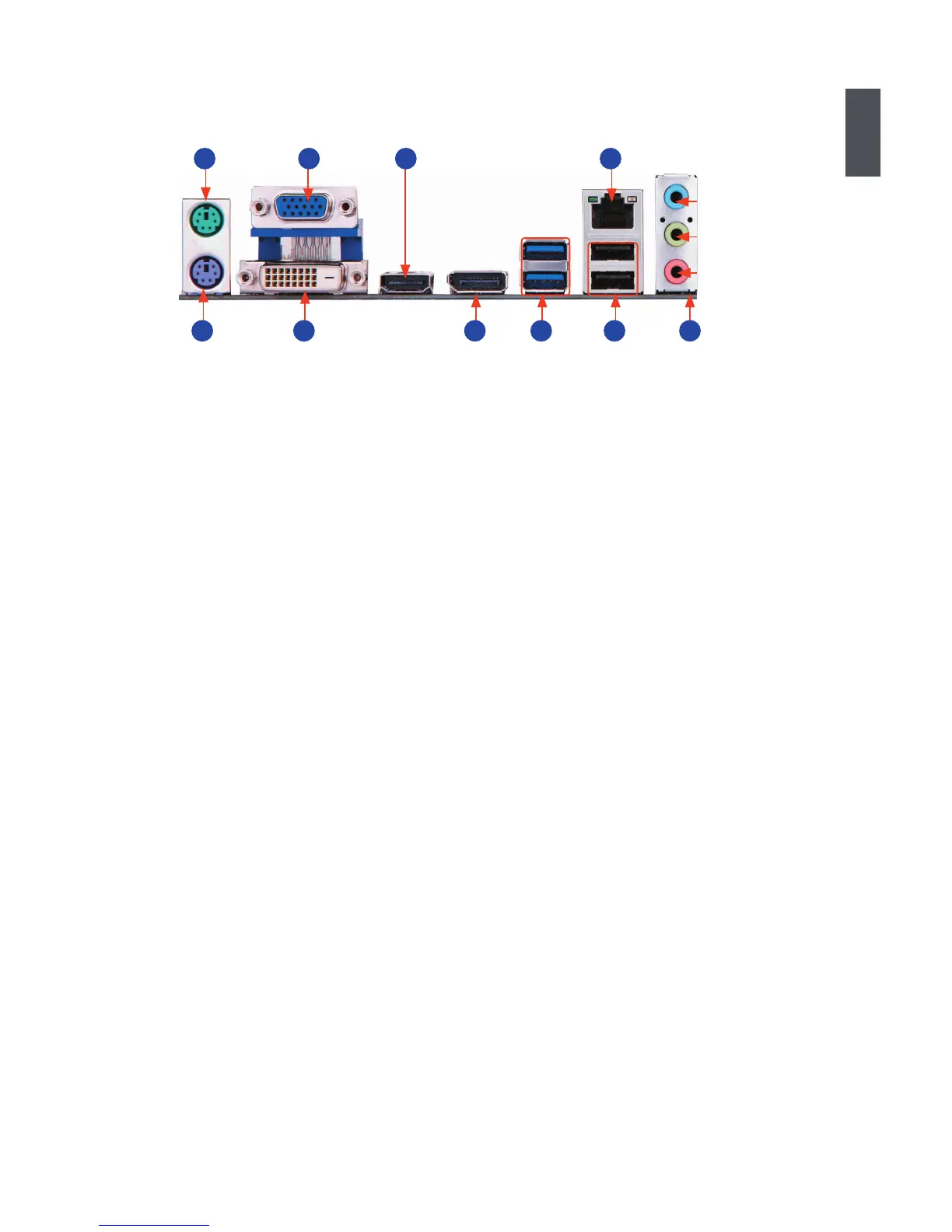

1-3 Back Panel Connectors
1. PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse.
2. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
3. VGA PortPort
Use this port to connect external display devices, such as monitor or LCD display.
4. DVI_D PortDVI_D PortPort
The DVI-D port supports DVI-D specication. Connect a monitor that supports DVI-D connection
to this port.
5. HDMI Port Port
The HDMI (High-Denition Multimedia Interface) provides an all-digital audio/video interface
to transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI
audio/video device to this port. The HDMI Technology can support a maximum resolution of
1920x1080p but the actual resolutions supported depend on the monitor being used.
6. Display Port Port
DisplayPort is a kind of high-denition digital display interface standards, which not only can
connect computers and monitors, but also connect to the PC and home theater.
7. USB 3.0 Ports
The USB port supports the USB 3.0/2.0/1.1 specication. Use this port for USB devices such as
an USB keyboard/mouse, USB printer, USB ash drive and etc. You need to install the USB 3.0
driver in the Driver CD before using it.
8. USB 2.0 Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
LAN Port
Audio Ports
1
VGA Port
9
10
3
DVI-D Port
HDMI Port
4
5
2 87
USB 3.0 Ports
6
Display Ports
Line Out
Microphone In
Line In
PS/2 Keyboard Port
PS/2 Mouse Port
USB 2.0 Ports
To Next Page
