9. RJ-45 LAN Port Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
10. Audio Ports (3 jacks)
For the denition of each audio port, please refer to the table below :
*
: Please refer to Chapter 4, and run the Realtek audio driver (in CD) to assign the audio output
ports for different applications of 2/4/5.1 channels or 2/4/5/7.1 channels. The fundamental audio
outputs are depicted in the table above.

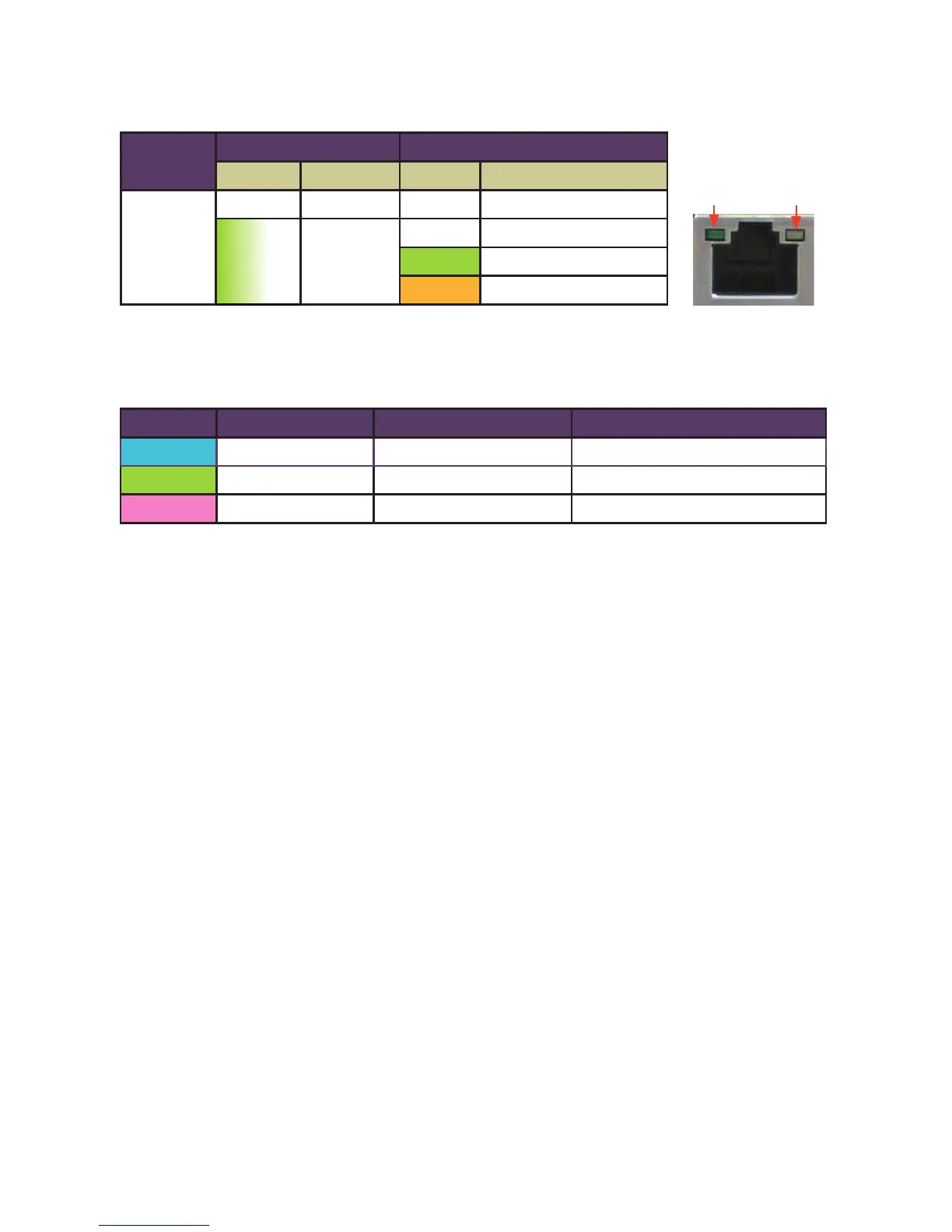

LAN Type
Left: Active Right: Link
Status Description Status Description
1000M
Off No Link Off No Link
Green
Blinking
Data
Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection
Active
LED
Link
LED
Port 2-channel 4-channel 5.1-channel
Blue Line In Rear Speaker Out
*
Rear Speaker Out
*
Green Line Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Center/Subwoofer Out
*
