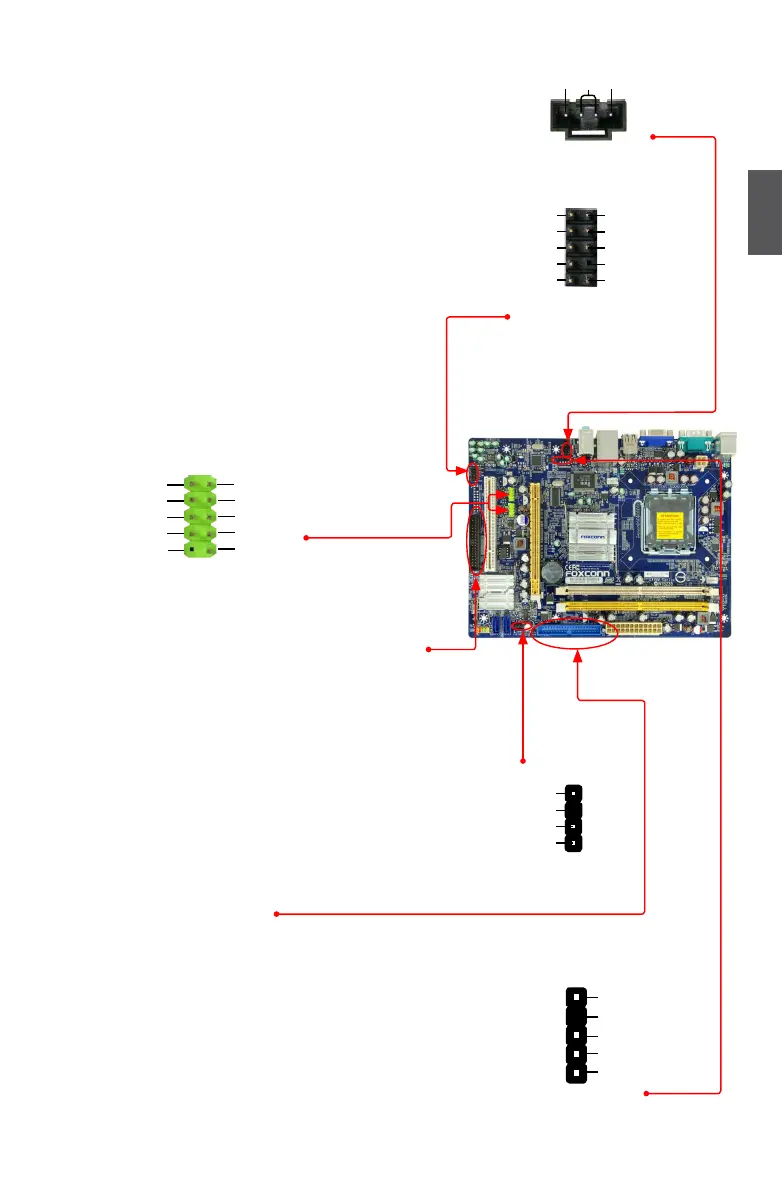

Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/DVD
audio cable.
Audio Connector : F_AUDIO
The audio connector supports HD Audio standard.
It provides the Front Audio output choice.
USB Connectors : F_USB1/2
In addition to the four USB ports on the rear panel, this
product also provides two 10-pin USB headers on its
motherboard. By connecting through USB cables with
them, user can quickly expand another four USB ports
on the front panel.
Floppy Disk Drive Connectors : FLOPPY
This motherboard includes a standard floppy disk
drive(FDD) connector, supporting 360KB, 720KB, 1.2MB,
1.44MB, and 2.88MB FDDs.
Speaker Connector : SPEAKER
The speaker connector is used to connect speaker of
the chassis.
IDE Connectors : PIDE
With the provided Ultra DMA 100/66 IDE ribbon cable, you
can connect to any IDE type of hard disk and CD/DVD
ROM/RW drive.
IrDA Connector : IR
This connector supports infrared wireless transmitting
and receiving device.
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1
2
109
F_AUDIO
PORT2_R
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1
2
10
9
F_USB 1/2
CD_IN
CD_L GND CD_R
1
NC
SPKJ
EMPTY
SPEAKER
SPKJ
1
2
3
4
1
2
3
4
5
+5V
EMPTY
IRRX
GND
IRTX
IR

Foxconn G31MV Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel G31
Socket	LGA 775
Memory Type	DDR2
Maximum Memory	4 GB
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
Integrated Graphics	Intel GMA 3100
USB Ports	8 x USB 2.0
Memory Slots	2 x DIMM
Expansion Slots	1 x PCIe x16, 2 x PCI
Audio	Realtek ALC662 6-Channel
LAN	Realtek RTL8102E, 10/100 Mbps
CPU Support	Intel Core 2 Quad, Core 2 Duo, Pentium Dual-Core, Celeron
