1
4

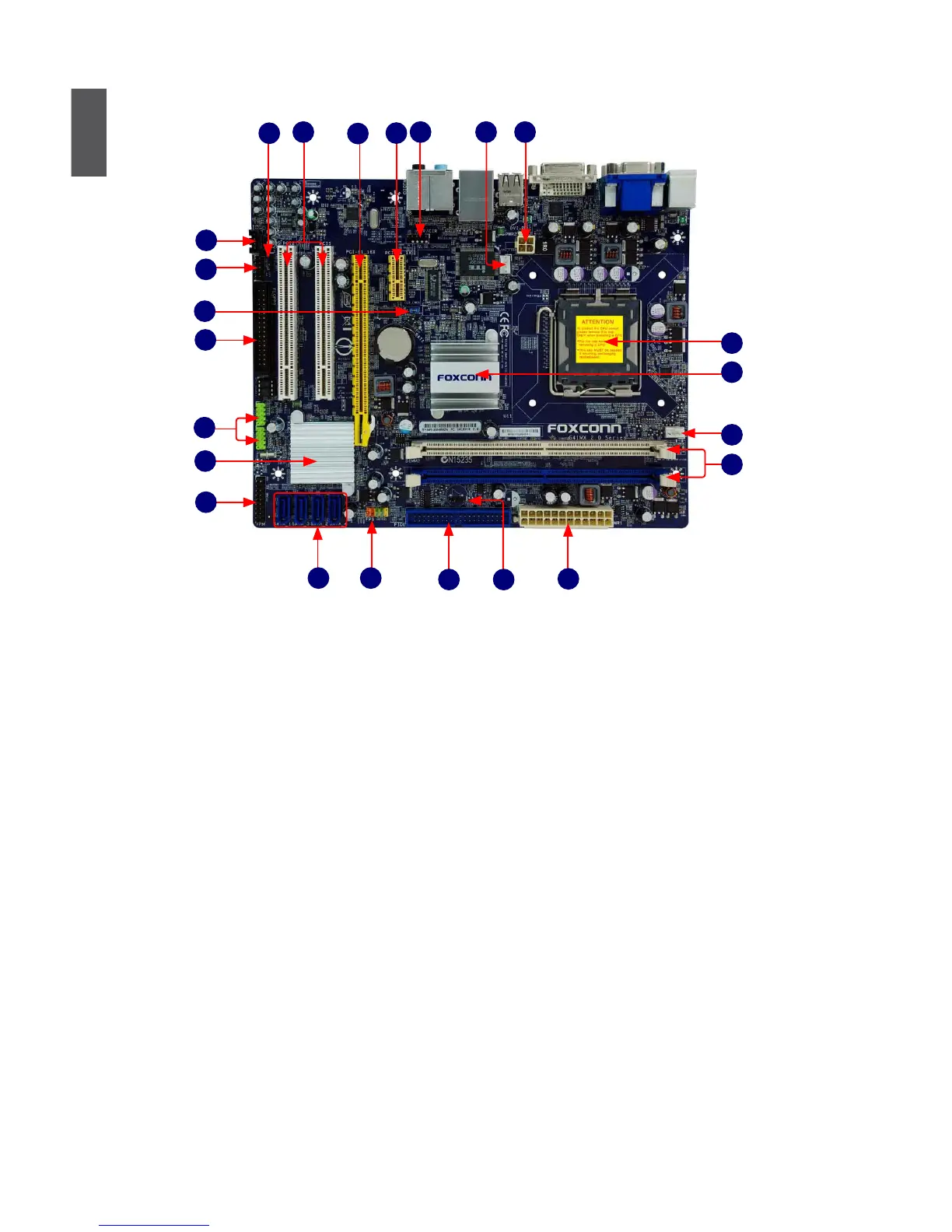

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. System FAN Header
3. IR/CIR Connector
4. PCI Express x1 Slot
5. PCI Express x16 Slot
6. PCI Slots
7. S/PDIF_OUT Connector
8. CD_IN Connector
9. Front Audio Connector
10. Clear CMOS Jumper
11. Floppy Connector
12. Front USB Connectors
13. South Bridge: Intel
®
ICH7
14. TPM Connector
15. SATA Connectors
16. Front Panel Connector
17. IDE Connector
18. Speaker Connector
19. 24-pin ATX Power Connector
20. DDR2 DIMM Slots
21. CPU_FAN Header
22. North Bridge: Intel
®
G41
23. LGA 775 CPU Socket
20
21
22
1
36
1615
17
2
8
4
5
18
23
9
12
14
11
7
19
13
10

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Foxconn G41MX 2.0 and is the answer not in the manual?

Foxconn G41MX 2.0 Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetIntel G41
SocketLGA 775
Maximum Memory8 GB
Storage Interface4 x SATA 3Gb/s
USB Ports8 x USB 2.0
IDE Ports1 x ATA 100
Video Outputs1 x VGA
Memory Slots2 x DIMM
Expansion Slots1 x PCIe x16, 2 x PCI
AudioRealtek ALC662, 6-Channel
LANRealtek RTL8111 Gigabit Ethernet
Supported CPUIntel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Memory TypeDDR3
