Foxconn G41MX 2.0 User Manual

1
6

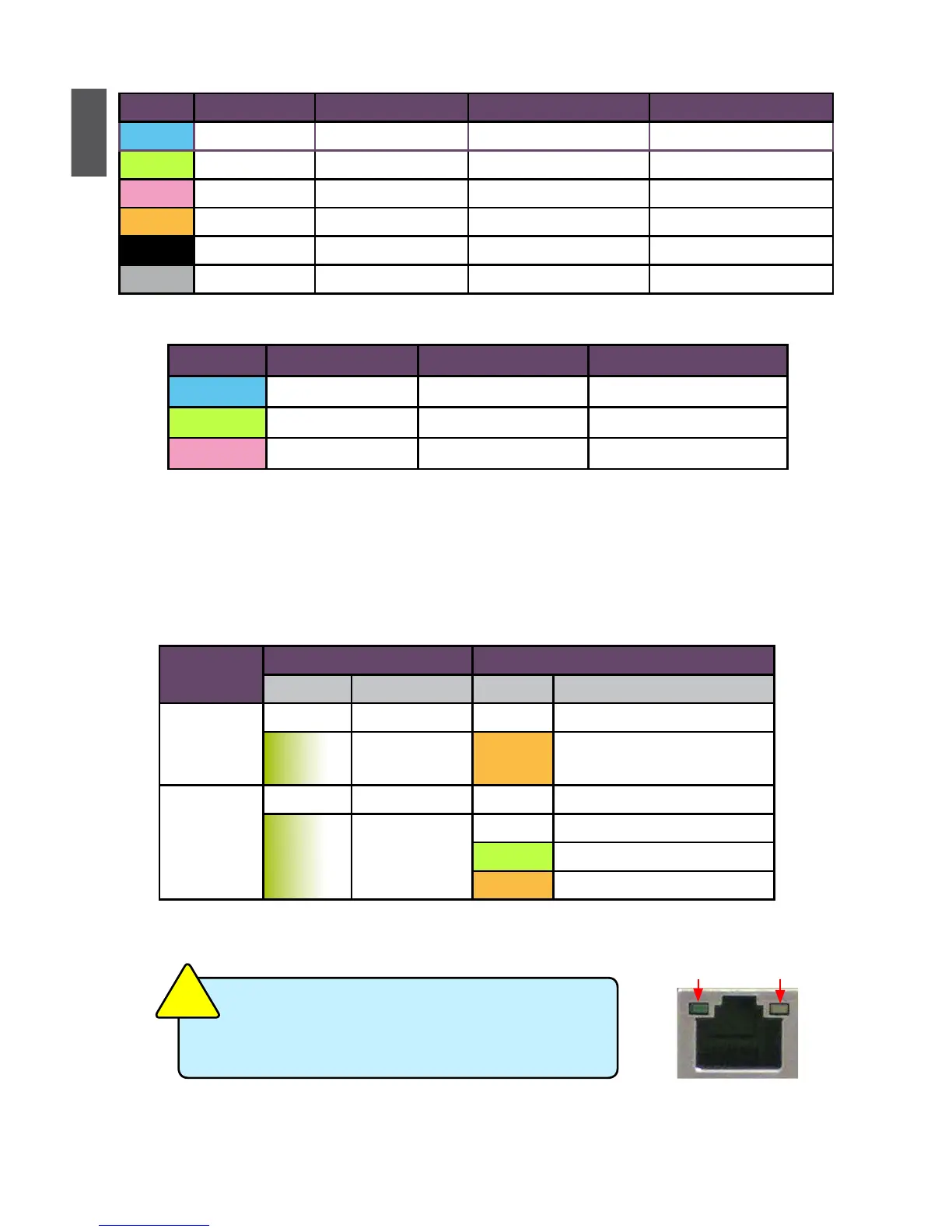

Audio Ports of G41MX-K 2.0:
Audio Ports of G41MX 2.0/G41MX-F 2.0:
* : Please refer to Chapter 4, and install the Realtek audio driver (in CD) to assign the audio
output ports for different applications of 2/4/5.1 channels. The fundamental audio outputs are
depicted in the table above.
8. RJ-45 LAN Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
Port 2-channel 4-channel 5.1-channel 7.1-channel
Blue Line In Line In Line In Line In
Green Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Microphone In Microphone In
Orange - - Center/Subwoofer Out Center/Subwoofer Out
Black - Rear Speaker Out Rear Speaker Out Rear Speaker Out
Grey - - - Side Speaker Out
Active
LED
Link
LED
Port 2-channel 4-channel 5.1-channel
Blue Line In Rear Speaker Out* Rear Speaker Out*
Green Line Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Center/Subwoofer Out*
LAN Type
Left: Active Right: Link
Status Description Status Description
100M
Off No Link Off No Link
Green
Blinking
Data Activity Orange 10/100Mb/s Connection
1000M
Off No Link Off No Link
Green
Blinking
Data Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection
G41MX 2.0 supports 10/100 Mb/s Ethernet.
G41MX-K
2.0/ G41MX-F 2.0 supports 1Gb/s
Ethernet.
C
A
U
T
I
O
N
!

Foxconn G41MX 2.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
Socket	LGA 775
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
IDE Ports	1 x ATA 100
Video Outputs	1 x VGA
Memory Slots	2 x DIMM
Expansion Slots	1 x PCIe x16, 2 x PCI
Audio	Realtek ALC662, 6-Channel
LAN	Realtek RTL8111 Gigabit Ethernet
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Memory Type	DDR3
