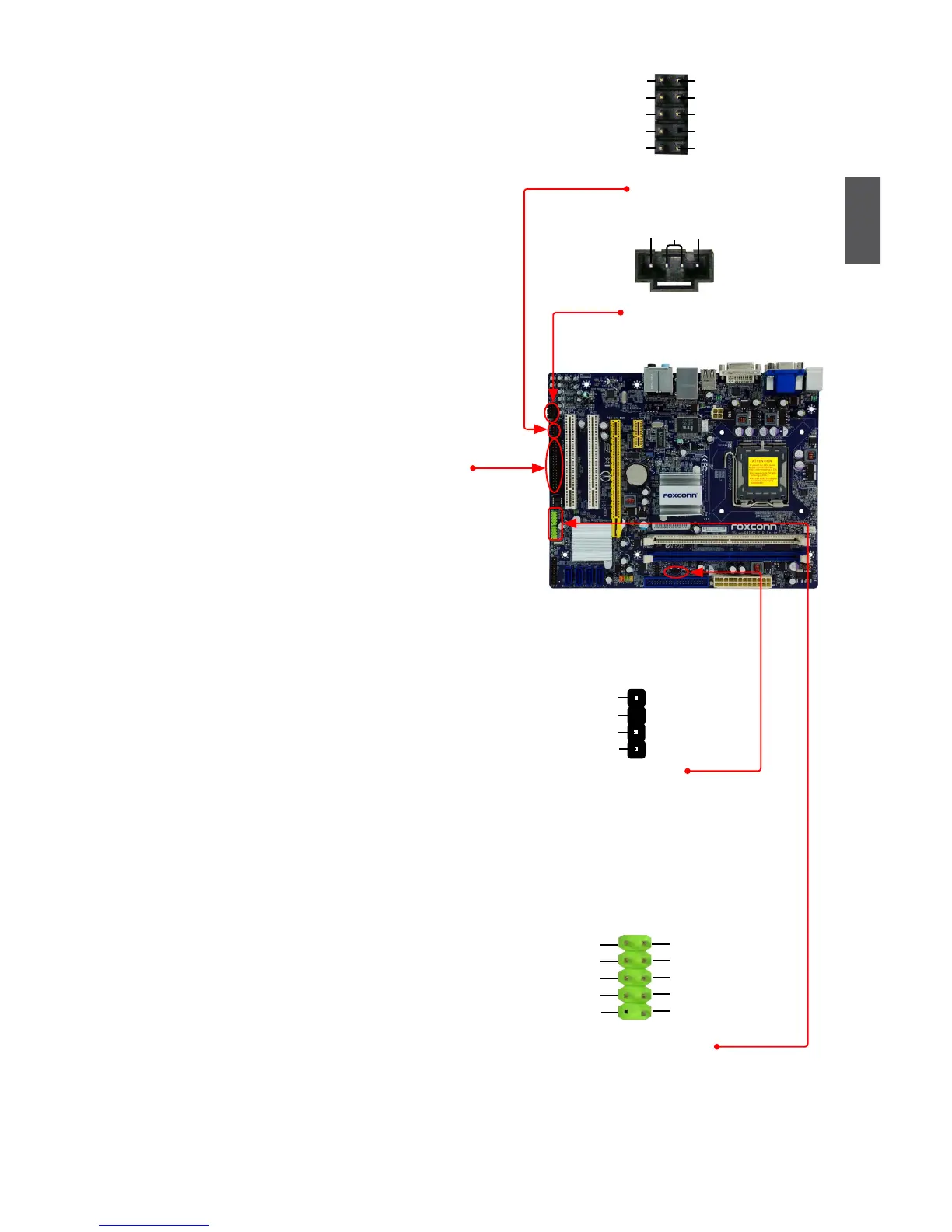

Audio Connector : F_AUDIO
The audio connector supports HD Audio standard. It
provides the Front Audio output choice.
Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can
be connected to a CD/DVD-ROM drive through a
CD/DVD audio cable.
Floppy Disk Drive Connector : FLOPPY
This motherboard includes a standard oppy disk
drive (FDD) connector, supporting 360KB, 720KB,
1.2MB, 1.44MB, and 2.88MB FDDs.
Speaker Connector : SPEAKER
The speaker connector is used to connect speaker
of the chassis.
USB Connectors : F_USB1/2
In addition to the four USB ports on the rear panel,
this product also provides two 10-pin USB headers
on its motherboard. By connecting through USB
cables with them, user can quickly expand another
four USB ports on the front panel.
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1
2
109
F_AUDIO
PORT2_R
CD_IN
CD_L GND CD_R
1
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1
2
10
9
F_USB 1/2
NC
SPKJ
EMPTY
SPEAKER
SPKJ
1
2
3
4

Foxconn G41MX 2.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
Socket	LGA 775
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
IDE Ports	1 x ATA 100
Video Outputs	1 x VGA
Memory Slots	2 x DIMM
Expansion Slots	1 x PCIe x16, 2 x PCI
Audio	Realtek ALC662, 6-Channel
LAN	Realtek RTL8111 Gigabit Ethernet
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Memory Type	DDR3
