Foxconn G41MX 2.0 User Manual

53
4
53

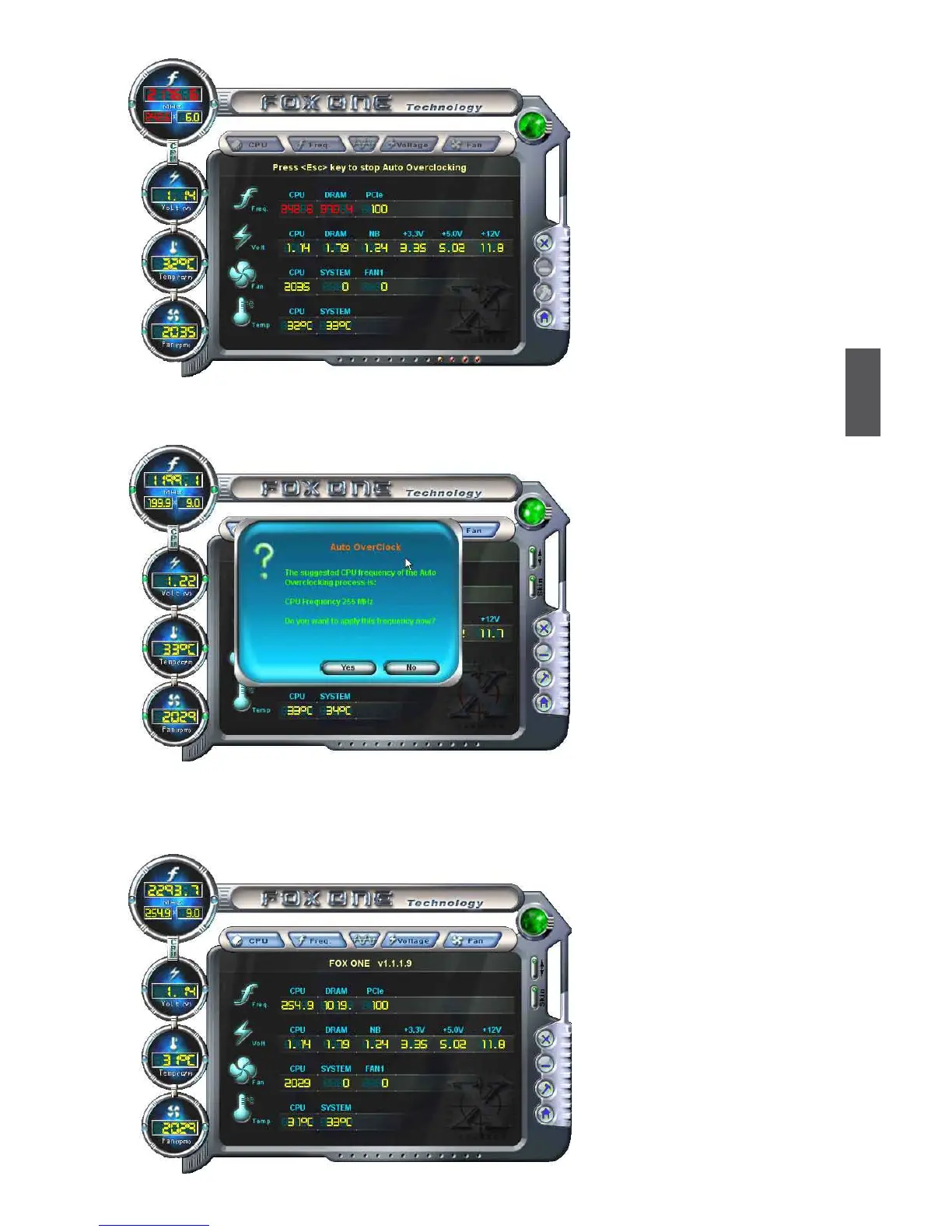

You can see the system is
raising CPU clock until the
system hangs.
Push RESET button on the
front panel of your system to
restart the computer.
Run FOX ONE program
again, it will inform you
the previous test found
that 255MHz is the
recommended CPU clock for
your system.
Click Yes to apply it to your
system.
Now, your system is running
at a CPU clock of 255MHz.

Foxconn G41MX 2.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
Socket	LGA 775
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
IDE Ports	1 x ATA 100
Video Outputs	1 x VGA
Memory Slots	2 x DIMM
Expansion Slots	1 x PCIe x16, 2 x PCI
Audio	Realtek ALC662, 6-Channel
LAN	Realtek RTL8111 Gigabit Ethernet
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Memory Type	DDR3
