4
1

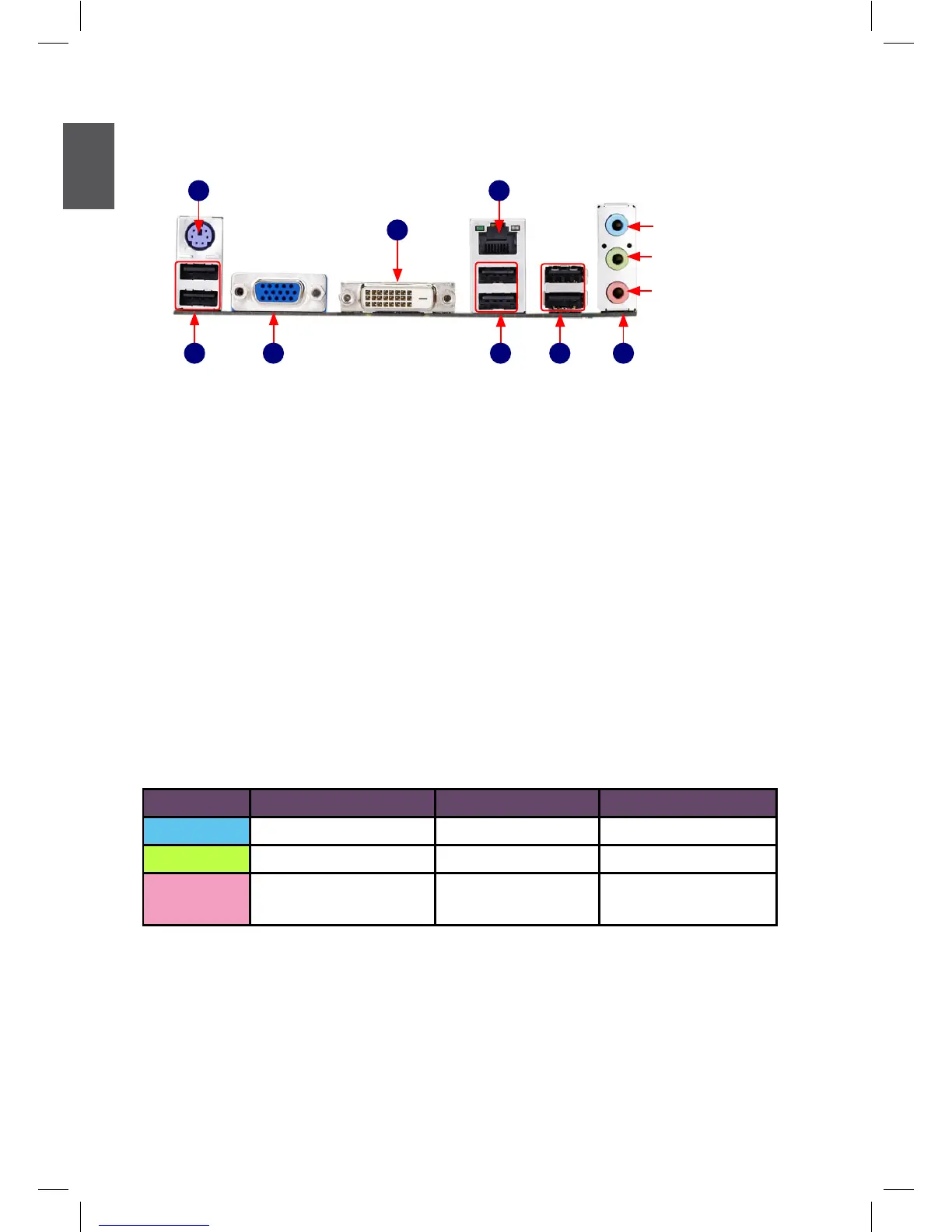

1-3 Back Panel Connectors
1. PS/2 Keyboard Port
Use the upper port (purple) to connect a PS/2 Keyboard.
2. USB Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
3. DVI-DPort
The DVI-I port supports DVI-I specication. Connect a monitor that supports VGA or DVI-D
connection to this port.
4. VGA Port
To connect with external display devices, such as monitor or LCD display.
5. Audio Ports
For the denition of each audio port, please refer to the table below :
DVI-D Port
LAN Port
USB Ports
PS/2 Keyboard Port
VGA Port
Audio Ports
Line Out
Microphone In
Line In
6
1
3
2 5
2
4 2
Port 2-channel 4-channel 5.1-channel
Blue Line In Rear Speaker Out Rear Speaker Out
Green Line Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In
Center/Subwoofer
Speaker Out
