Note:
Power cable (K2) must be pulled straight from the battery DC+/- for more than 80mm before bending.
Make sure that the power cable connected to the inverter is connected vertically and that the vertical
length is greater than 30 cm. If the cable is bent close to the terminals, it may cause poor line contact
and result in burnt terminals.

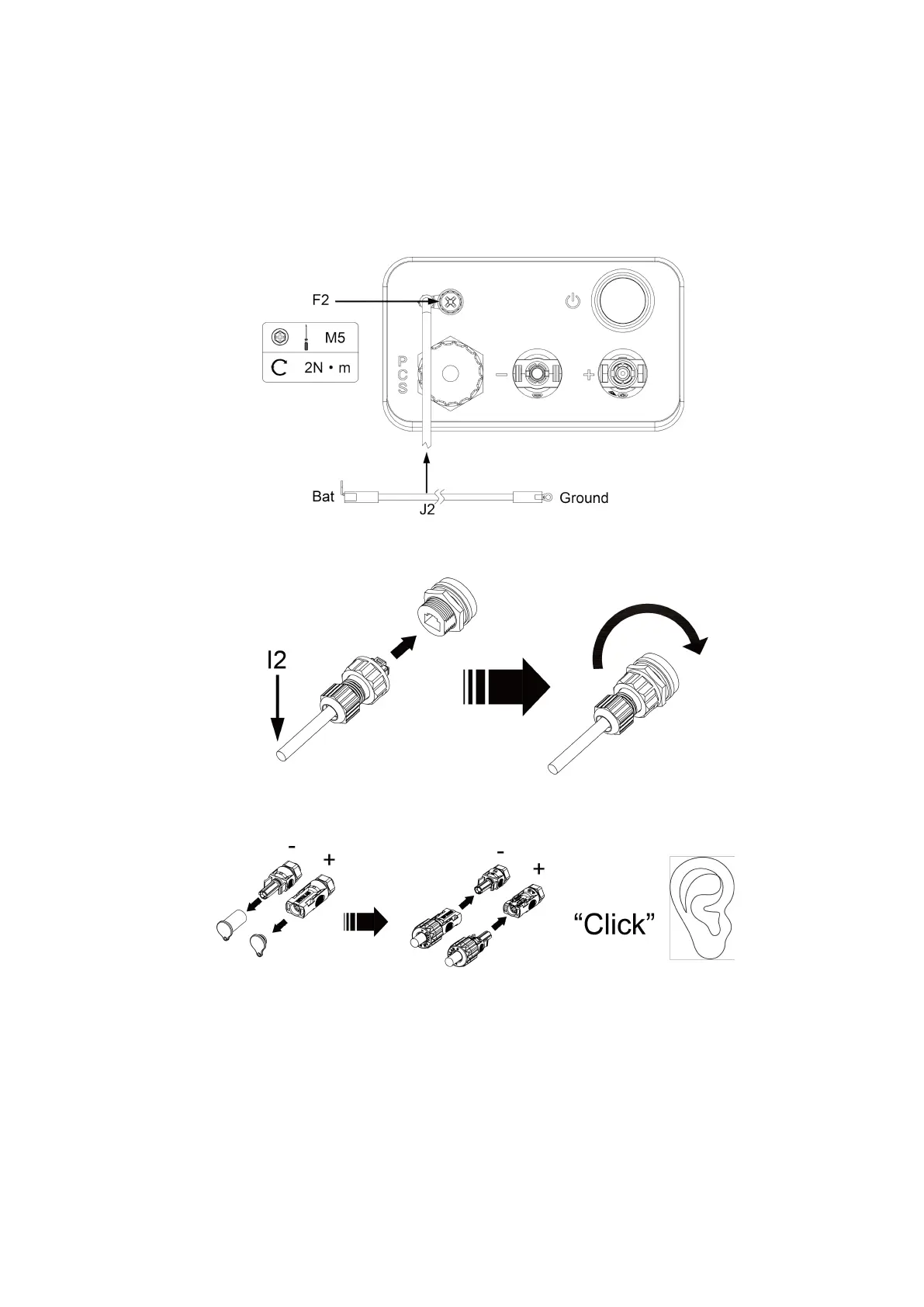

a. Connect the ground calble (J2) to the ground.
b. Connect the PCS communication cable (I2) to the BMS port on the inverter.
c. Remove the waterproof bridge from DC+ and DC-, then insert the power wire (K2) into DC+ and DC-.
