Parallel mode：

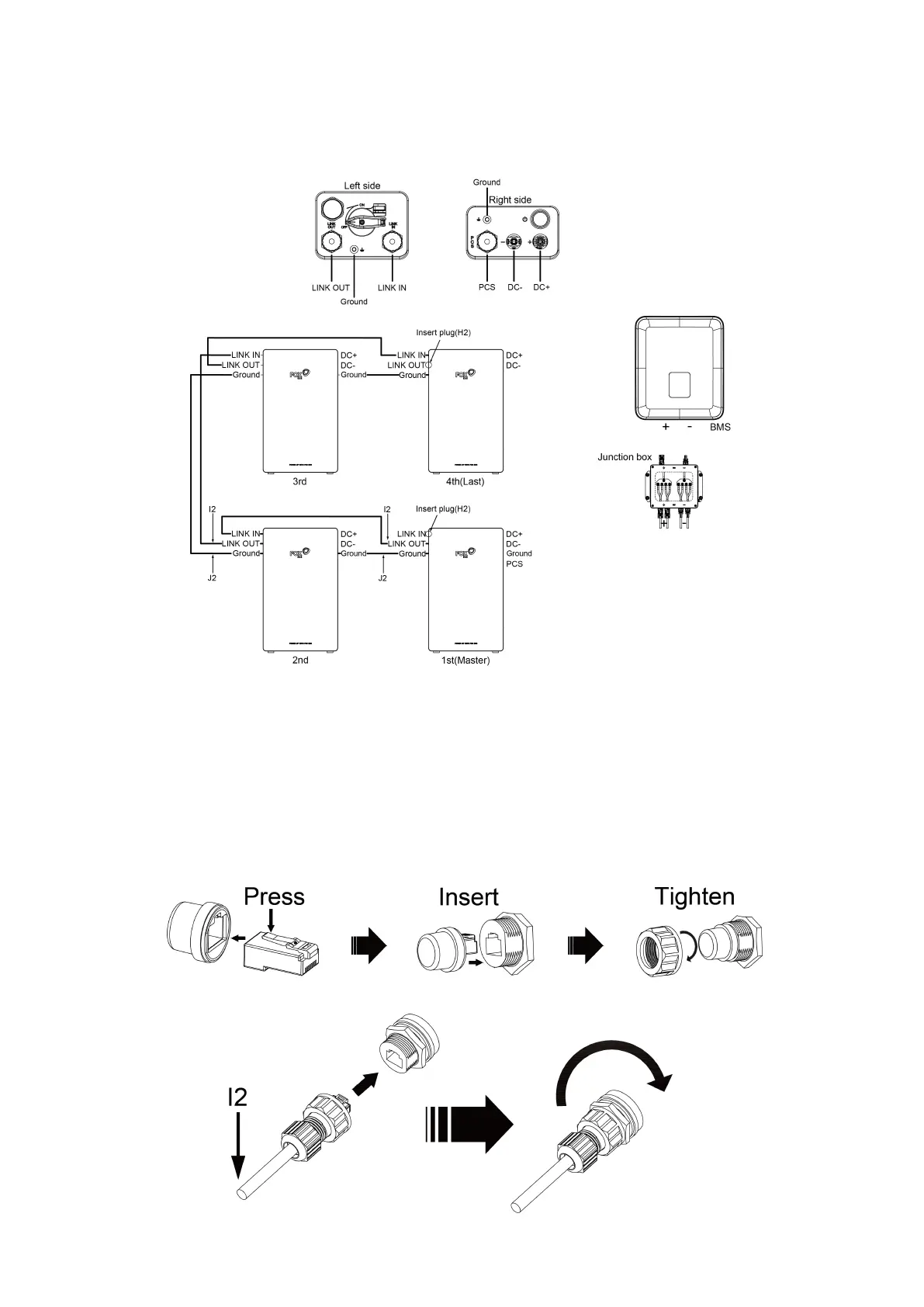

Step 1: Connect the parallel cables:
The steps for parallel connection of batteries is as follows:
a. Insert the parallel plug (H2) into the LINK IN port, this battery is defined as the Master battery
(whichever battery can be set as the Master).
b. Connect the ground cable (J2) from the ground terminal of the Master battery (left side of the battery)
to the ground terminal of the next battery (right side of the battery), and continue the same connection
until the ground terminal of the last battery (left side of the battery).
c. Use the communication cable(I2) to cross-connect the LINK OUT of the previous battery with the LINK
IN of the next battery. Start from the LINK OUT of the Master and continue until reaching the LINK IN
port of the last battery.
d. Insert the parallel plug (H2) into the LINK OUT port of the last connected battery.
Note 1: The steps of inserting the parallel plug (H2) are as follows:
Note 2: The steps of installing the parallel communication wire are as follows:
