Step 2: Connect the inverter cables:
Note:
Keep a distance of 300-600mm from the battery to the junction box. Power cable(K2) must be pulled
straight from the battery DC+/- for more than 80mm before bending.
Make sure that the power cable connected to the inverter is connected vertically and that the vertical
length is greater than 30 cm. If the cable is bent close to the terminals, it may cause poor line contact
and result in burnt terminals.

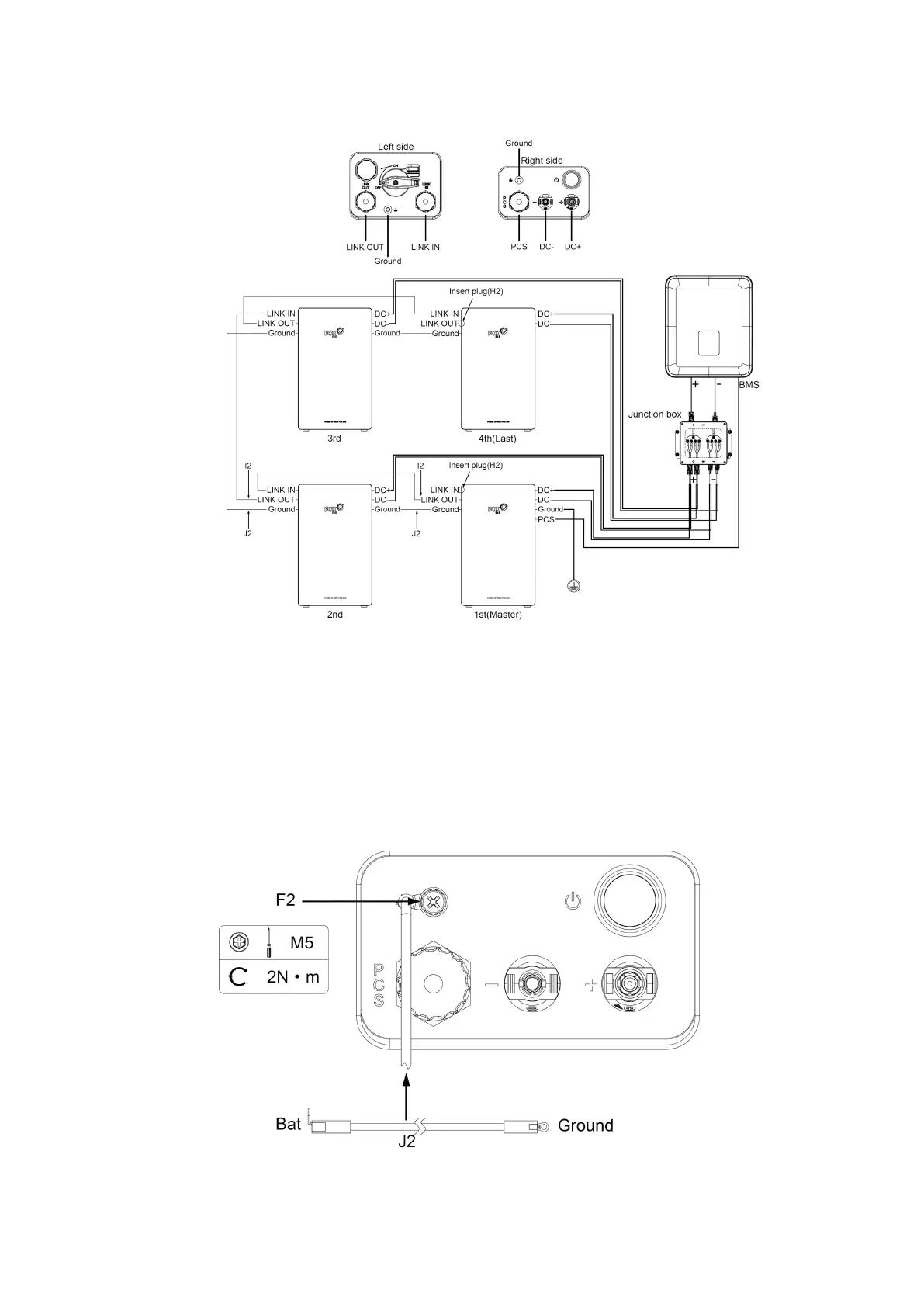

a. Connect the ground cable (J2) of the Master battery to the ground.
