8. Operation

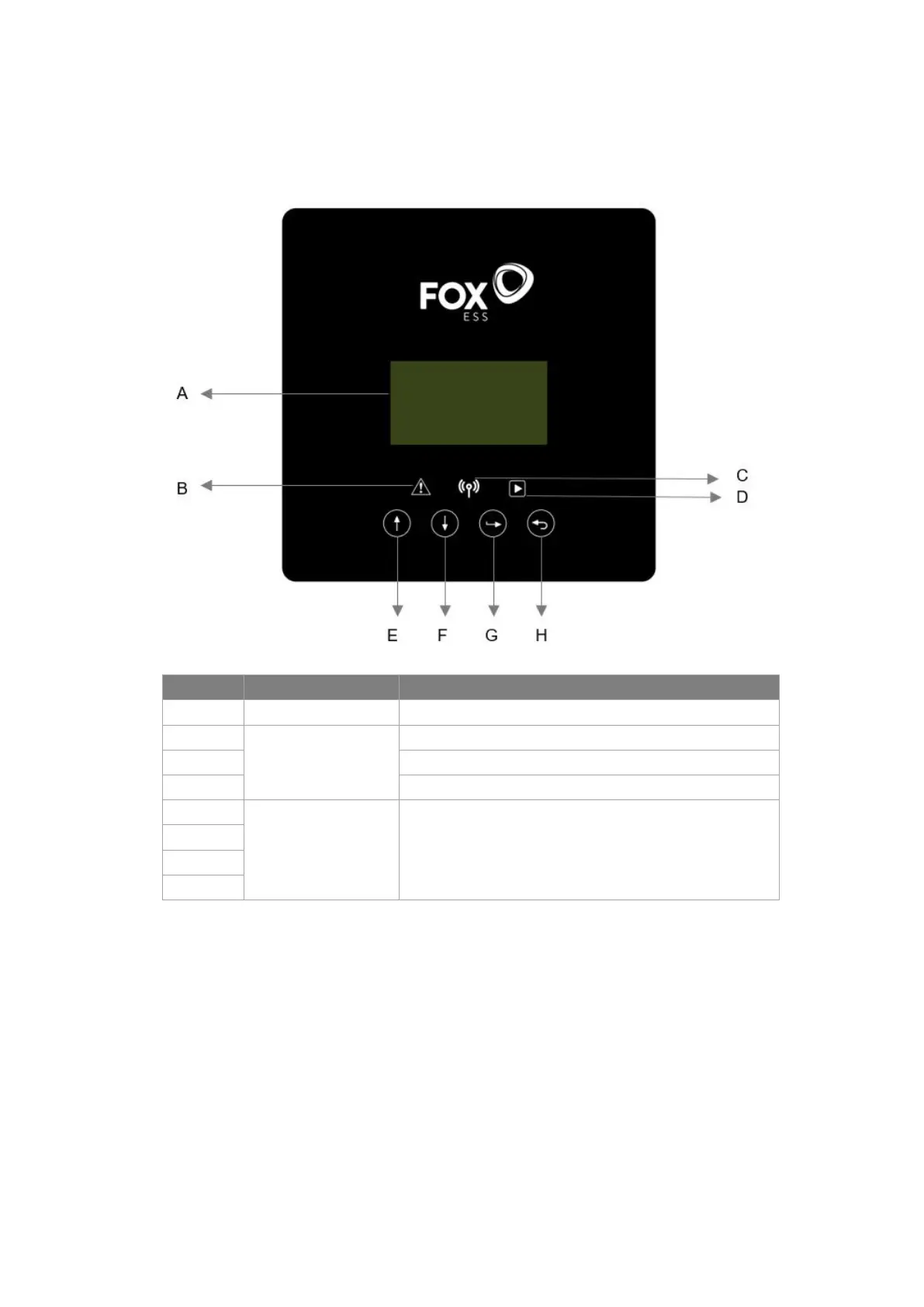

8.1 Control Panel
Object Name Function
A LCD screen Display the information of the inverter.
B
Indicator LED
Red: The inverter is in fault mode.
C Blue: The inverter is normally connected to the battery.
D Green: The inverter is in normal state.
E
Function button
Up button: Move cursor to upside or increase value.
Down button: Move cursor to downside or decrease value.
OK button: Confirm the selection.
Return button: Return the previous operation.
F
G
H
