S Series User Manual www.fox-ess.com P a g e | 10

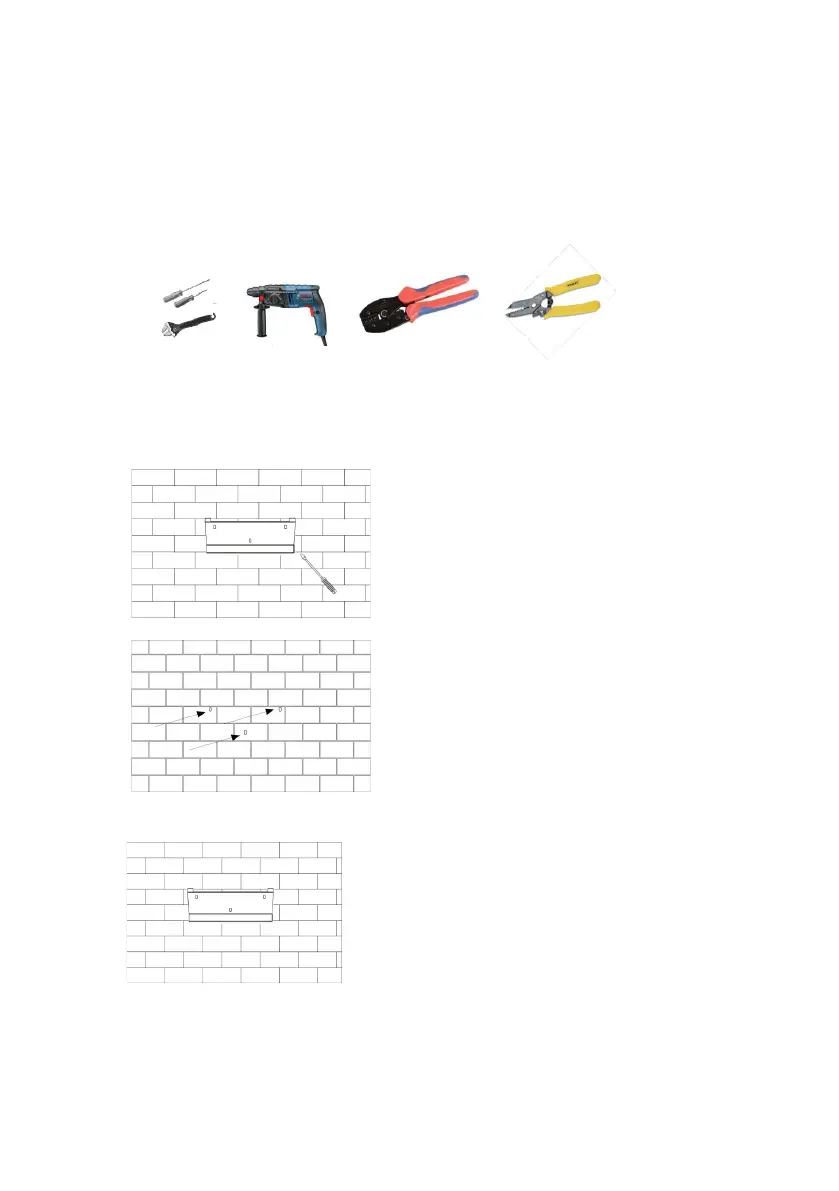

5.4 Tools Required
▪ Manual wrench;
▪ Electric drill (drill bit set 8mm);
▪ Crimping pliers;
▪ Stripping pliers;
▪ Screwdriver.
5.5 Installation Steps
Step 1: Fix the bracket on the wall
➢ Choose the place you want to install the inverter. Place the bracket on the wall and mark the position of the 3
holes from bracket.
➢ Drill holes with electric drill, make sure the holes are at least 50mm deep, and then tighten the expansion tubes.
➢ Insert the expansion tubes into the holes and tighten them. Install the bracket with the expansion screws.
Step 2: Match the inverter with wall bracket
➢ Hang the inverter over the bracket, slightly lower the inverter, and make sure the 2 mounting bars on the back
are fixed with the 2 grooves from bracket properly.
