S Series User Manual www.fox-ess.com P a g e | 16

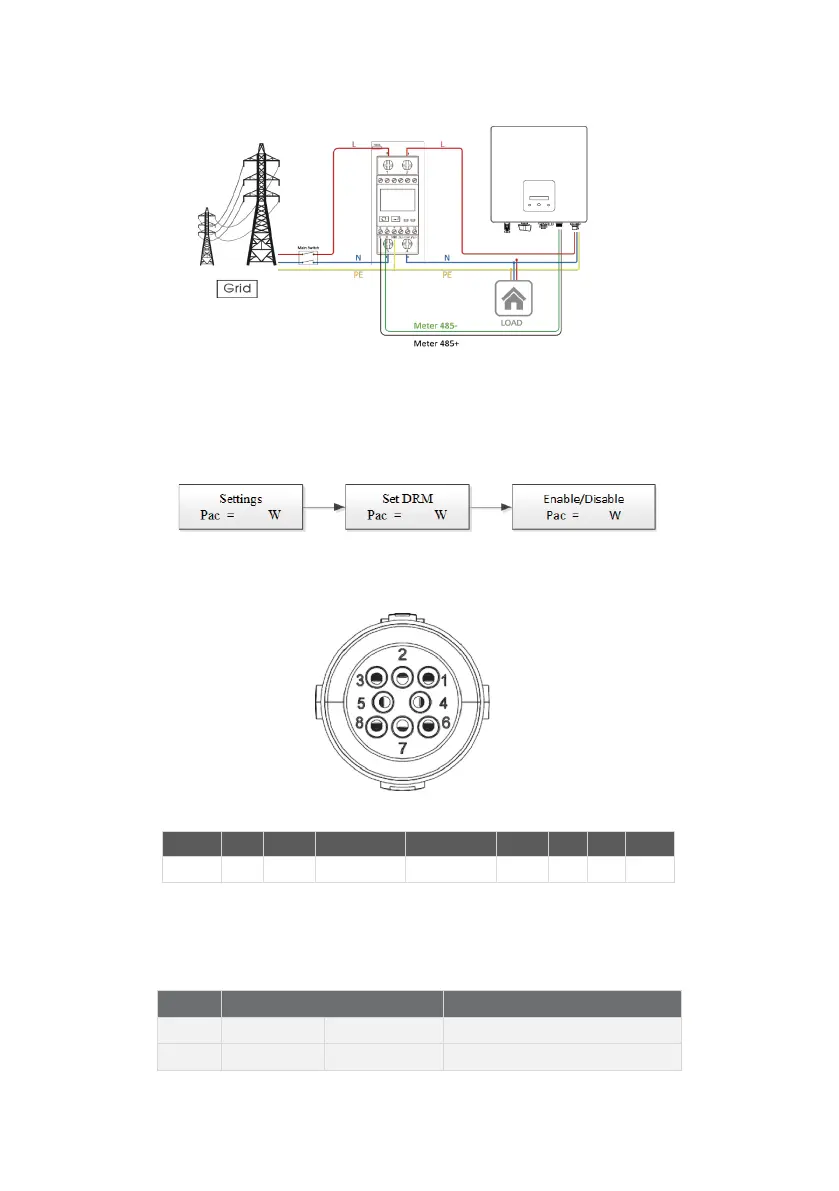

➢ DRM0/ESTOP
DRM0 setting
Short press the touch key to switch display or make the value+1. Long press the touch key to confirm your setting.
The PIN definitions of CT/RS485/DRM0/ESTOP interface are as below.
PIN
1
2
3
4
5
6
7
8
Definition
CT+
CT-
METER 485-
METER 485+
GND
DRM0
NC
ESTOP
5.9 Inverter Start-Up
Please refer to the following steps to start-up the inverter:
a) Check if device is fixed well on the wall;
b)
Model
Socket Asserted by shorting pins
Function
DRM0
5
6
Operate the disconnection device
ESTOP
5
8
Emergency stop the inverter
