FPT F32 Series - Page 71

119124
119123
119105

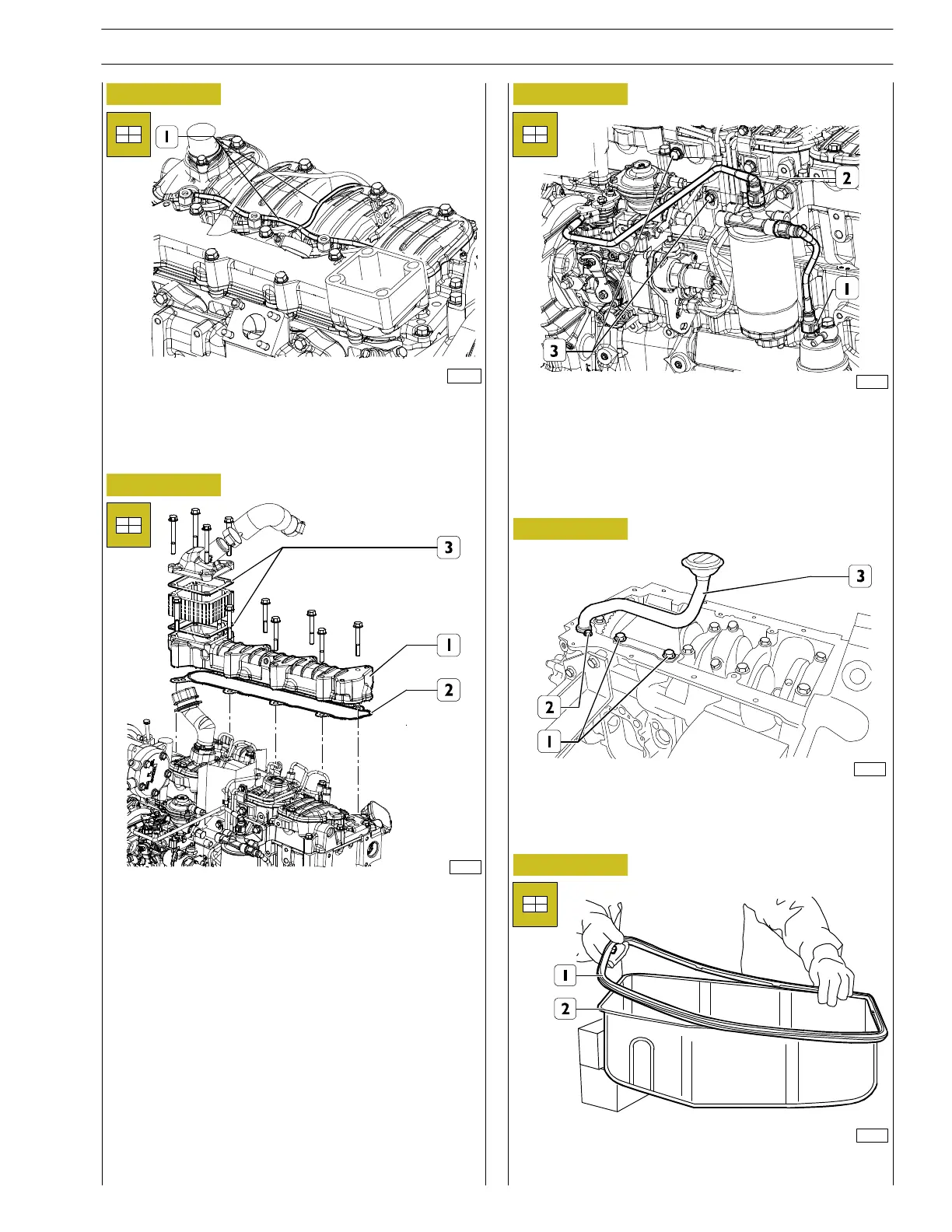

Figure 55
Figure 56
Figure 57
- Reassemble the whole intake manifold (1) replacing th e
gasket (2) and (3).
- Reassemble the pipe from the pump to the injector and
tighten the brackets’ fastening screws (3).
- Reassemble the pipe from the pump to the fuel filter (2)
and from the fuel filter to the priming pump (1).
- Reassemble the L.D.A. pipe
- Fit the new gasket (1) to t he oil pan (2).
Figure 58
- Reassemble the fuel exhaust pipes (1).
Figure 59
119116
- Reassemble the suction rose tightening the support
fastening screws (1) and the screw fixing th e suction rose
(2) to the prescribed torque setting.
122571
SECTION 3 - INDUSTRIAL APPLICATION
23
F32 SERIES
Pri nt P2D32F005 E Base - April 2009
