FPT F32 Series - Page 72

119904

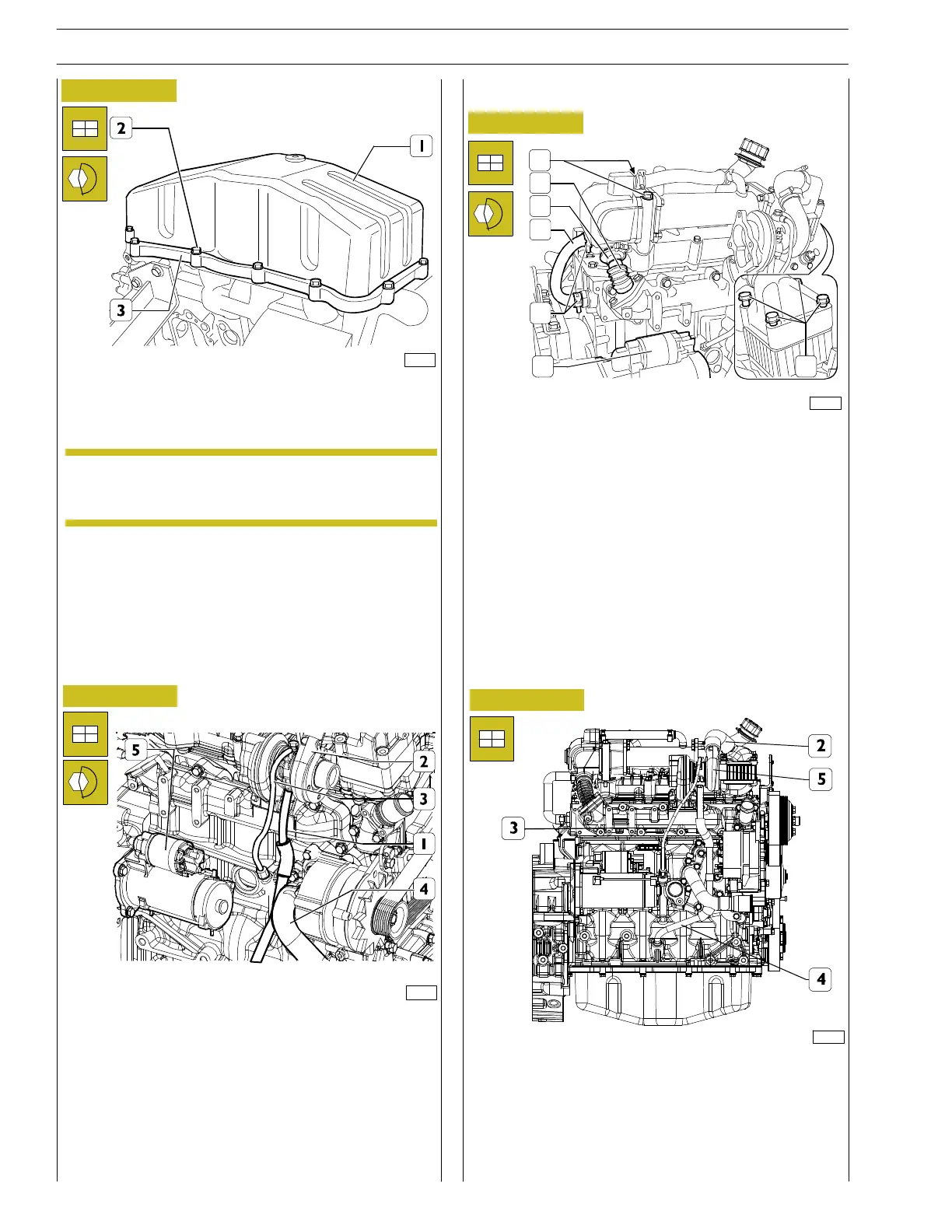

Figure 60
Figure 61
- Reassemble the turbocharger (5) unit.
- Reassemble the pipe (2) and fit the clip in the correc t
housing.
- Reassemble the oil delivery pipe (3) and the return pipe
(4).
119130
119104
Figure 62
- Place the whole E.G.R. on the intake manifold, tighten
the front side (5) and valve support (6) fastening screws
to the prescribed torque pair.
- Connect the pipe (4) to the E.G.R. valve housing and
then tighten the clip (3).
- Reassemble the pipe (2) and, using pinc ers, fit the
relevant clip (1).
- Fit the starter (7) and tighten the fastening screws to the
prescribed torque setting.
- Assemble the oil pan (1) and fit the plate thereon (3).
Tighten the fastening screws (2) to the prescribed
torque setting.
Before assembly, check th at the port threads and
the gaskets show no trace of wear or dirt.
NOTE
5
1
2
3
4
6
7
For F5CE9454, F5CE9484 engines
Figure 63
124496
- Reassemble the turbocharger (2) unit.
- Reassemble the pipe (4) and fit the clip in the correc t
housing.
- Reassemble the oil delivery pipe (3) and the return pipe
(1).
- Refit the starter (5) and tighten the fastening screws to
the prescribed torque setting.
For F5CE5454 engines
For all engines
24
SECTION 3 - INDUSTRIAL APPLICATION
F32 SERIES
Base - April 2009 Prin t P2D 32F005 E
