frako RM 9606 - Page 2

2
.
Ind
Cap
Made in Germany

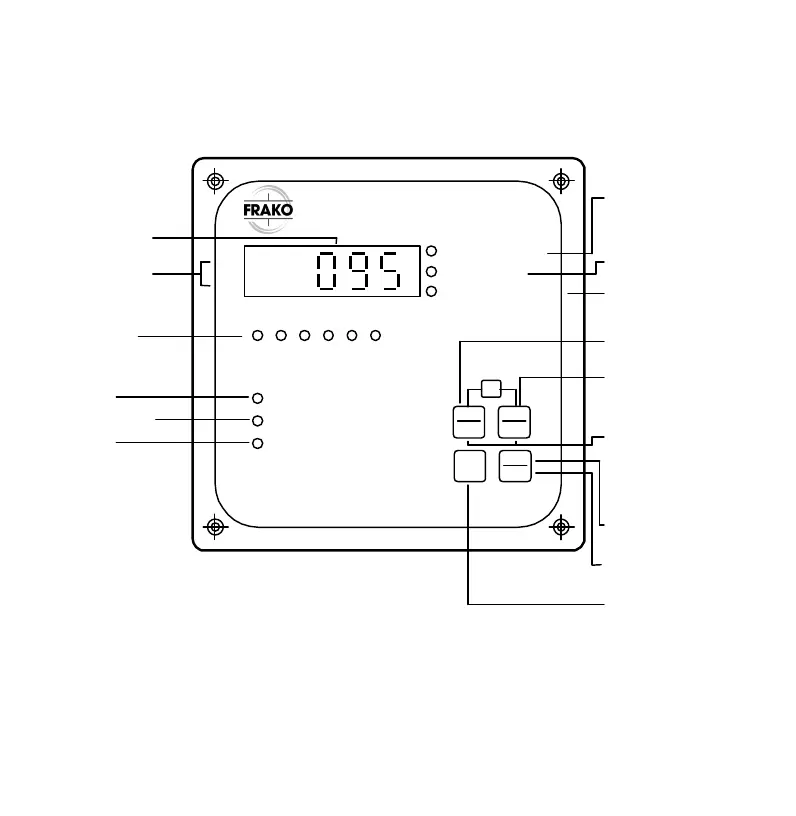

Fig. 1: View of Front Panel
Digital display
LED´s for
inductive or
capacitive mode
LED´s for
stages switched on
LED for alarm
LED for
power feedback
LED for
manual mode
or set-mode
+
_
RM 9606
Blindleistungsregler / Reactive Power Control Relay
cos phi / Power Factor
Harmonische / Harmonics
Ampere / Ampere
1 2 3 4 5 6
Rückspeisung / Regeneration
manuell / Manual
Alarm / Alarm
I
P
+ -
I
Q
Set
Man
Harm
I
S
LED for power
factor display and
alarm marker
LED for
harmonic display
and alarm marker
LED for
IQ , IP and IS and
alarm marker
Selection for IQ
display
Selection for IP display
display
(Selection for IS
display
press IQ and IP simul.)
Buttons to switch
capacitor stages off
and on manually (also
to alter preset values
during programming
operation)
Selection button for
automatic or manual
operation
Button to confirm
programme
Selection for harmonic
display
• IP = active current
• IQ = reactive current
• IS = apparent current
Figure 1: View of Front Panal
