Frank FC 711 M - How It Works

26
3.2 How it works

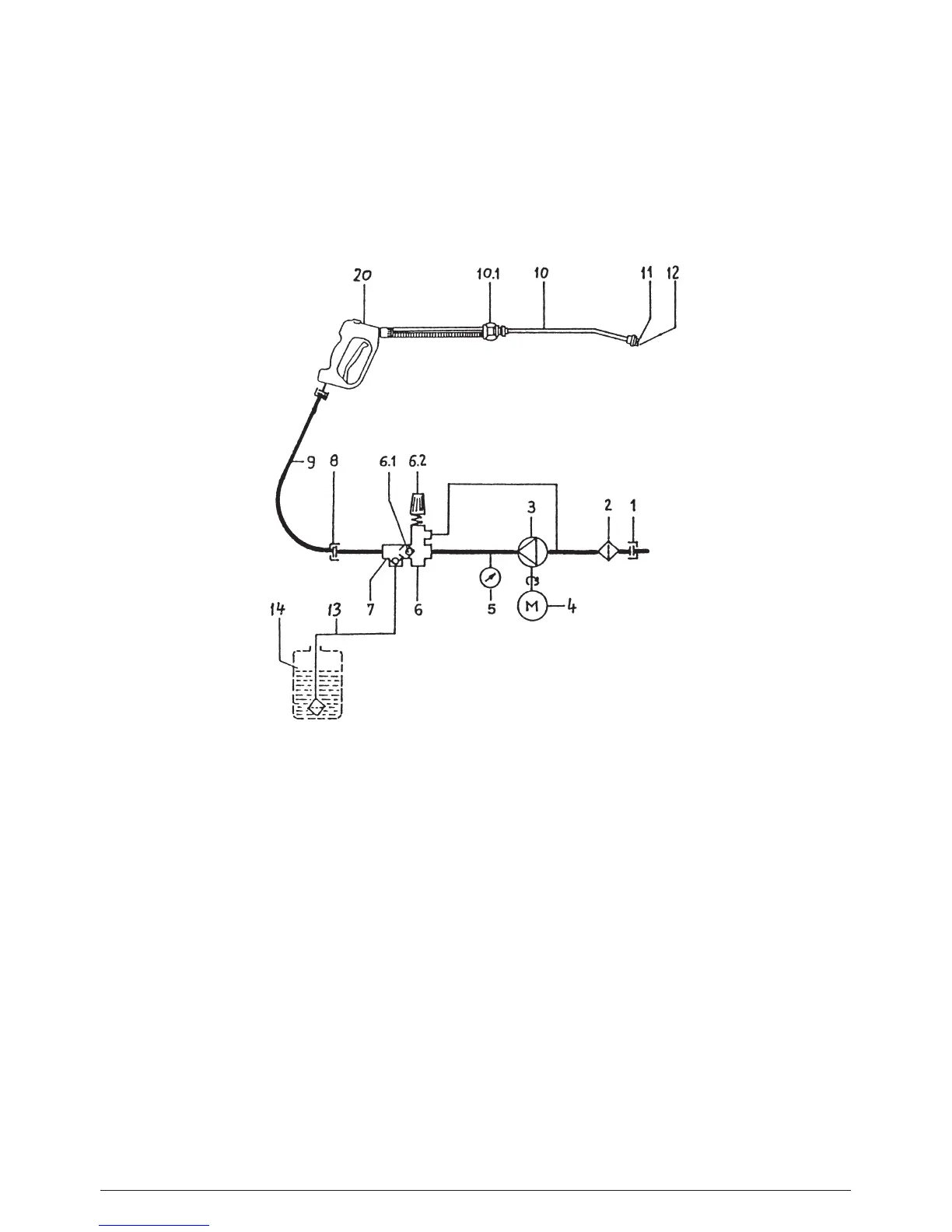

3.2.1 Functional diagram
M - Variant
1 Water connection supply 7 Injector
2 Water lter 8 High pressure connection
3 High pressure pump 9 High pressure hose
4 Electric motor 10 Duplex-Spray lance
5 Pressure gauge 10.1 Spray lance regulating valve
6 Overow/Safety valve 11 High pressure nozzle
6.1 Non return valve 12 Low pressure nozzle
6.2 Rotary handle for pressure 13 Chemical suction hose with lter
and ow regulation 14 Chemical tank (Additional equipment)
20 Spray gun M
