6. Battery replacement with the variant TCA
After approx. 200 service hours the signal lamp on the spray gun indicates a necessary bat-
tery replacement. Required batteries: 2 pcs. E-Block 9 V.

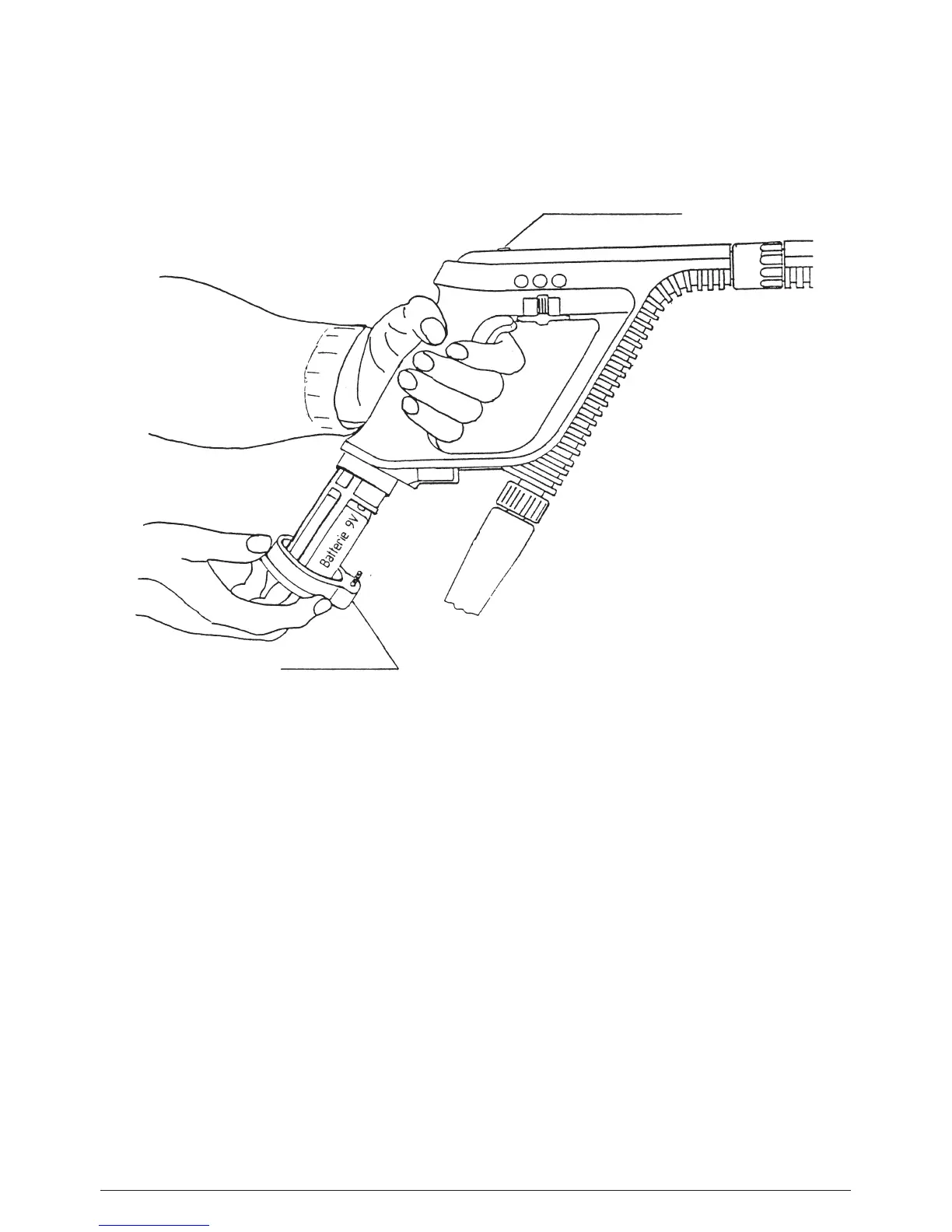

Loosen the screw of the battery cap underneath the spray gun handle and pull out cap to-
gether with battery holder and batteries.
Remove used batteries from the holder.
Insert new batteries with the plus pole on the inside, according to the indication on the bat-
tery holder, so that the battery is entirely resting against the inner area of the holder.
Insert holder with new batteries into the handle of the spray gun and press cap up to the limit
over the sealing ring. Retighten screw.
Battery holder with cap
Signal lamp
