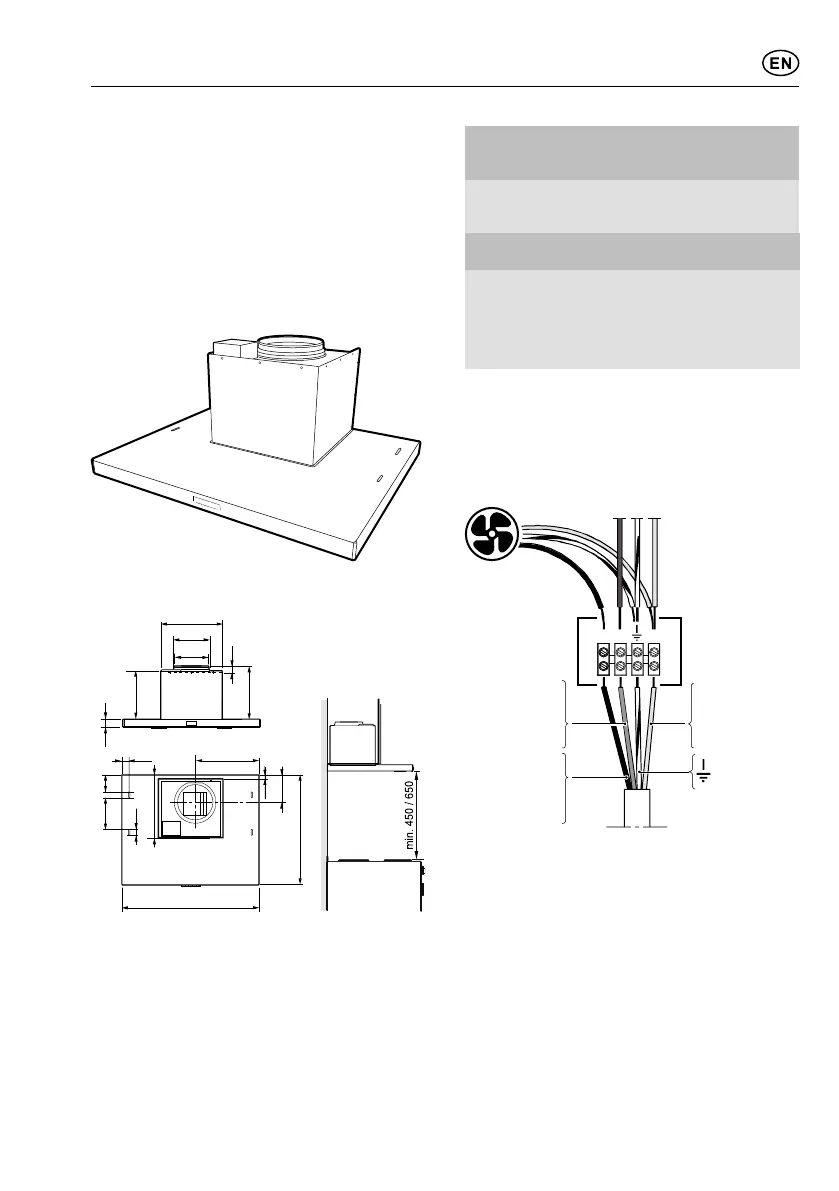

INSTALLATION
The cooker hood is intended for installation
under, built into or between cupboards. The
cooker hood has a transformer for control-
ling the central fan and the option of wet
room ventilation. The cooker hood is equip-
ped with electronic control, a motorised
damper, LED lighting and a metal mesh filt-
er. Installation, use, care, maintenance etc.,
are described in these instructions.
TECHNICAL INFORMATION
267
Ø160
Ø150
30
33
216
235
261
24
112
478
104
31
26
598
289
82
Fig. 1
Measure-
ments
see Fig. 1
Electrical
installation
230 V ~ earthed
Lighting LED 2 x 2 W
Output vol-
tage from
transformer
60, 80, 100, 130, 145
and 180 V
On delivery, 100 and 130
V are connected.
INSTALLATION
Fixing parts, screws for mounting, etc. are
supplied with the cooker hood.
Electrical installation
L N1
Brun
Brun
Brun
Ruskea
Svart
Sort
Svart
Musta
Blå
Blå
Blå
Sininen
Fig. 2
The connection must be secured and the
cooker hood must be preceded by an omni-
polar switch.
The junction box or wall socket must be ac-
cessible after installation is complete.
Assembly
Remove grease filter Fig. 11.
991.0357.831/D000000006694/180163/2021-09-24 11
