6 | Installation Franke Kaffeemaschinen AG
30 User manual A800

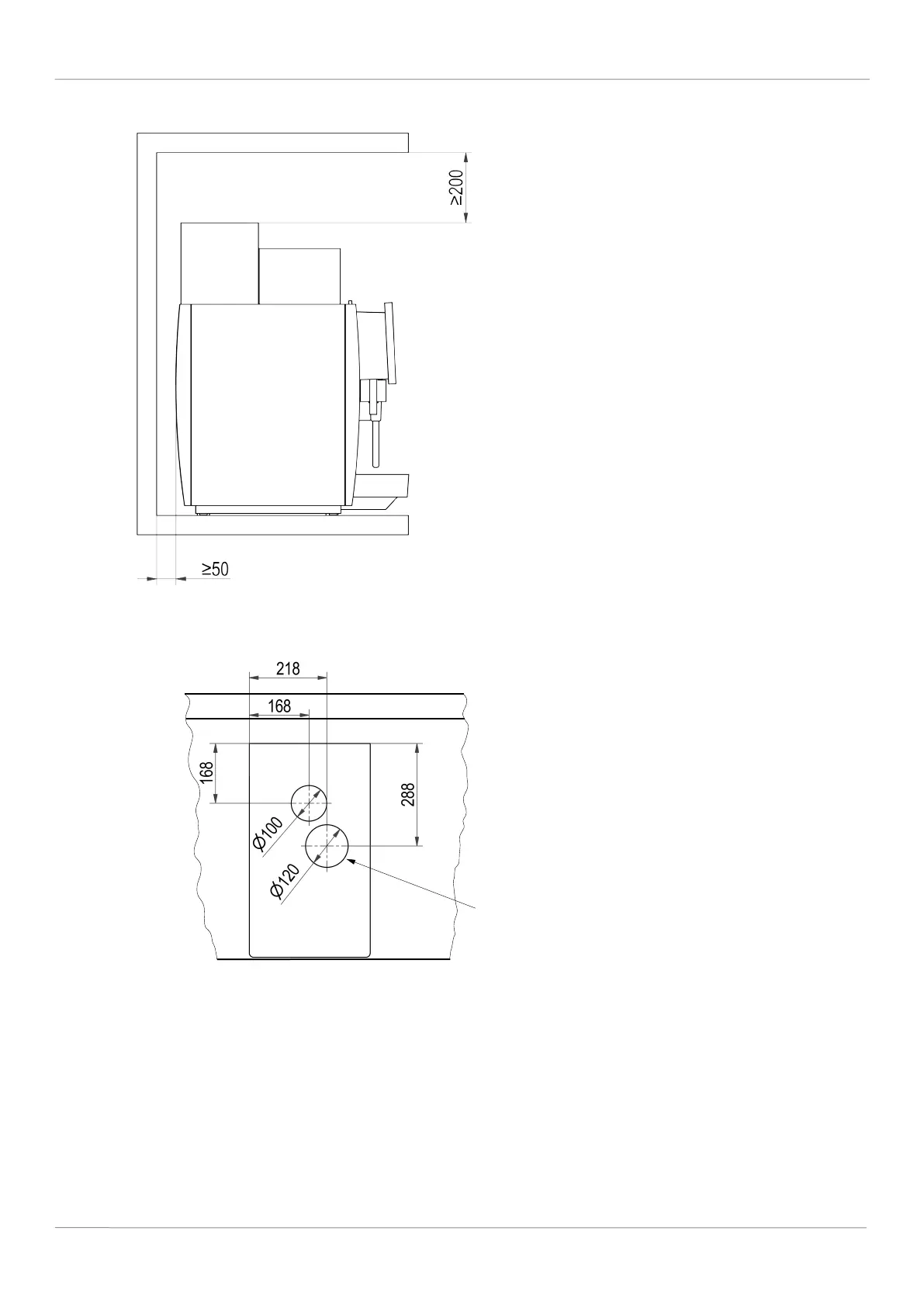

Minimum clearance, top and rear
Only for the coffee
grounds ejection
option
Hose feedthrough in the counter
Minimum clearances
– To the rear panel: 50 mm
– Above: 200 mm (for filling and removal of the bean hopper)
– To the right: 100 mm (for opening the door)
6.2.1 Feet
A800 is delivered with feet.
– Feet 40 mm (standard)
