1T 310'783 Operating Manual Ecolino / Ecopower Milk System Erstellt: 07.05.2002 Rev.: C SL: 20'987 BJC
page 6
1. GENEREL
ECOPOWER

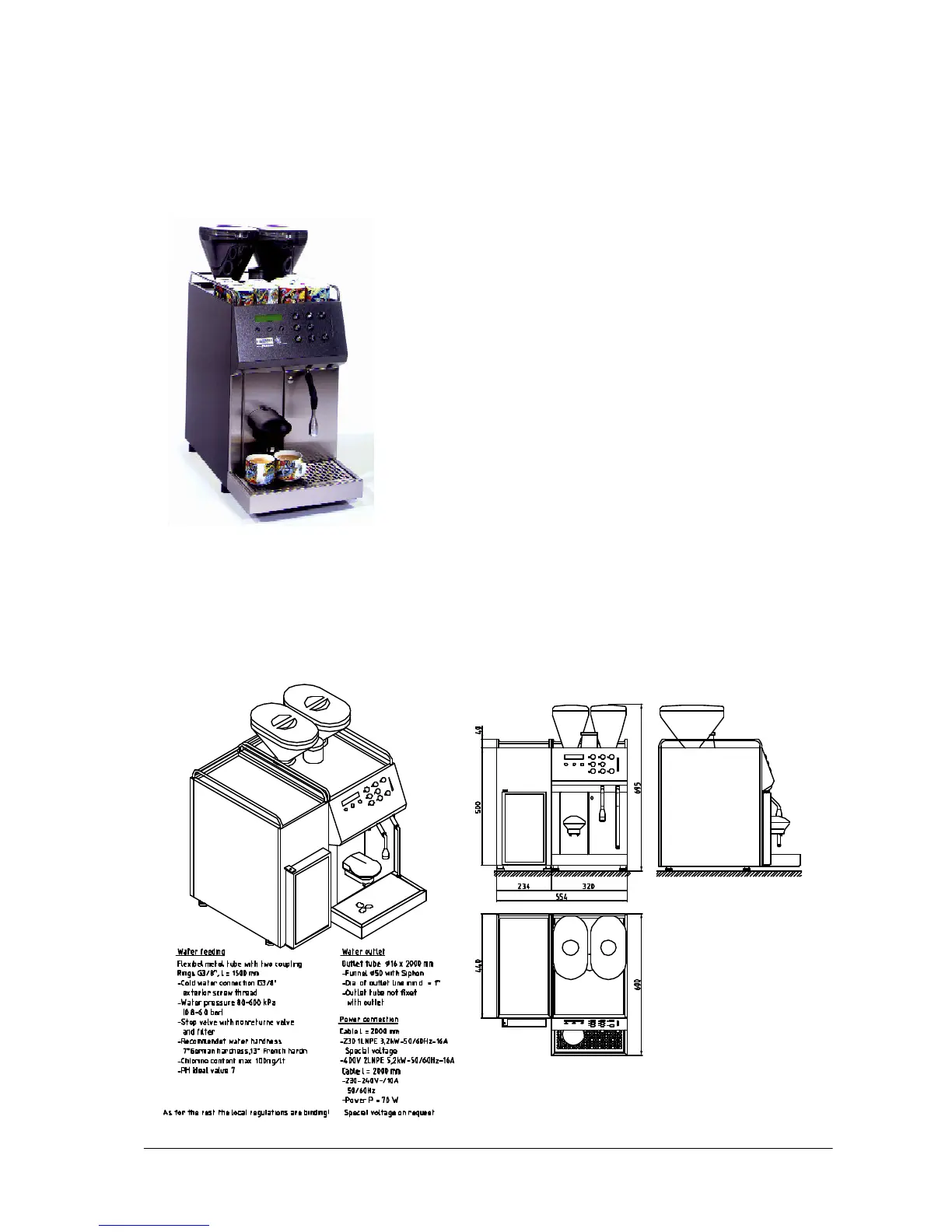

1.1.1 Installationsplan Ecopower Milk system
1. 1 Installation
Legend
1 Control unit
2 E.S.M. key
3 Chip Card reader
4 Product keys
5 Clean and "-" key
6 Stop and "+" key
7 Shift key
8 Coffee outlet
9 Tea outlet
10 Steam outlet
11 Coffee grounds container door
12 Pushbutton
13 Drip grille
14 Bean container left
15 Bean container right (option left grinder)
16 Filling hopper
17 Display
1
17
5
6 7
13
9 10
8
11
12
2
34
16
1514
