1.1.3 Water connection
- When a new coffee machine is installed, the pressure hose and the water pipe must be thoroughly
flushed.
- The coffee machine must be connected to a drinking water pipe with a tap. The premounted
pressure hose with a G3/8" screw connection on the pressure reducer is connected to the water
tap (adjust to 3 bar)
- The drain hose supplied is connected to the drip tray and to the trap. This is tightly fixed to the trap
and laid in a gradient.
- The water hardness must be 8-12 WH°. The chlorine content is max. 100 mg per litre. Otherwise,
the local provisions are binding.
- As option the Ecolino can also be operated without fixed water connection and siphon outlet. You
will find further information regarding the water tank operation under chapter 5.2.
1.1.4 Power connection Ecopower Milk System
Basic models Connected load Current
E II 2M H 3,2kW /16 A 230-240 Vac (PNE)
E II 2M HD (CF1/2) 3,2kW /16 A 230-240 Vac (PNE)
E II 2M H 2,6kW / 16 A 208 Vac (PNE)
E II 2M H D (CF1/2) 2,6kW / 16 A 208 Vac (PNE)
E II 2M H 5,2kW /16 A 400 Vac 2L (PNE)
E II 2M HD (CF1/2) 5,2kW /16 A 400 Vac 2L (PNE)
Otherwise, the local provisions are binding.

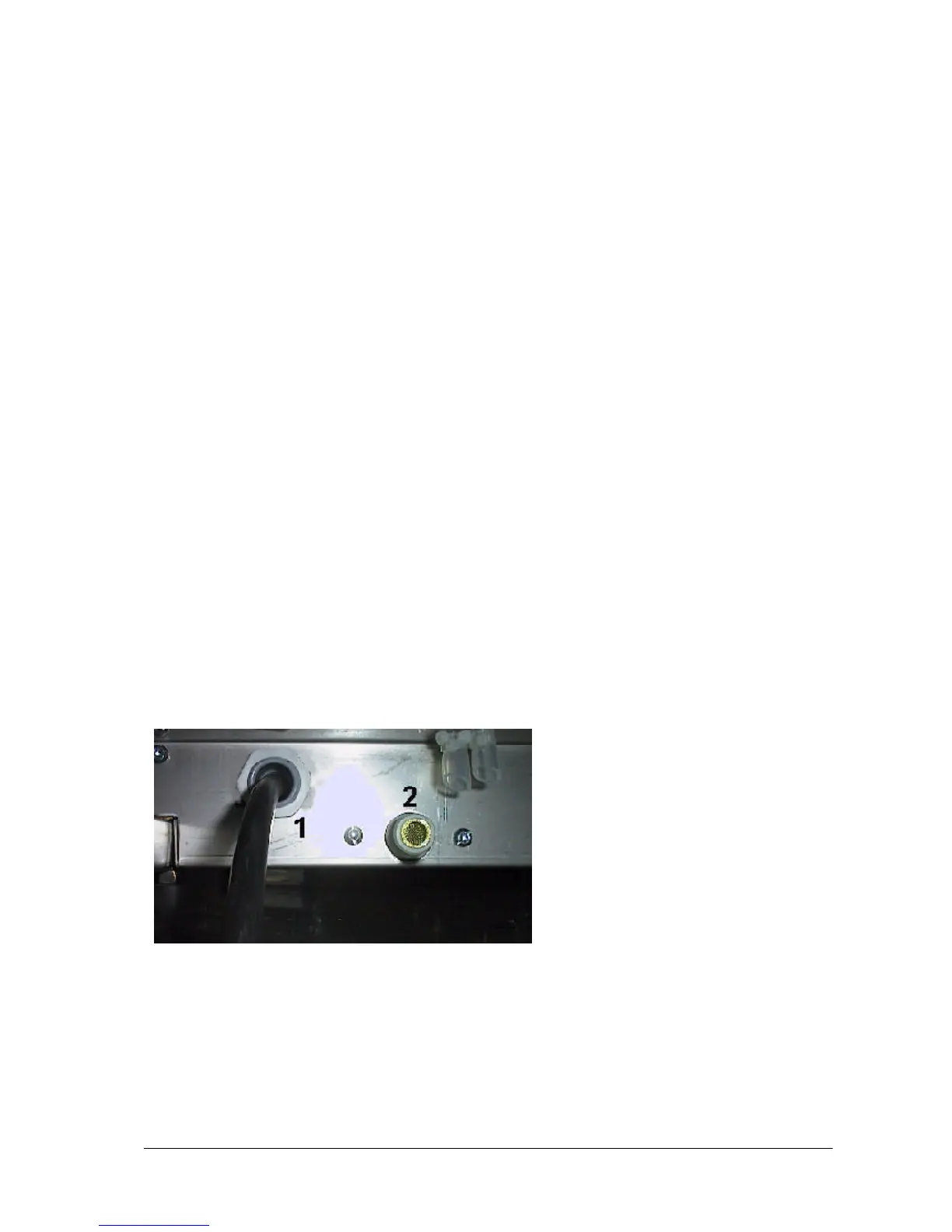

Legend:
1 Power connection (HO5VV-F)
2 Water connection (G3/8")
Proceed with care, plastic thread!
