Franke COMPACT T 400 - Page 7

5
11-03-2014 / LSC 178 / Rev. 00
400
T

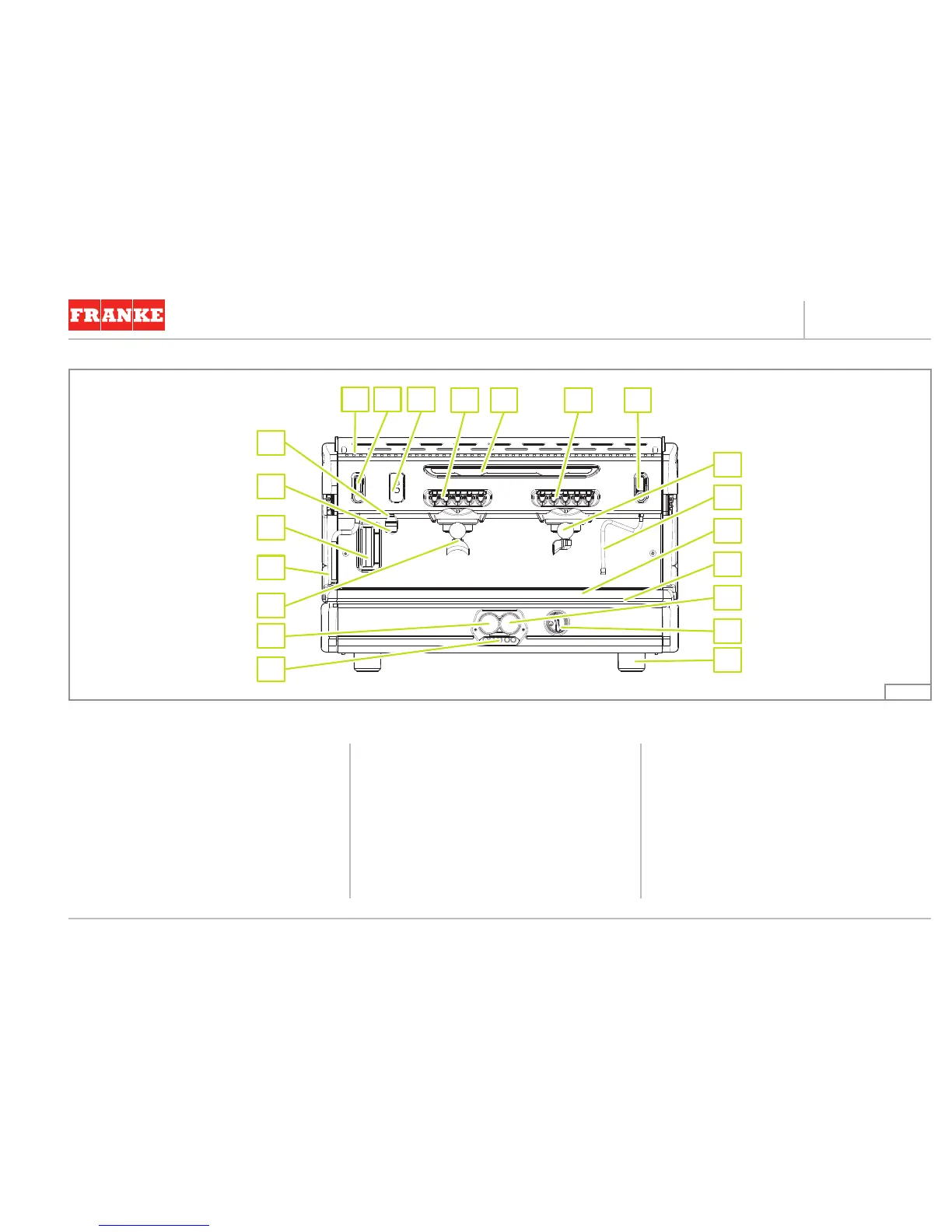

Fig. 3
T 400 AT
LEGEND
1. Top cup grid
2. Steam tap
3. Timed hot water delivery button
4. Touchpad
5. LED light display
6. Control panel
7. 2-cup filter holder
8. Right steam wand
9. Drip tray grid
10. Water drip tray
11. Boiler pressure gauge
12. Main on/off switch
13. Adjustable foot
14. Water mains gauge
15. Left steam wand
16. Water level glass
17. Hot water output
18. One-cup filter holder
19. Filling valve
4 4
3
1 2
2
5
16
17
19
15
7
14
6
13
12
11
10
9
8
18
