Franke SPECTRA X - Machine Dimensions and Installation Requirements

45678910
50min.
m
in. 200
842
520
400
582
125
178
h1 = 25
190
h2 = 50-60
h3 = 80-95
202
148
d
1
45678910
50min.
m
in. 200
842
520
400
582
125
178
h1 = 25
190
h2 = 50-60
h3 = 80-95
202
148
d
1
50min.
min.
2
0
0
45678910
50min.
m
in. 200
842
520
400 582
125
178
h1 = 25
190
h2 = 50-60
h3 = 80-95
202
148
d
1
45678910
50min.
m
in. 200
842
520
400 582
125
178
h1 = 25
190
h2 = 50-60
h3 = 80-95
202
148
d
1
Installation and technical data
Page 13
40 mm (1 ½") foot 842 mm + 25 mm = 867 mm
70 mm (2 ¾") foot 842 mm + (50 to 60) mm = 892 to 902 mm
100-mm (4") foot 842 mm + (80 to 95) mm = 922 to 937 mm
Adjustable feet (optional)

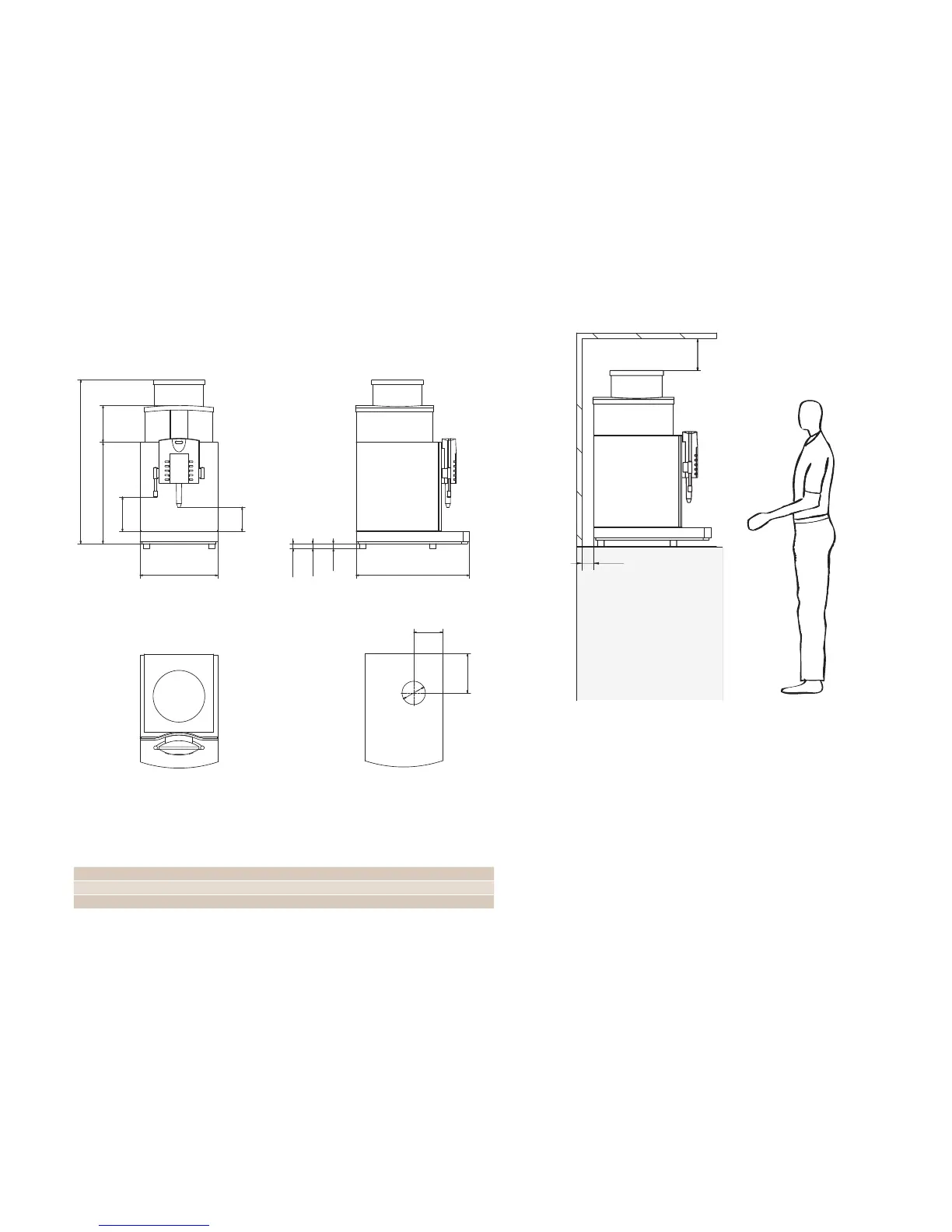

Cross-section from above (grommet hole)Top view
Side viewFront view
Prepare a stable, ergonomic surface (min. load capacity: 150 kg or 330.7 lb). The
control unit should be at eye level.
Distance to the wall must be at least 50 mm. Clearance above the
machine must be at least 200 mm.
Adjustable feet (optional) can be used to compensate for uneven-
ness or height differences.
If optional add-on units are installed, up to an additional 300 mm
may be required per add-on unit.
Observe the connection requirements of the add-on units.
Installation dimensions of the Spectra X-XLDimensions of the Spectra X-XL
