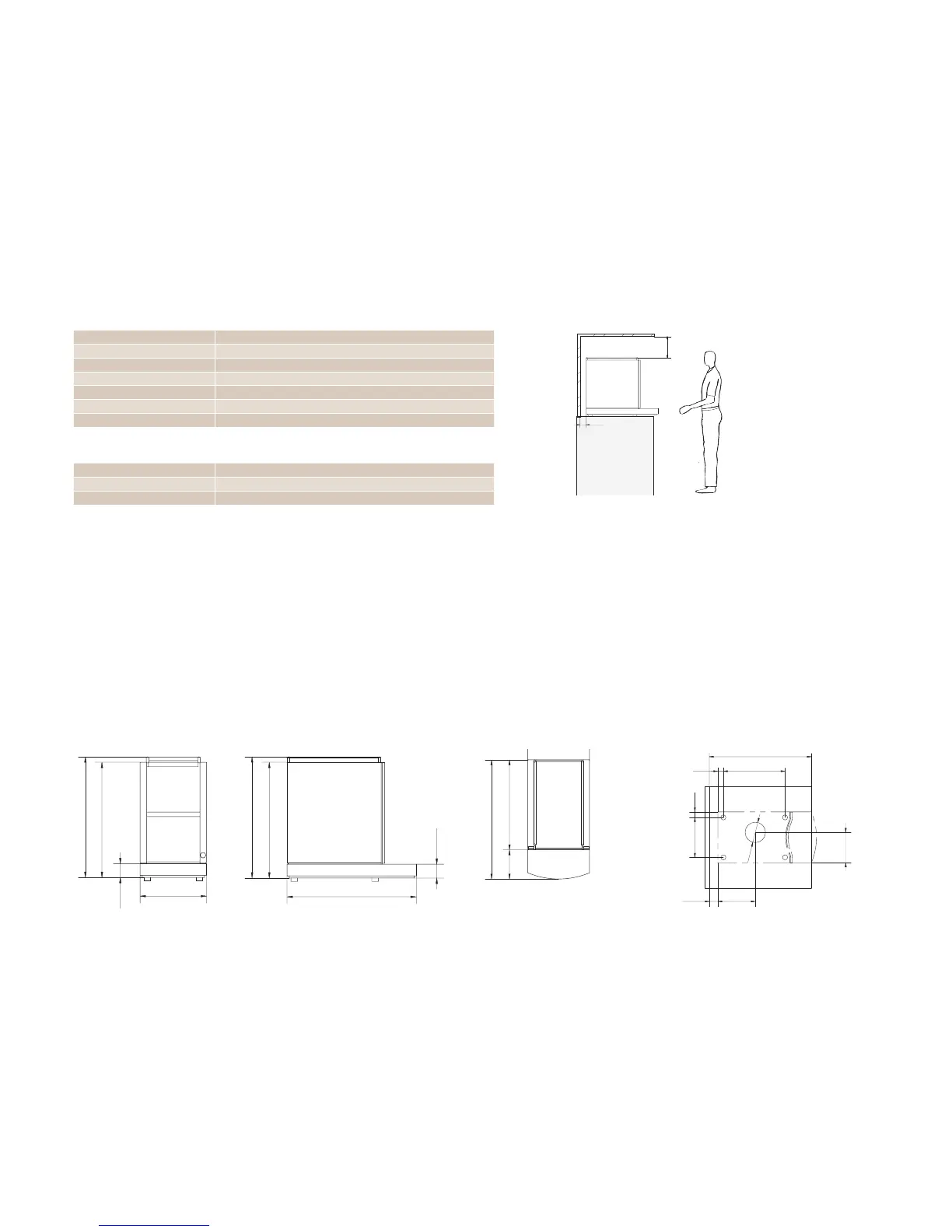

Installation and technical data Page 14
Grommet holeTop viewSide viewFront view
Dimension of cup warmer (as an example)
40 mm (1 ½") foot 520 mm + 40 mm = 560 mm
70 mm (2 ¾") foot 520 mm + 70 mm = 590 mm
100-mm (4") foot 520 mm + 100 mm = 620 mm
Adjustable feet (optional)
Capacity up to 120 cups (depending on cup size)
Electrical connection 200 - 240 V1L N PE300 W50/60 Hz Fuse: 10 A
Electric cable 2000 mm
Weight 17 kg
Width 300 mm (11¾")
Depth 580 mm
Height 545 mm
Technical data for the cup warmer
Place the add-on units in line with the machine name and at eye
level.
Distance to the wall must be at least 50 mm. Clearance above the
machine must be at least 200 mm.
Adjustable feet (optional) can be used to compensate for uneven-
ness or height differences.
If optional add-on units are installed, up to an additional 300 mm
may be required per add-on unit.
Add-on unit installation dimensions
