FRANKIA OPERATING MANUAL38 FRANKIA OPERATING MANUAL 39

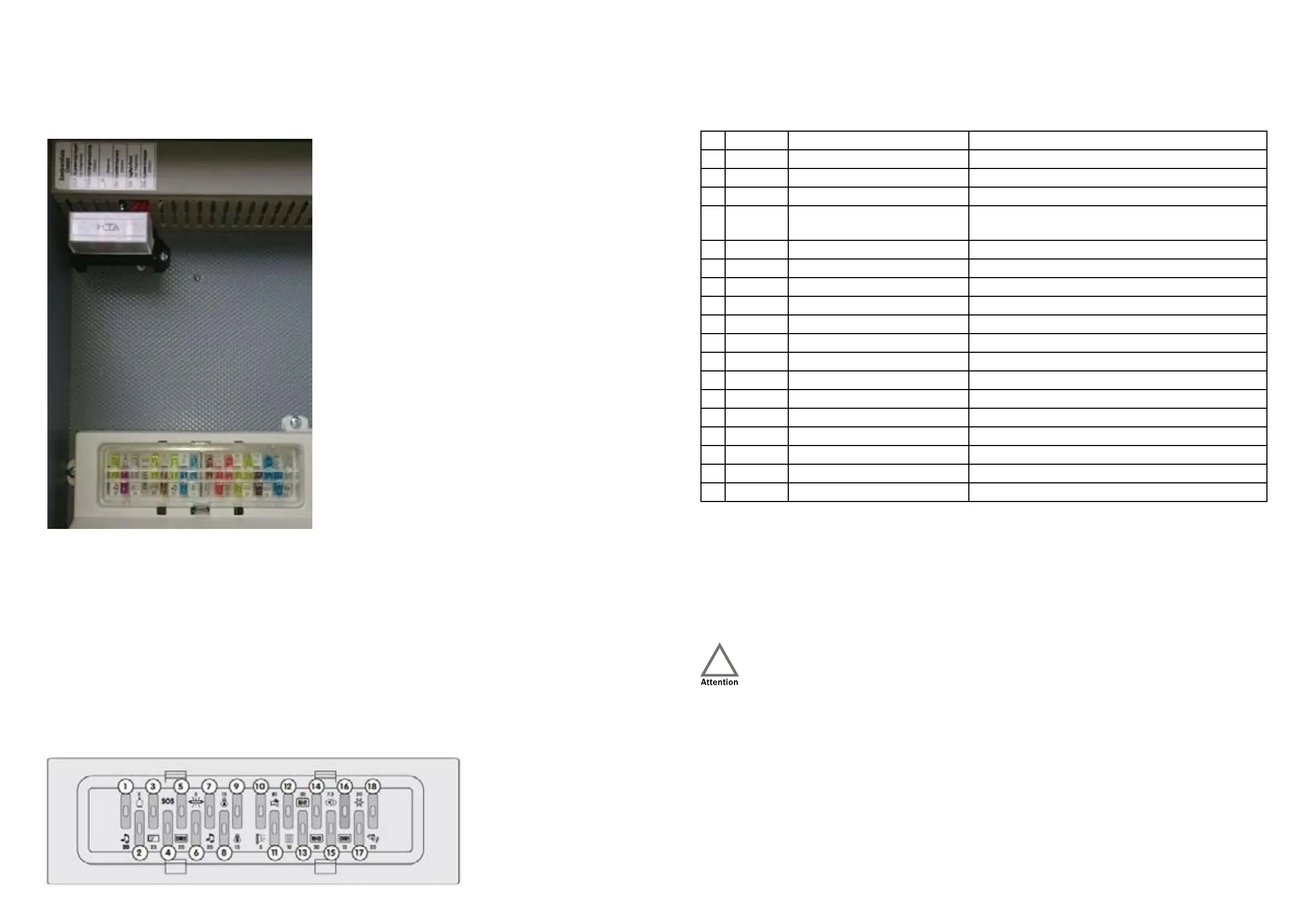

4.3 Fuses 12 Volt | 12 volt fuses from the vehicle battery (additional distribution chassis)
The following fuses are located in the 6-way fuse holder
in the electrical board (see also position A in the photo in
Chapter 4.1):
A) 20A wing mirror (Coachbuilt only)
B) 15A trailer coupling (option)
C) __A (Reserve)
D) 5A reversing camera (option)
E) 5A daytime running lights (Coachbuilt only)
F) 2A outside flap (option)
In all vehicles, fuses for the additional chassis distribution
(40A MaxiVal) for line protection are located in the battery
compartment under the floor of the driver‘s cab.
The protection of the supply line for the 12V distribution is
also housed here.
For vehicles without an inverter:
FIAT 50A
Mercedes-Benz 60A
For vehicles with an inverter:
FIAT 125A
Mercedes-Benz 125A
Fuses 12 Volt (Battery):
The main fuse for the 12 volt power supply in the body is located directly next to the body battery.
For vehicles without an inverter: For vehicles with an inverter:
50A 125A
Installation of the fuse circuits on the 12V electrical distribution DS 470:
The fuses for the interior lighting are located on the 12V distribution. If a fuse is defective here, this is signalled by a red
LED under the fuse. The safety circuits 1 to 18 are set up according to the following scheme:
A B C D E F
Fuse assignment:
Nr.:
Value: Description Function
1 20A Multimedia 1 Radio, Subwoofer
2 3A Truma Ice-Ex Heating cartridge on the gas pressure regulator
3 25A Drop-down bed Drop-down bed, awning
4 SOS See instruction manual CBE In an emergency, a fuse (any value) can be inserted to
activate basic functions
5 20A/25A DIR2 Fuse SOLAR
6 5 A switched lights Reserve
7 20A Multimedia 2 TV
8 15A Lighting group A Circuit 1
9 15A Lighting group A Circuit 2, Circuit 5
10 5 A Awning lights Awning lights / motion detector
11 10A Water pump Fresh water pump
12 10A Heater Supply heating Alde/Truma
13 20A RH1 Reserve 1
14 20A RH2 Front blind
15 7.5A Sidemarker Sidemarker lights
16 15A DIR1 Circuit 4, satellite system, radio
17 30A Refrigerators Supply fridge
18 25A Step Supply step
Circuit 1 Consumers in the passenger compartment on the passenger side
Circuit 2 Consumers in the passenger compartment on the driver side
Circuit 3 Not used or options
Circuit 4 Ceiling lighting complete
Circuit 5 Indirect lighting or options
The supplied consumers and their fuses can also be found in the operating instructions of the company CBE.
Defective fuses indicate a fault in the circuit.
Please have the relevant devices checked.
4.4 Central locking
The vehicle has a central locking system for controlling the cab and body door.
• FIAT A-class and Low-Profile: Driver, front passenger and body door via ignition key
• FIAT Coachbuilt: Driver and body door via ignition key
• Mercedes-Benz Low-Profile: Driver and front passenger door via ignition key, body door via separate remote control
• Mercedes-Benz Coachbuilt: Driver and body door via ignition key
