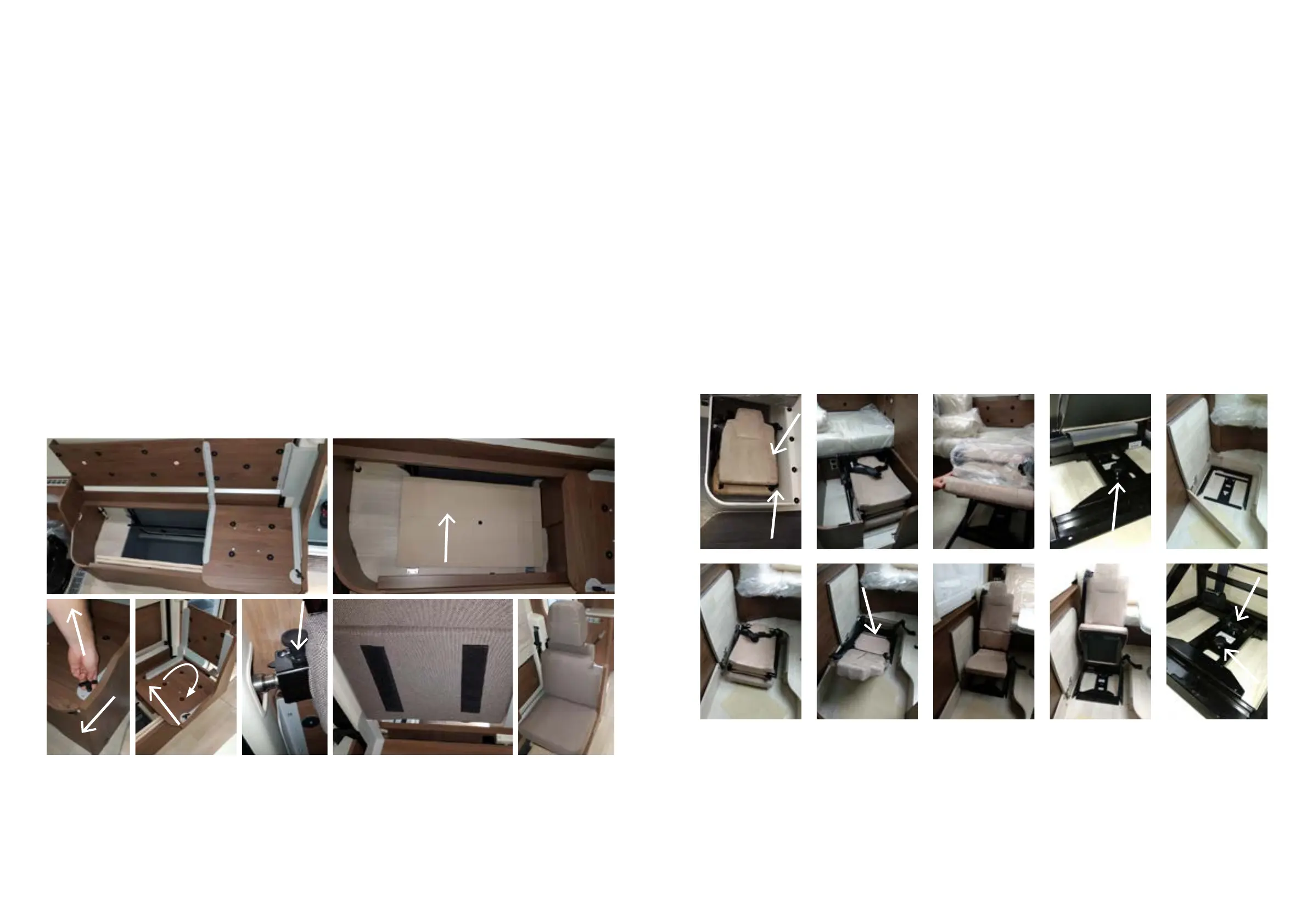

6.9 1-person seat belt system on side seating group / L seating group (=option)
The 1-person seat belt system from FRANKIA allows you to sit buckled in the direction of travel.
• First remove the seat and back cushions on side benches.
• To unlock the swivel seat, pull up the locking pin A and pull the seat to the centre of the vehicle as far
as it will go.
• Rotate the seat in the direction of travel and push it out again. Release the locking pin until the lock
engages.
• Fold out the storage floor cover (serves as a footrest)
• Push the headrest bracket onto the bolt until locking bolt B engages
• Put on additional back cushion C and seat and back cushion.
• To dismantle, first pull the locking pin B on the headrest bracket and pull it out.
• Unlock the seat using the locking pin A and then proceed in reverse order.
• The headrest can be completely stowed in the L-shaped seating group.
A
B
C
Folding seat with 1-person belt system in round seating group (option for 840/8400 Plus):
In FRANKIA 840/8400 Plus floor plans, belt seats are folded up in the round seating group.
• First remove the front back and seat cushions of the round seating group to access the folding seat.
• Remove the front panel
• Lift the upholstery by 45° and loosen the screw with the star handle (A).
• Open the cover on the floor and also remove the front panel
• Then carefully insert the seat into the guide rails and use lever B to unfold the backrest
• Now fold the entire backrest upwards (lever C)
• Lift the seat cushion to fix the seat with the 2 star grip screws (C and D).
C
B
A
B
D
C
