ASSEMBLING THE ENGINE ASSEMBLING THE ENGINE
22 23

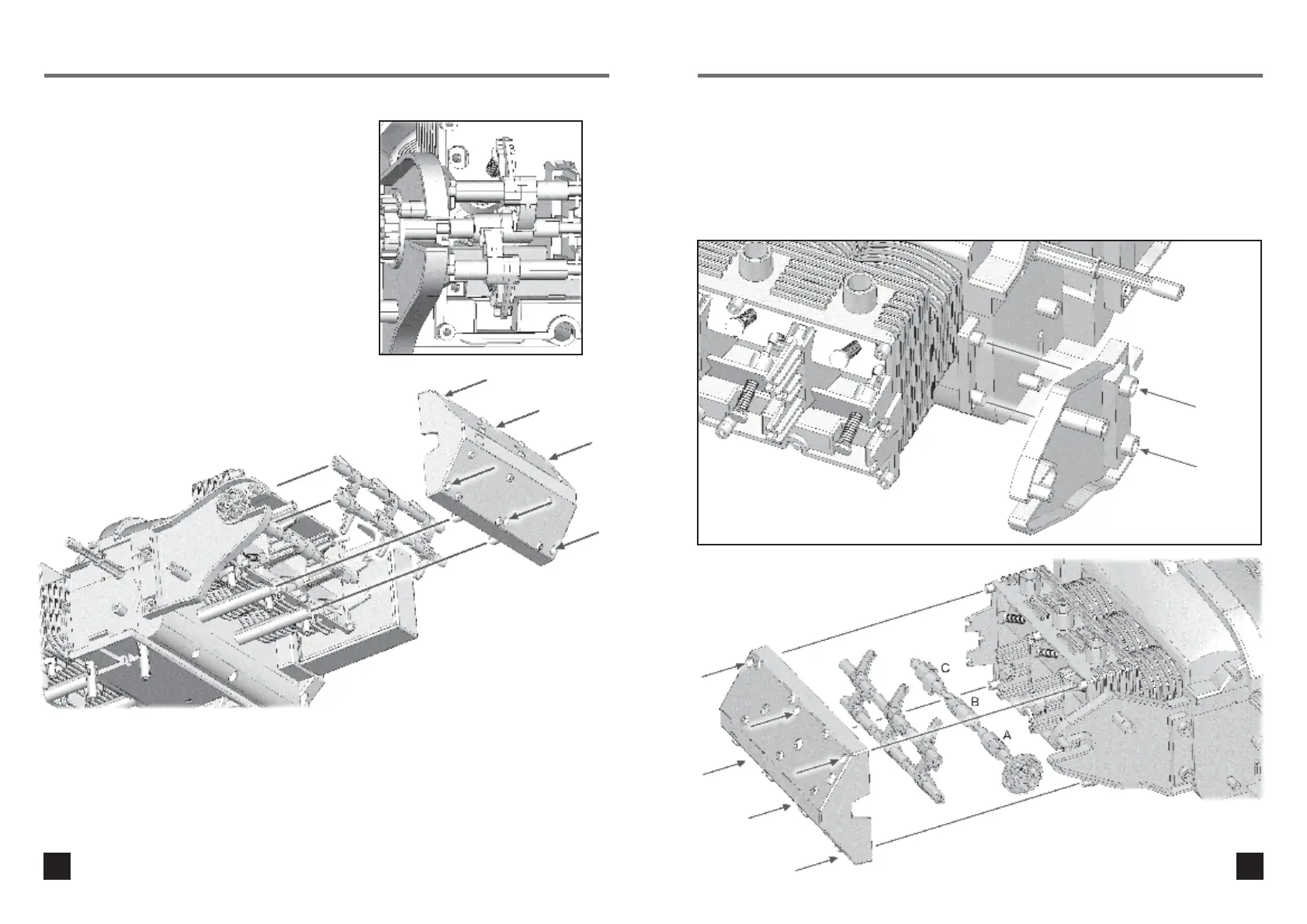

Step 16. Cylinder head –
left side
Repeat steps 11 to 14 for the left hand side of
the engine. Note the position of cams A, B and
C, making sure the ribs on each point towards
the rear of the engine.
Step 15. Rocker shaft
assembly – right side
Place the rocker shaft assemblies for the inlet
and exhaust valves on to the cylinder head
(refer to the inset picture for guidance). Use
your fingers to separate the rockers so that
each sits between the bearings that hold the
shaft. The ends of each rocker shaft should be
level with the end of the cylinder head.
Place the cylinder head cover (53) in position.
Note the correct orientation - the two tubes
moulded into the bottom edge should be
inserted into the ends of the oil return pipes.
Secure with six screws.
