67 Drive gear
68 Crankshaft
gear
69 Distributor
gear
76 Crankshaft
gear C
Distributor
bush
75 Crankshaft
gear B
Base
Distributor and
plugs
Motor assembly
Rocker and cam shafts
Valve spring
Fan belt
Head gasket
Timing belts
78 Fan
housing
rear cover
52 & 53 Upper cylinder head

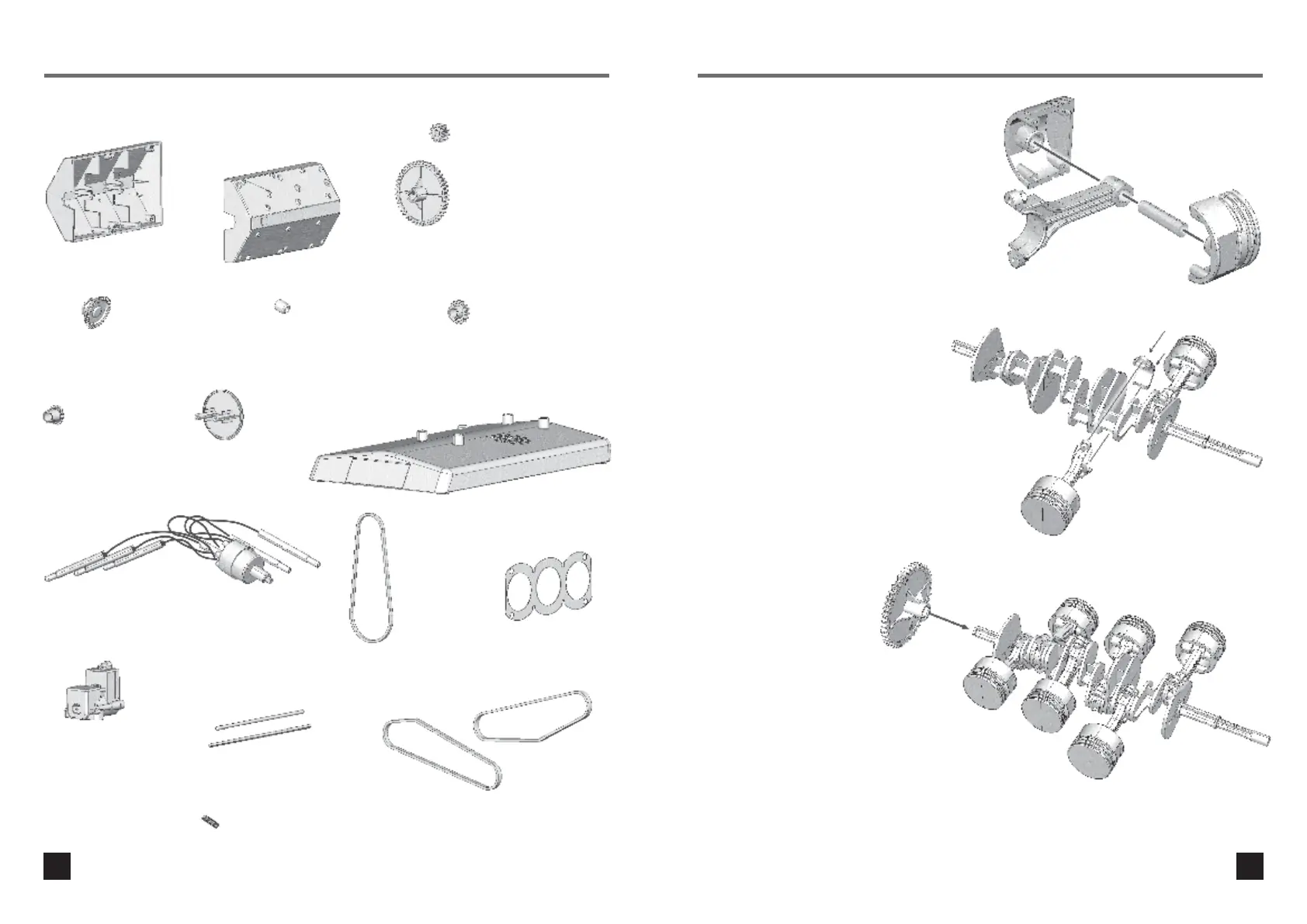

PARTS LIST ASSEMBLING THE ENGINE
14 15
Step 1. Pistons
Push a gudgeon (piston) pin (13) through the
small end of a connecting rod (1). Push two
halves of a piston (2) together over the pin and
press together firmly.
Repeat for the other five piston/rod assemblies.
Step 2. Crankshaft
The six connecting rods attach to the
crankshaft (41) in the positions shown.
In each case, place the connecting rod over the
crankshaft, fit a bearing cap (4) and secure with
two screws.
Check that the piston/connecting rod
assemblies rotate freely around the crankshaft.
Step 3. Crankshaft
drive gear
Fit the crankshaft drive gear (68)
to the end of the crankshaft.
