ASSEMBLING THE ENGINE ASSEMBLING THE ENGINE
32 33

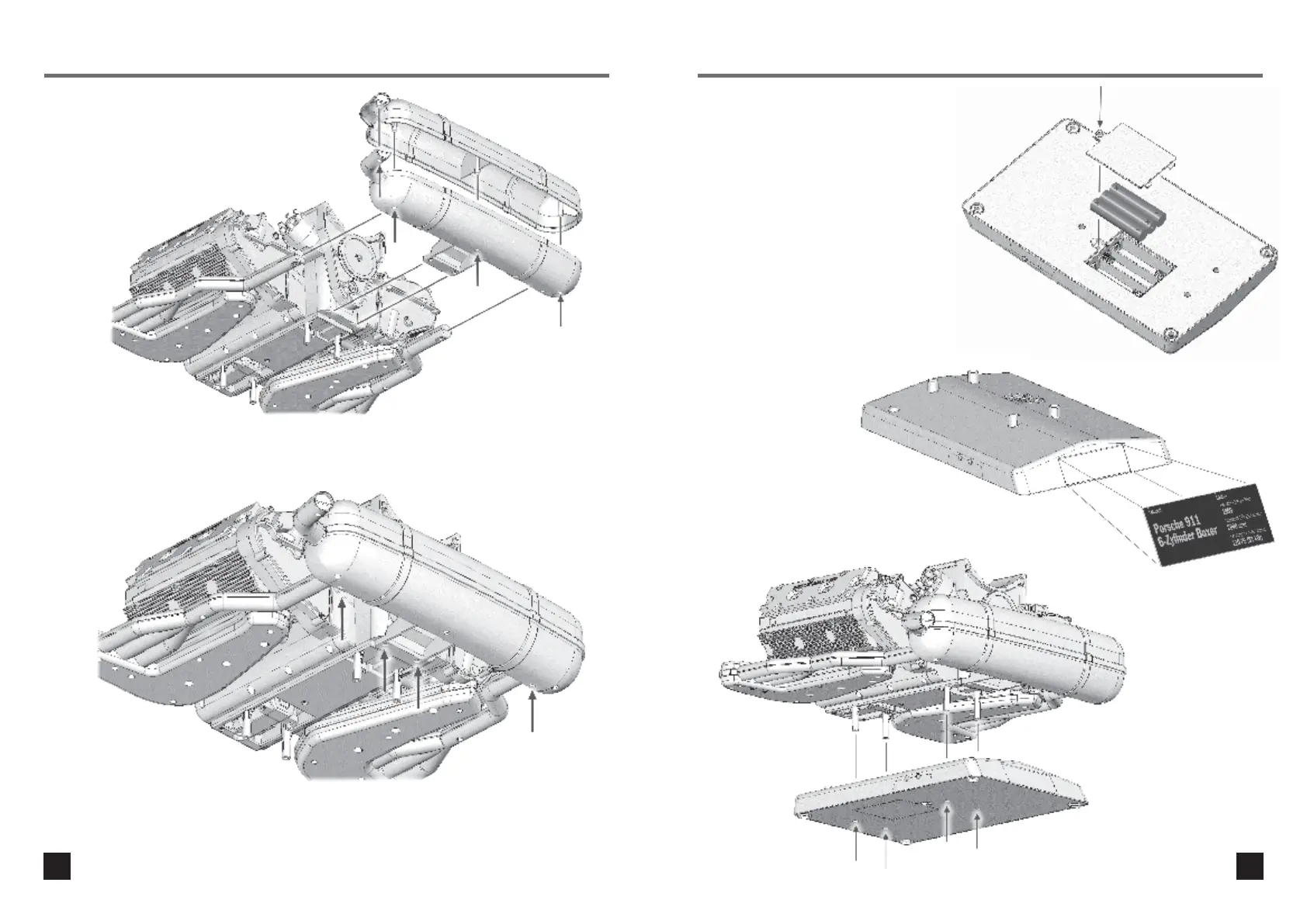

Step 34. Base - battery
installation
Remove the battery compartment cover. Insert
3 x AA batteries in the compartment, taking
care to ensure that the battery markings
(polarity) match the markings in the
compartment. Replace the battery cover.
Step 33. Exhaust muffler
Assemble the two halves of the exhaust muffler
(19 & 20) and secure with four screws.
Slide the muffler over the ends of the exhaust
pipes. The muffler is secured to each exhaust
pipe with a single screw, and to the crankcase
with two screws.
Step 35. Base label
Remove the foil label from the backing paper
and place in position on the base.
Step 36. Base
Attach the base to the bottom of the crankcase
and secure with four screws.
