ASSEMBLING THE ENGINE ASSEMBLING THE ENGINE
28 29

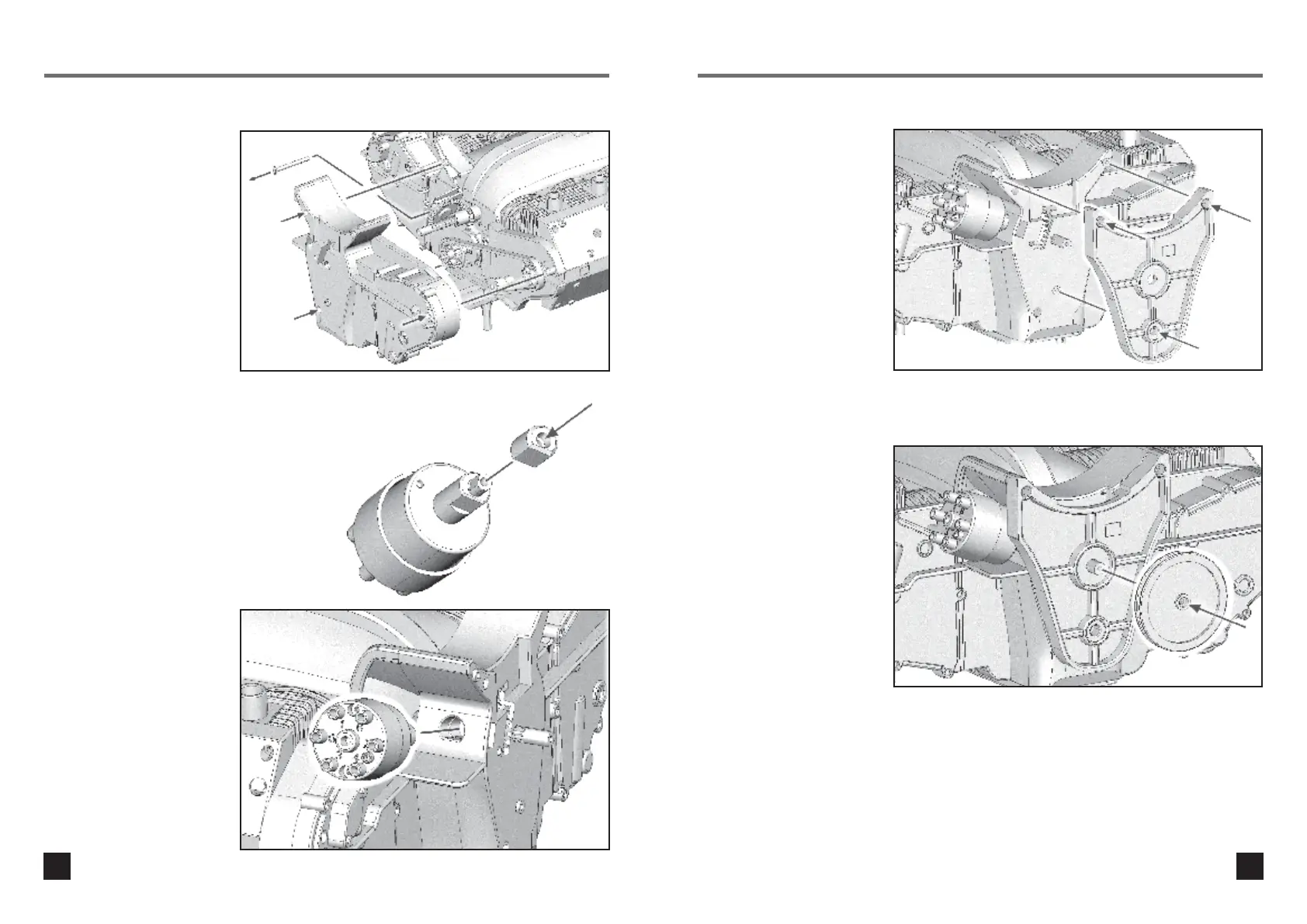

Step 27. Engine front
Attach the engine cover plate
and secure with three screws.
Step 28 Crankshaft
pulley wheel
Fit the pulley to the end of the
crankshaft and secure with
a screw.
Step 25. Cam belt cover –
right side
Remove the valve timing tool
and the bevel gear locking pin.
Place the right hand cam belt
cover in position and secure
with three screws.
Step 26. Distributor
Fit the distributor bush (74) to the end of the
shaft and secure with a screw. One end of the
bush has a recess for the screw; this must face
outwards, as shown.
Fit the distributor – it is a friction fit in the
crankcase. The flat surface on the distributor
shaft and bush match the flat surfaces
of the crankcase and bevel
gear. The bevel drive gear for
the distributor MUST be in the
correct position in order for the
distributor shaft to be fully
inserted.
