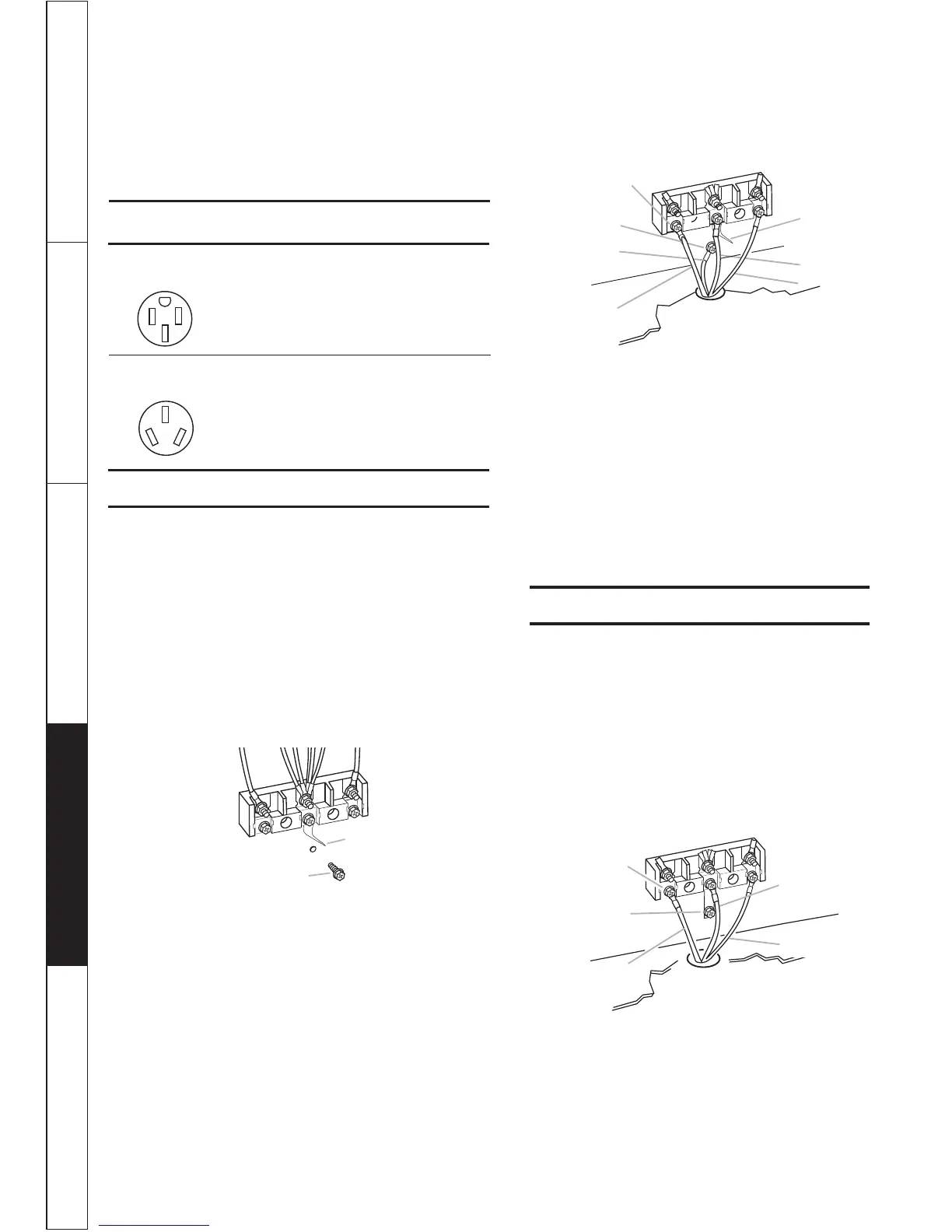

Electrical Connection Options
If your home has: And you will be Go to Section:
connecting to:
4-wire receptacle A UL listed, 4-wire connection:
(NEMA type 14-50R) 250-volt Power supply cord
minimum,
40-amp, range
power supply cord
3-wire receptacle A UL listed, 3-wire connection:
(NEMA type 10-50R) 250-volt Power supply cord
minimum,
40-amp, range
power supply cord
4-wire connection: Power Supply Cord
Use this method for:
 New branch-circuit installations (1996 NEC)
 In an area where local codes prohibit grounding
through the neutral
1. Remove the ground-link screw from the range frame.
Save the ground d link screw . Bend the ground-link
away from the range so that it does not contact the
range.
4. Connect the neutral (center) wire to the center
terminal connector using one of the hex washer
head screws. Securely tighten screw for proper
electrical connection.
A. Line 1 E. Neutral (center) wire
B. Ground-link F. Line 2
C. Hex washer head screw
5. Connect the other 2 wires (lines 1 and 2) to
the outer terminal screws on the terminal block.
6. Securely tighten screws for proper electrical
connection.
7. Replace terminal block cover.
A. Line 1
B. Green ground wire
C. Ground-link screw
D. Hex washer head screw
F. Ground-link
G. Neutral (center) wire
H. Line 2
3. Connect the other 2 wires (lines 1 and 2) to
the outer terminal screws on the terminal block.
4. Replace terminal block cover.
3-wire connection: Power Supply Cord
Use this method only if local codes permit
connecting cabinet-ground conductor to neutral
wire of power supply cord.
1. Use a ¼" nut driver and remove the hex washer
head screws from the terminal blocks.
2. Connect the neutral (center) wire to the center
terminal connector using one of the hex washer
head screws. Securely tighten screw for proper
electrical connection.
A. Ground-link screw
A
C
C. Ground-link bent away from range
2. Connect the green ground wire from the power supply
cord to the range using the ground-link screw.
The ground wire must be attached first and must not
contact any other terminal.
3. Use a ¼" nut driver and remove the hex washer head
screws from the terminal blocks.
