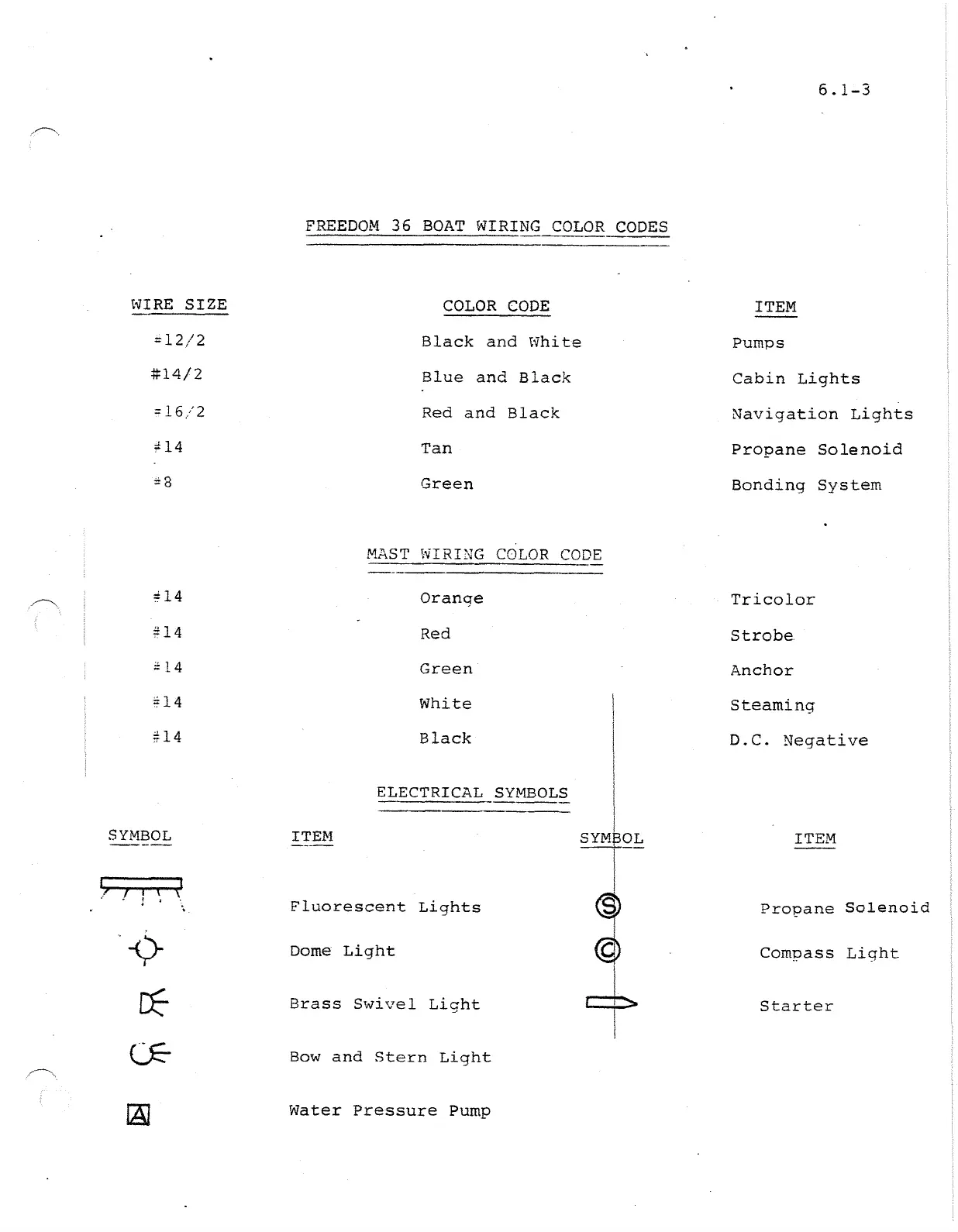

FREEDOM 36 BOAT WIRING COLOR CODES
WIRE SIZE
= 12/2
#14/2
= 1 6 / 2
#14
= 3
COLOR CODE
Black and White
Blue and Black
Red and Black
Tan
Green
= 1 4
#14
*14
= 14
#14
SYMBOL
V / j \ T*
c£ *
si
MAST WIRING COLOR CODE
Orange
Red
Green
White
Black
ELECTRICAL SYMBOLS
ITEM
SYMBOL
Fluorescent Lights
Dome Light
Brass Swivel Light
Bow and Stern Light
Water Pressure Pump
ITEM
Pumps
Cabin Lights
Navigation Lights
Propane Solenoid
Bonding System
Tricolor
Strobe-
Anchor
Steaming
D.C. Negative
ITEM
Propane Solenoid
Compass Light
Starter
