Chapter 2 Assemble Smart Car
█ www.freenove.com
Step 1

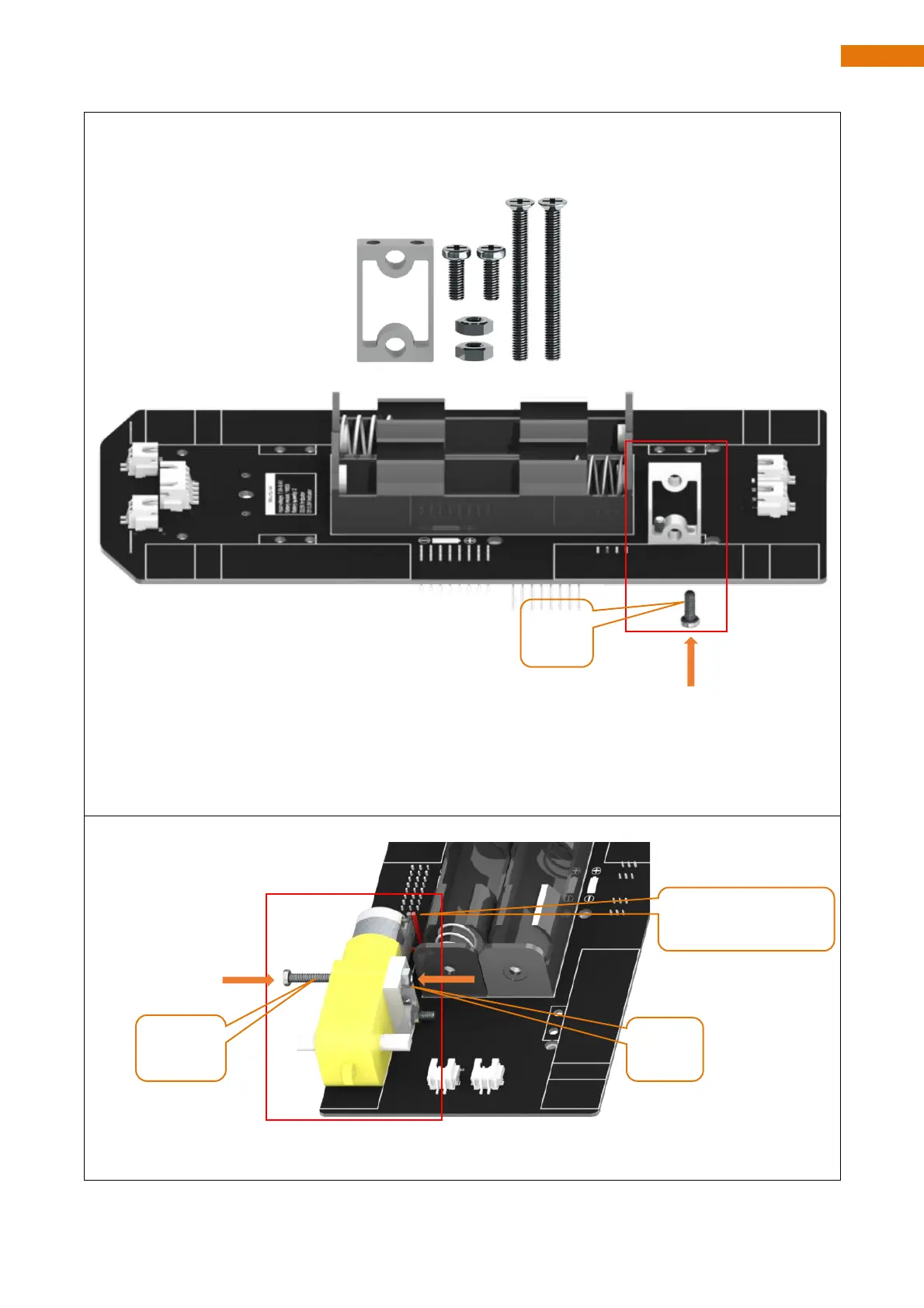

There are 4 bracket packages to fix motors, each containg an aluminum bracket, two M3*30 screws, two
M3*8 screws and two M3 nuts, as shown below:
Install motor bracket with M3*8.
You can also attach this bracket to motor first.
Step 2
Install motor to bracket with M3*30 screw and M3 Nut.
M3*30
Screw
M3
Nut
Keep the side with
wire toward inside.
Screw
M3*8
