Freenove 4WD Smart Car Board for Raspberry Pi User Manual

Need support?  support.freenove.com
48
Chapter 2 Assemble Smart Car
www.freenove.com █
Chapter 2 Assemble Smart Car
If you have any concerns, please feel free to contact us via support@freenove.com
You can refer to this video: https://youtu.be/G3Q8xNatXgM
Motor, Wheel and Servo arm
Installation steps：

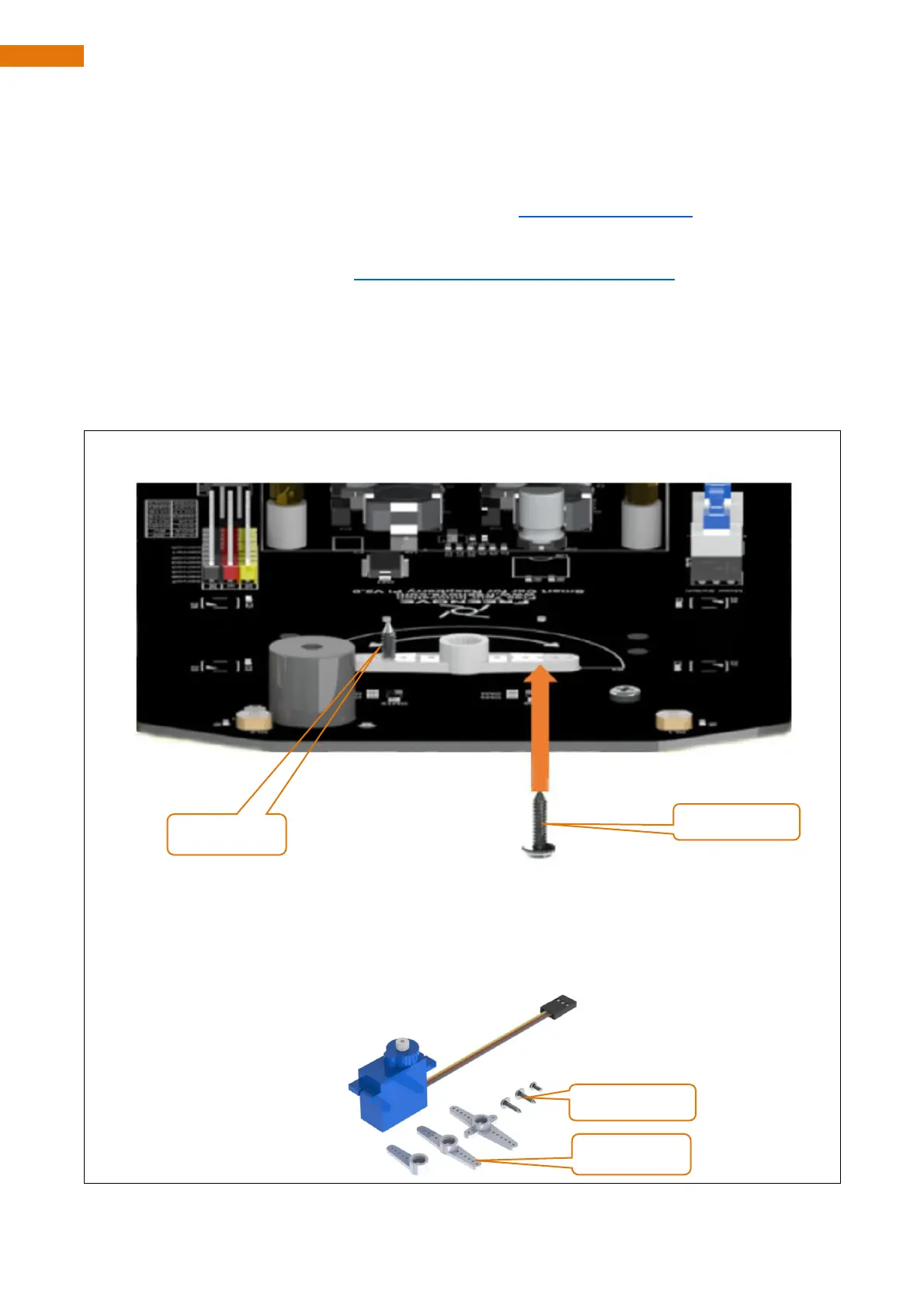

Step 0
Place the Rocker arm on the smart car board in accordance with its silkscreen printing. Use two M2.5*8
screws to install it to smart car board.
There are two servo packages. Each package contains one servo, three rocker arms, one M2*4 screw and
two M2.5*8 screws, as shown below:
Screw M2.5*8
Servo arm
Screw M2.5*8
Rocker arm
