Chapter 2 Assemble Smart Car

www.freenove.com █

Infrared line tracking module

Step 1

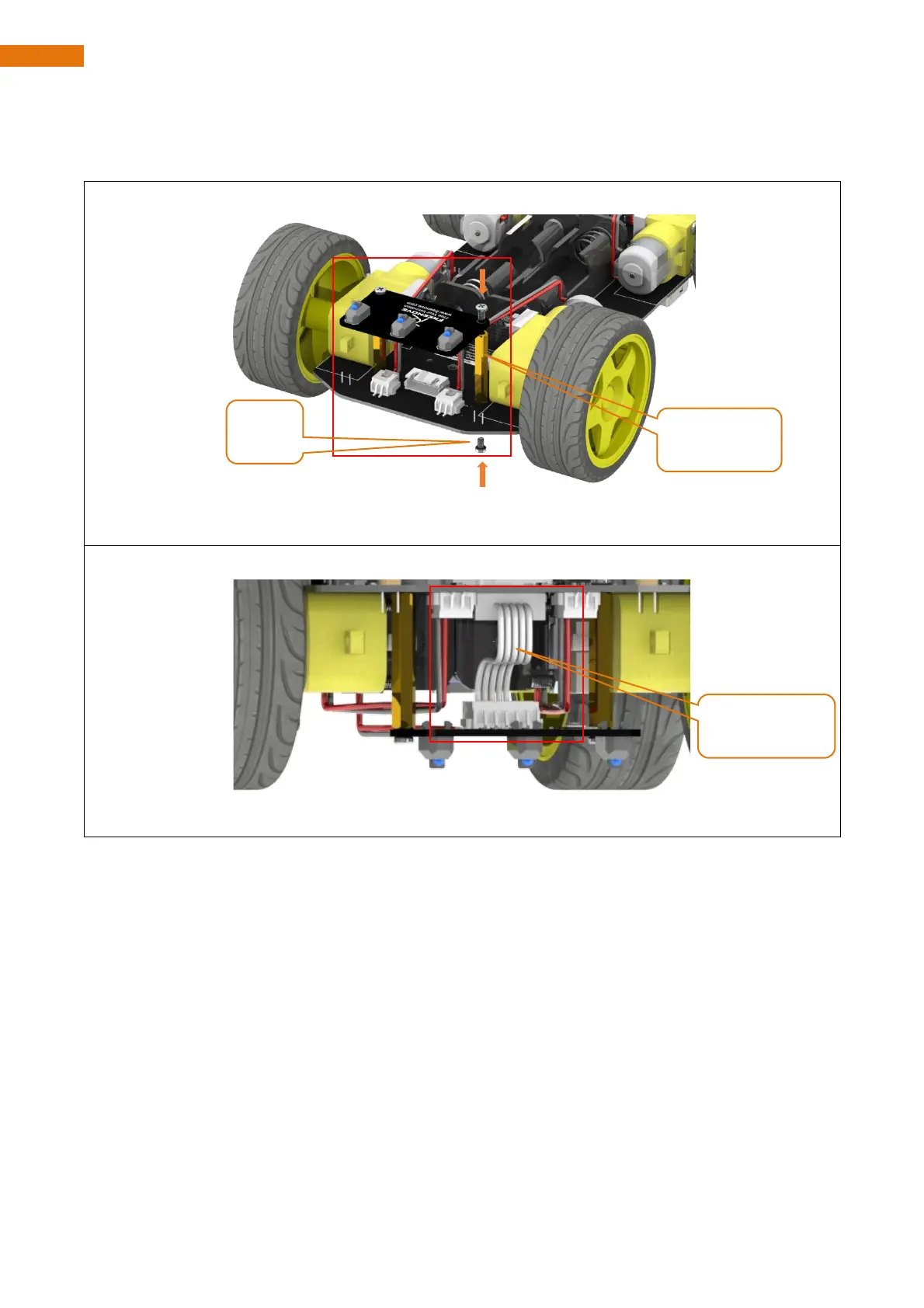

First install two M3*30 standoffs on smart car board with M3*6 screws. Then install line tracking module on

standoffs with M3*6 screws.

Step 2

Connect line tracking module to smart car board with XH-2.54-5Pin cable.

M3*30

Standoff

M3*6

Screw

Cable

XH-2.54-5Pin
