to lubricate until grease exits both ends of the
bushing. If the pin will not accept lubricant, re-
move the pin and clean the lubrication channels
where lubricant may have hardened. Remove the
safety stands and lower the vehicle after lubrica-
tion is complete.
09/15/95
f320423
1
4
3
2

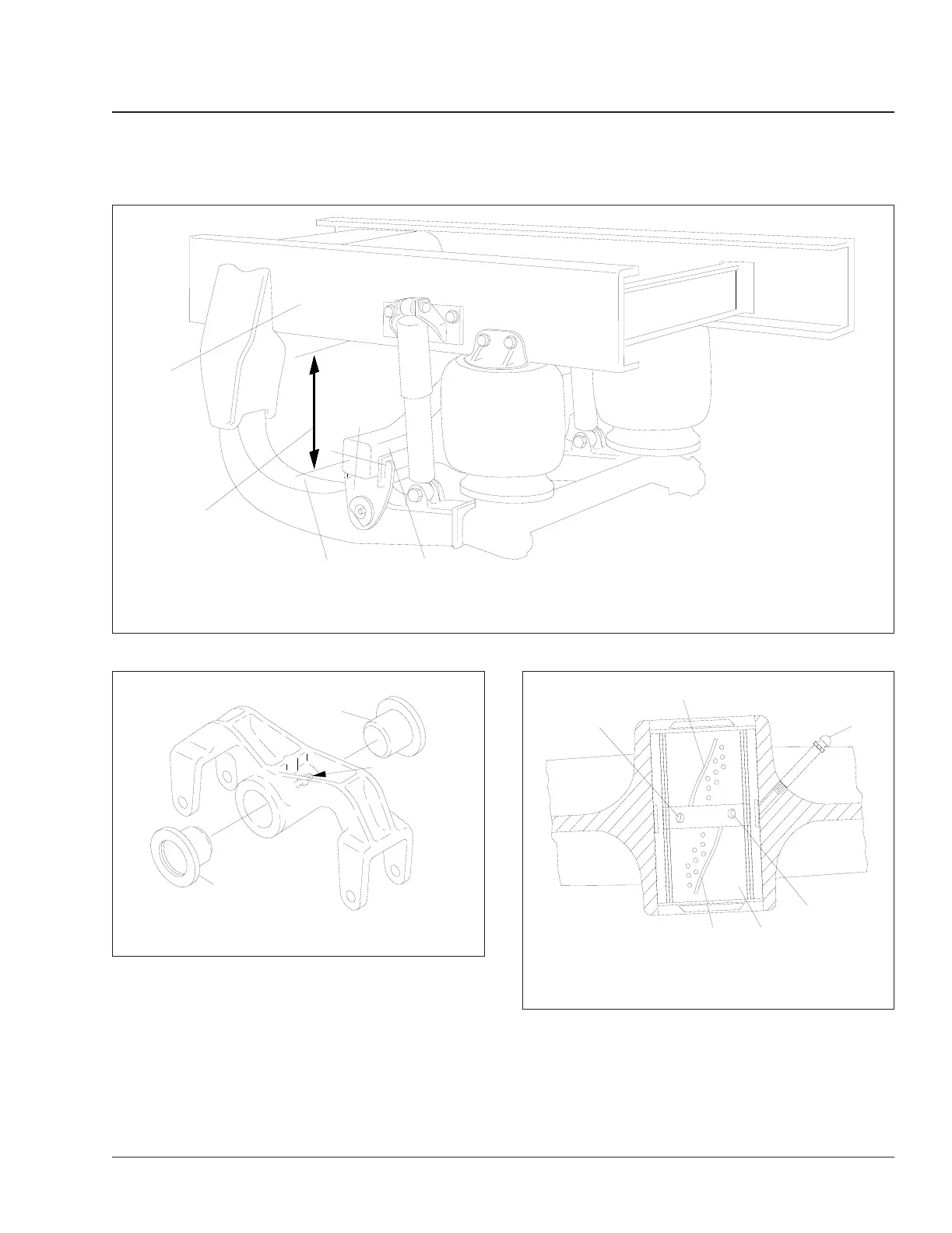

1. Frame Rail
2. Axle Housing
3. Axle Centerline
4. Suspension Ride Height
Fig. 14, Neway Ride Height Inspection
320020a
05/27/93
1
1
A
A. Lubricate here.
1. Cap-and-Tube Assembly Bushing
Fig. 15, Equalizer Assembly Lubrication
09/15/95
f320424
1
2
2
3
4
4
1. Bronze Bushing
2. Lubrication Hole
3. Grease Fitting
4. Lubrication Groove
Fig. 16, Hendrickson RT2 and RTE2 Series Bushing
Lubrication
Suspension 32
Century Class Trucks Maintenance Manual, January 2016 32/9
