Neway
No lubrication is required on Neway rear suspen-
sions.
Reyco
No lubrication is required on Reyco rear suspen-
sions.
32–03 Suspension U-Bolt
Torque Check
CAUTION
Failure to retorque the U-bolt nuts could result in
spring breakage and abnormal tire wear.
1. Park the vehicle on a flat surface and apply the
parking brakes. Chock the tires to prevent the
vehicle from moving.
2. Check the U-bolt high nut torque in a diagonal
pattern. Set a click-type torque wrench to the
highest torque value for the fastener being
checked. See
Table 1 for U-bolt torque specifica-
tions. Turn the wrench in a clockwise motion
(looking up) until the torque wrench clicks.
Remove the chocks.
Spring Assembly U-Bolt High Nut Torque Values
*
Size Torque: lbf·ft (N·m)
5/8–18
Stage 1: Hand Tighten
Stage 2: 60 (81)
Stage 3: 200 (271)
Stage 4: 180 to 230 (245 to 313)
3/4–16
Stage 1: Hand Tighten
Stage 2: 60 (81)
Stage 3: 200 (271)
Stage 4: 270 to 330 (367 to 449)
7/8–14
Stage 1: Hand Tighten
Stage 2: 60 (81)
Stage 3: 200 (271)
Stage 4: 420 to 500 (571 to 680)
Spring Assembly U-Bolt High Nut Torque Values
*
Size Torque: lbf·ft (N·m)
1–14
Stage 1: Hand tighten
Stage 2: 60 (81)
Stage 3: 200 (271)
Stage 4: 520 to 600 (707 to 816)
*
Tighten in a diagonal pattern as shown in Fig. 17.
Table 1, Spring Assembly U-Bolt High Nut Torque
Values
f32078310/05/2016
1
23
4

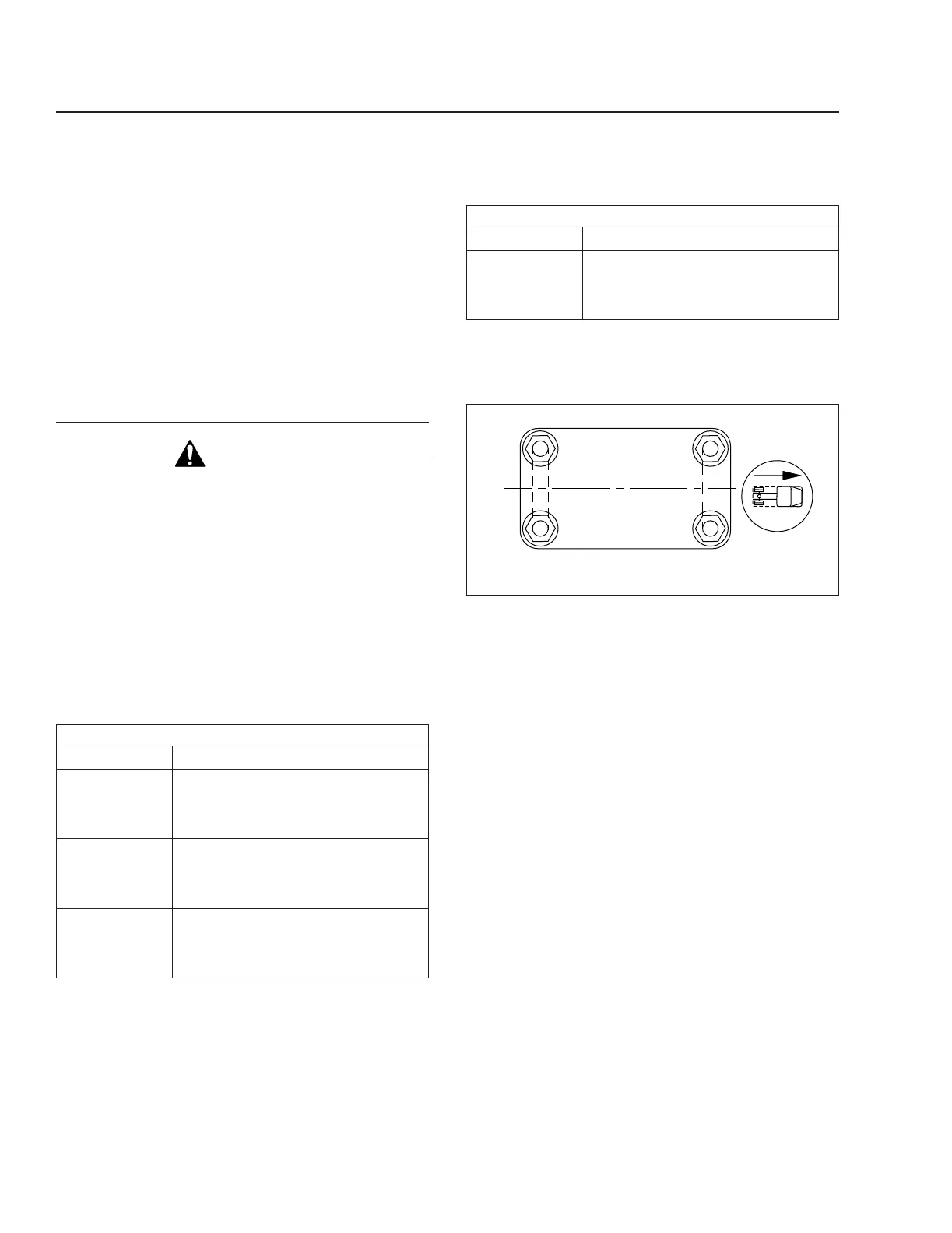

Fig. 17, Tightening Pattern for U-Bolt High Nuts
Suspension32
Century Class Trucks Maintenance Manual, January 201632/10
